Stober SD6 - Bottom Brake Resistor RB 5000

ID 442426.04 62WE KEEP THINGS MOVING
Technical data
4
Manual SD6

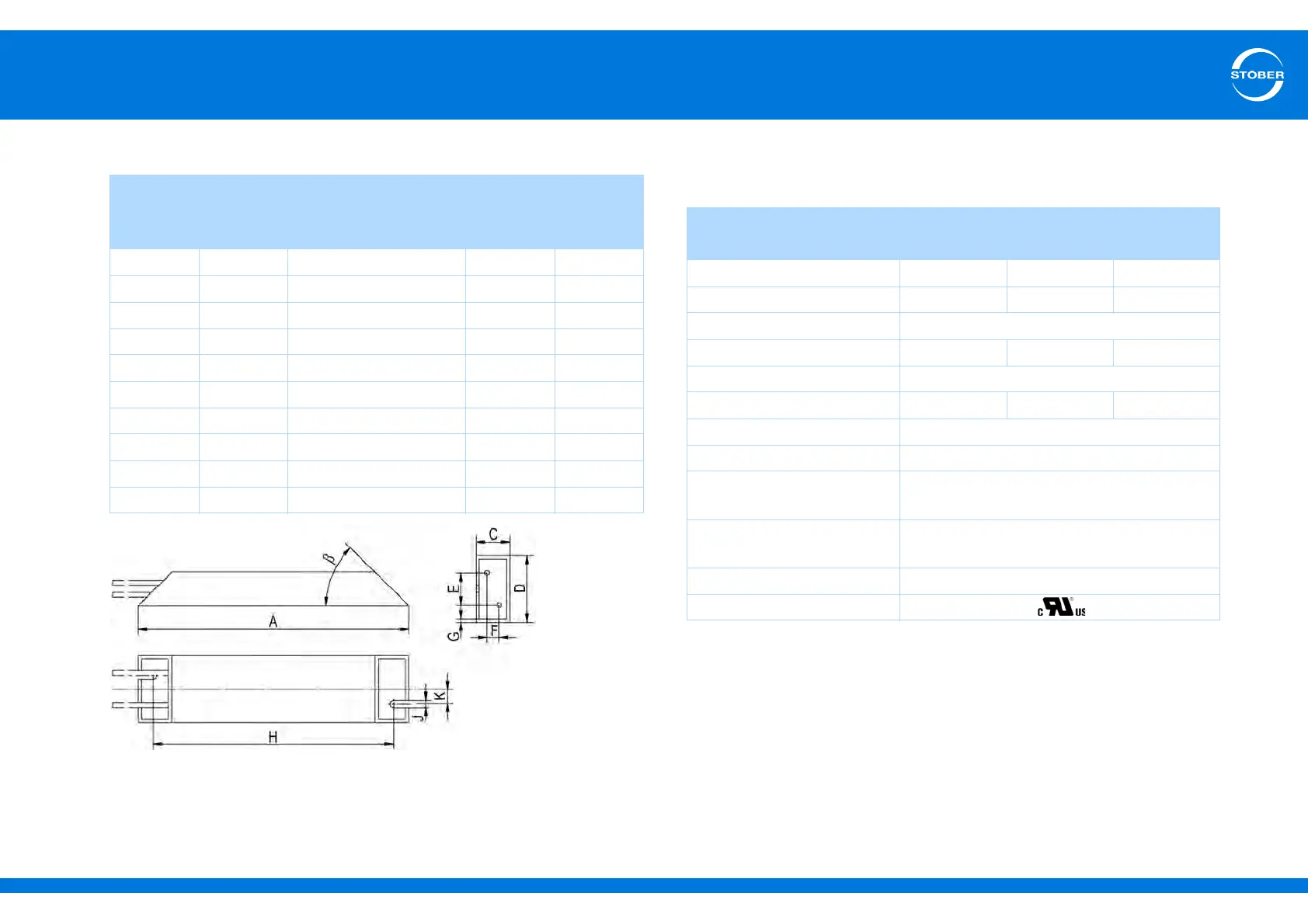

Dimensions [mm]
4.11.4 Bottom brake resistor RB 5000
Properties
Type GVADU
21020
GBADU
26530
GBADU
33530
GBADU
40530
ID no. 55441 55442 55444 55443 55449
A 210 265 335 405
H 192 246 316 386
C20 30 3030
D40 60 6060
E 18.2 28.8 28.8 28.8
F 6.2 10.8 10.8 10.8
G2 3 33
K2.5 4 44
J 4.3 5.3 5.3 5.3
 65° 73° 73° 73°
Type RB 5022 RB 5047 RB 5100
ID no. 45618 44966 44965
Resistance [Ω]2247100
Power [W] 100 60 60
Therm. time const. τ
th
[s] 8
Pulse power for < 1 s [kW] 1.5 1.0 1.0
U
max
[V] 800
Weight [g] Approx. 640 Approx. 460 Approx. 440
Cable design Radox
Cable length [mm] 250
Cable cross-section [AWG] 18/19
(0.82 mm²)
Maximum torque for studs
[Nm]
5
Protection class IP40
Test marks
