Synchronous servo motors of series ED/EK and EZ are equipped with circular
plugs as standard and can be connected to drive controllers with the following
power cables (the color specifications relate to the connection strands and are
only significant for the motor-internal wiring).

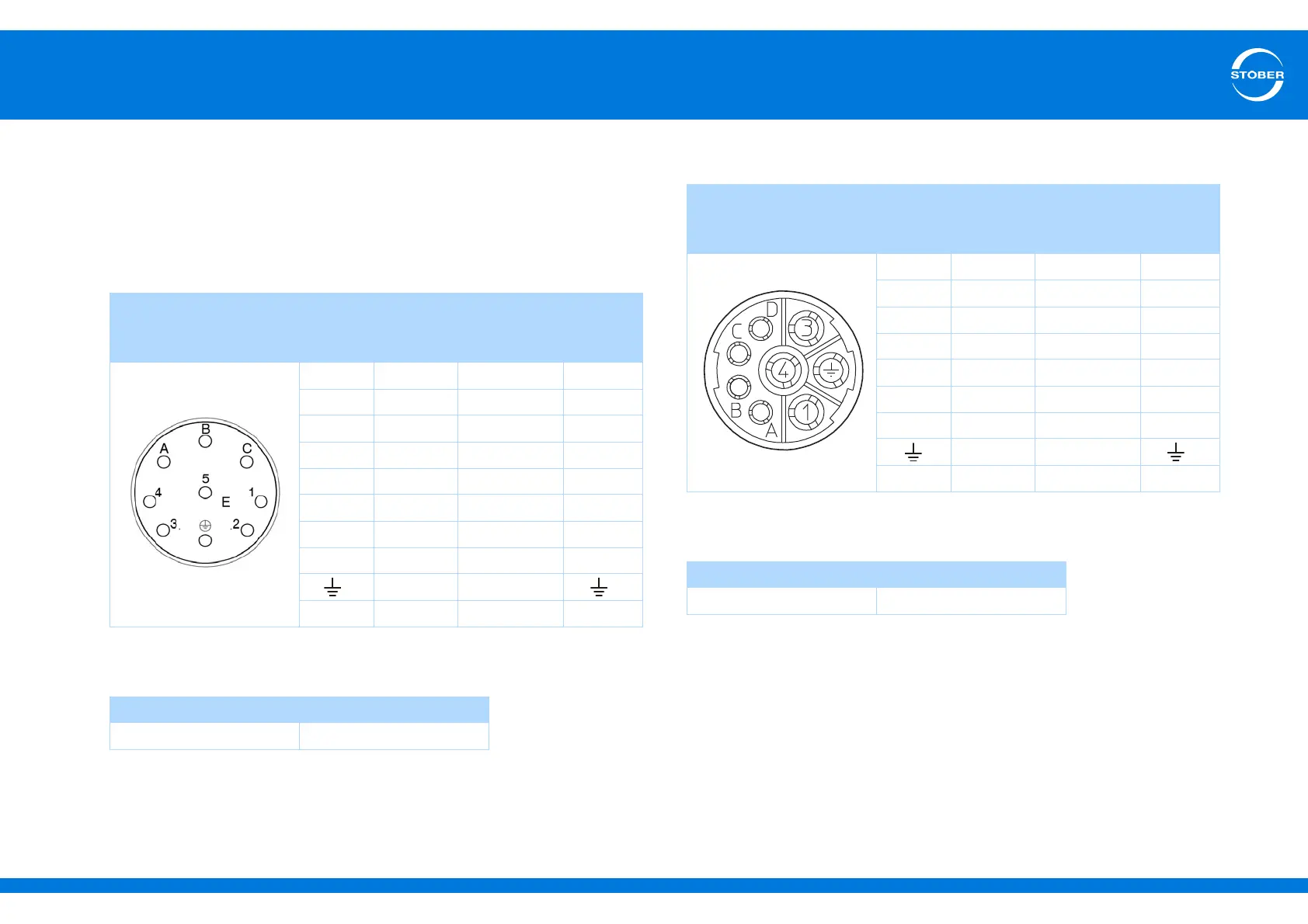

Power cable – connector size con.15
Bracket flange socket –
motor
Pin Signal Motor-
internal wire
colors
Wire no.
A1U1 BK 1
B 1V1 BU 2
C1W1 RD 3
1 1TP1/1K1 BKBN 7
2 1TP2/1K2 WHWH 8
31BD1 RD 5
41BD2 BK 6
5— — —
PE GNYE
Housing Shield — —
Dimensions – connector size con.15
Length [mm] Diameter [mm]
42 18.7
Power cable – connector size con.23
Bracket flange socket –
motor
Pin Signal Motor-
internal
wire colors
Wire no.
11U1 BK 1
31V1 RD 2
41W1 BU 3
A1BD1 RD 5
B1BD2 BK 6
C1TP1/1K1BKBN 7
D1TP2/1K2WHWH 8
PE GNYE
Housing Shield — —
Dimensions – connector size con.23
Length [mm] Diameter [mm]
78 26
