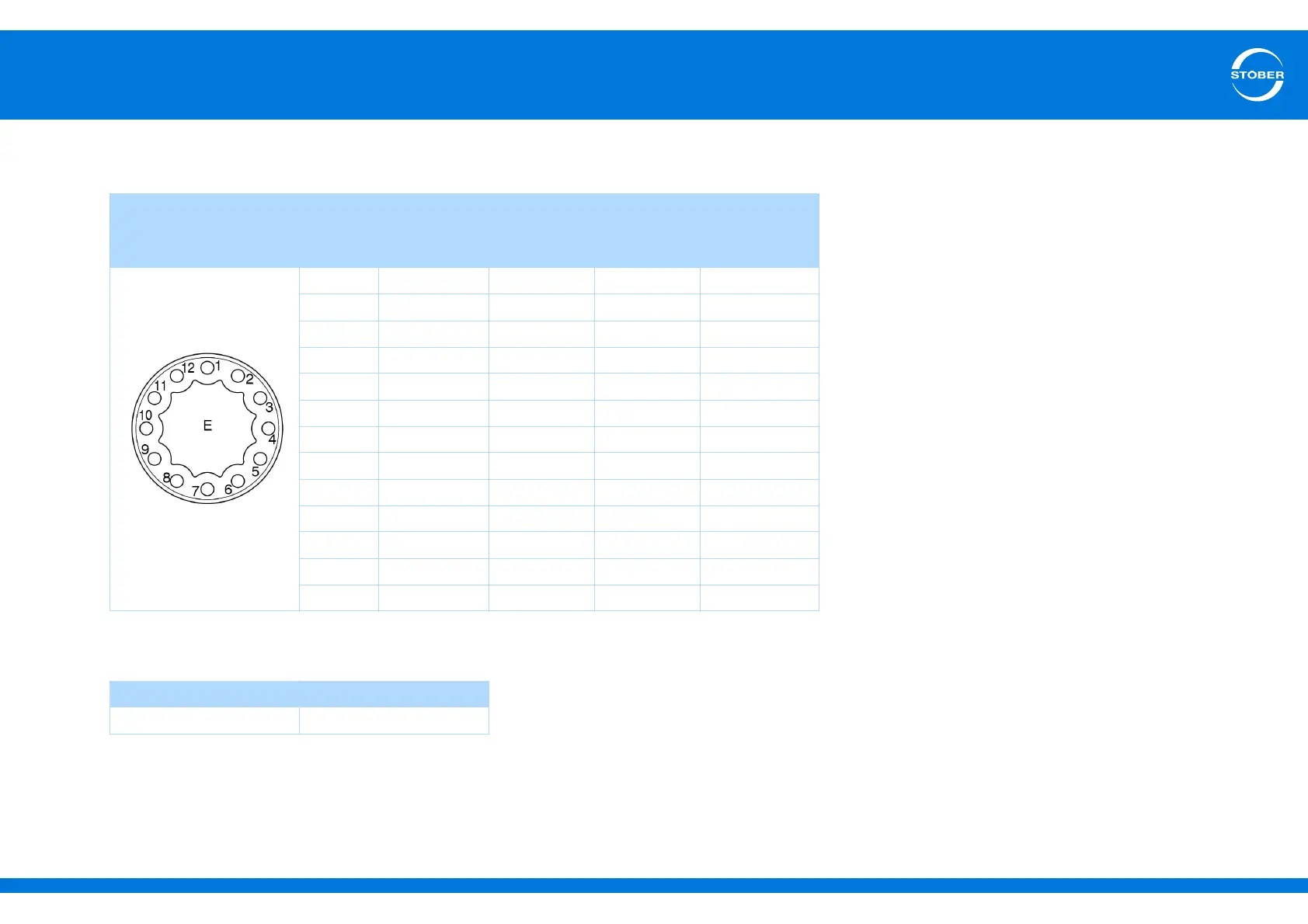

Connection

Manual SD6

Encoder cable – plug connector con.15

Motor Signal Wire colors D-sub (X140)

Angle flange socket Pin Motor-

internal

Encoder Pin

1S3 Cos+ BK YE 3

2 S1 Cos- RD GN 11

3 S4 Sin+ BU WH 1

4 S2 Sin- YE BN 9

5 — — — Do not connect

6 — — — Do not connect

7 R2 Ref+ YEWH GY 6

8 R1 Ref- RDWH PK 2

9— — — —

10 — — — —

11 — — — —

12 — — — —

Housing Shield

Dimensions – connector size con.15

Length [mm] Diameter [mm]

42 18.7
