Stober SD6 - Page 44

ID 442426.04 44WE KEEP THINGS MOVING
Technical data
4
Manual SD6

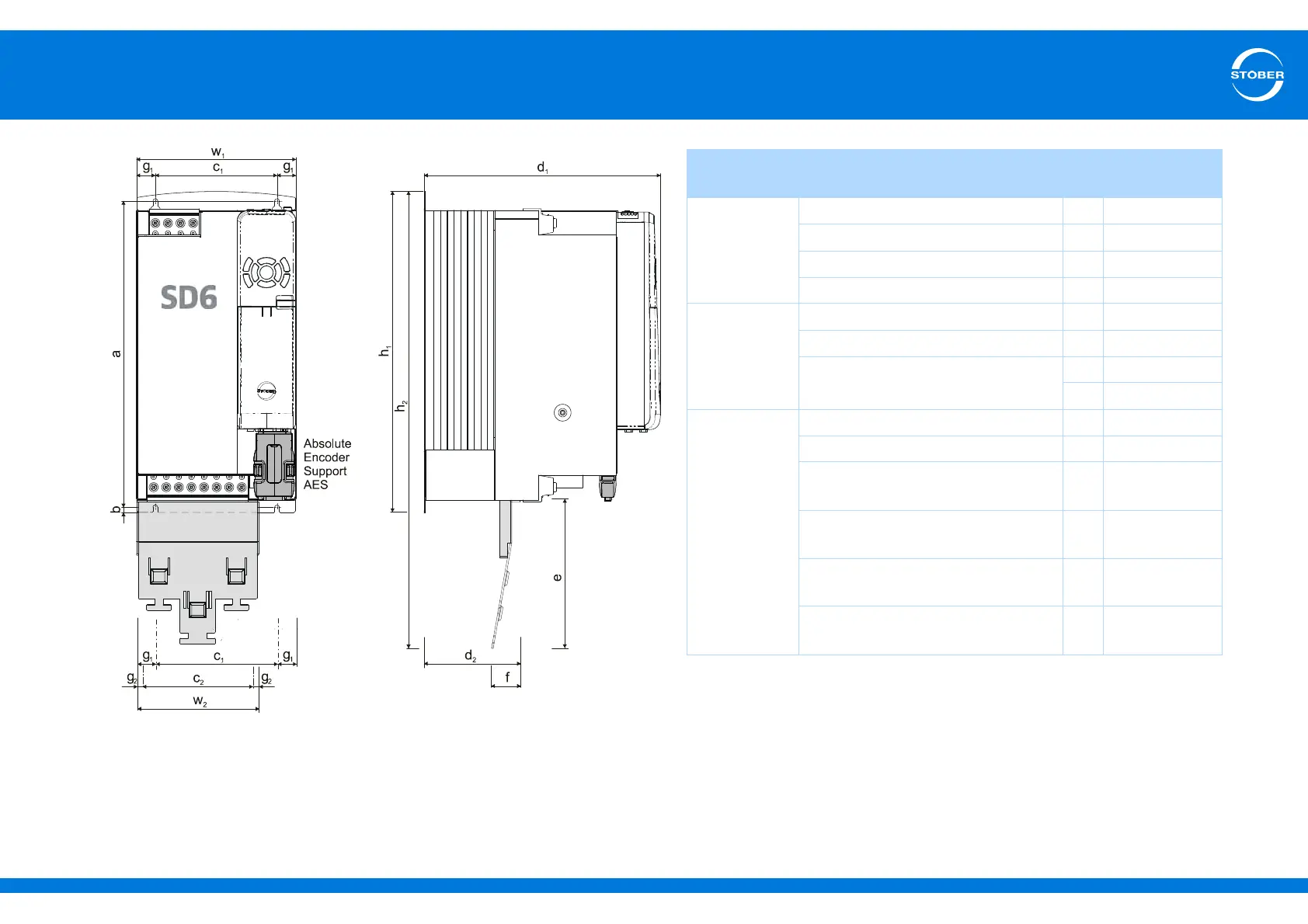

Dimensions
[mm]
Size 3
Drive
controller
Height h
1
382.5
Height incl. EMC shroud h
2
540
Width w
1
190
Depth d
1
305
EMC shroud Height e 174
Width w
2
147
Depth f 34
d
2
113
Fastening 
holes
Vertical distance a 365+2
Vertical distance from bottom edge b 6
Horizontal distance from the
fastening holes of the drive controller
c
1
150+0.2/-0.2
Horizontal distance from the side
edge of the drive controller
g
1
20
Horizontal distance from the
fastening holes of the EMC shroud
c
2
132
Horizontal distance from the side
edge of the EMC shroud
g
2
7.5
