Technical data
4
Manual SD6

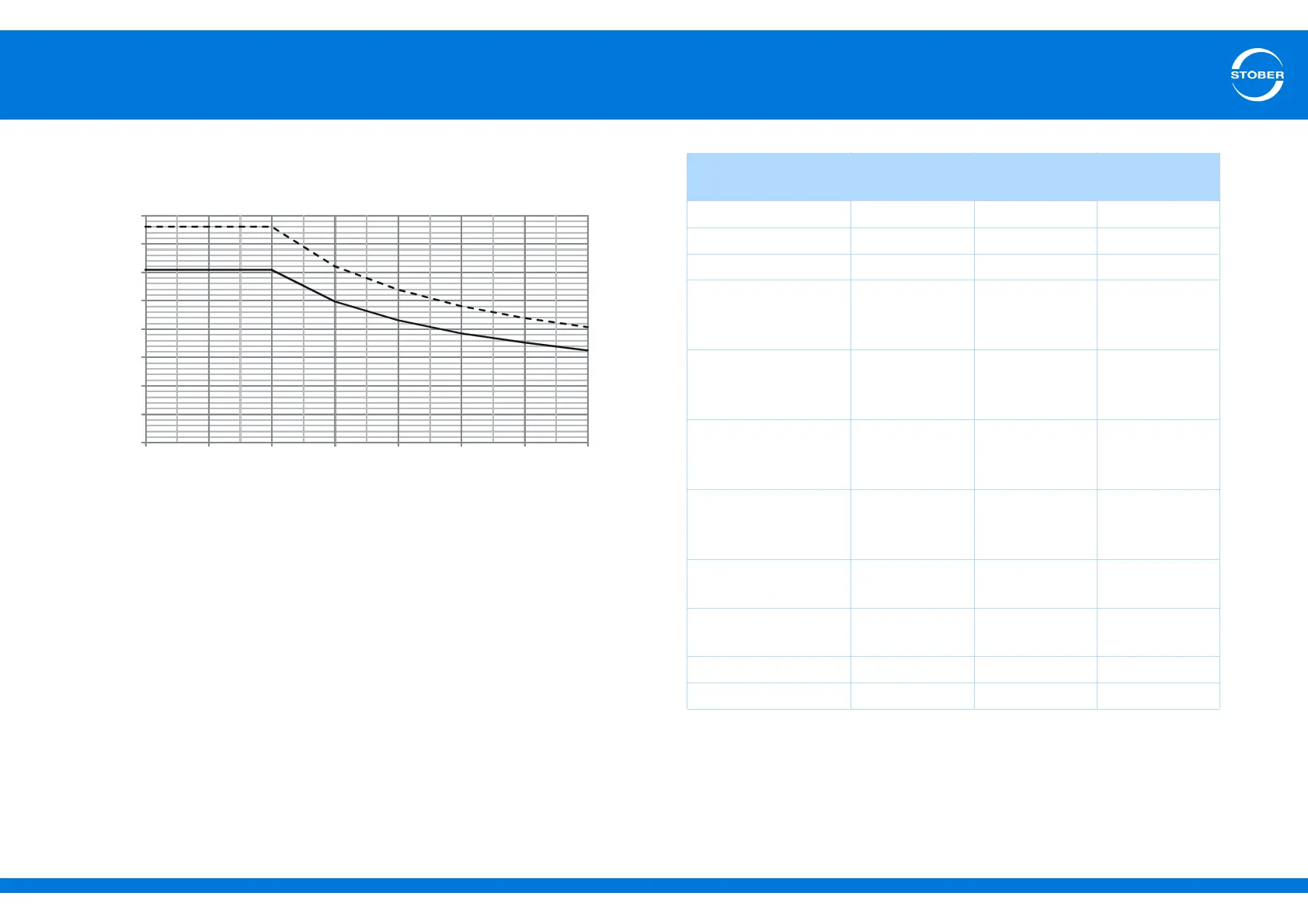

Derating TEP4020-0RS41
1 Cycle frequency 4 kHz
2 Cycle frequency 8 kHz
0
5
10
15
20
25
30
35
40
0 100200300400500600700
1
2
I
N
[A]
f [Hz]
Dimensions TEP3720-
0ES41
TEP3820-
0CS41
TEP4020-
0RS41
Height h [mm] Max. 153 Max. 153 Max. 180
Width w [mm] 178 178 219
Depth d [mm] 73 88 119
Vertical distance –
fastening holes
a1 [mm]
166 166 201
Vertical distance –
fastening holes
a2 [mm]
113 113 136
Horizontal distance –
fastening holes
b1 [mm]
53 68 89
Horizontal distance –
fastening holes
b2 [mm]
49 64 76
Drill holes – depth
[mm]
5.8 5.8 7
Drill holes – width 
f [mm]
11 11 13
Screw connection – M M5 M5 M6
Weight [kg] 2.9 5.9 8.8
