ID 442426.04 73WE KEEP THINGS MOVING

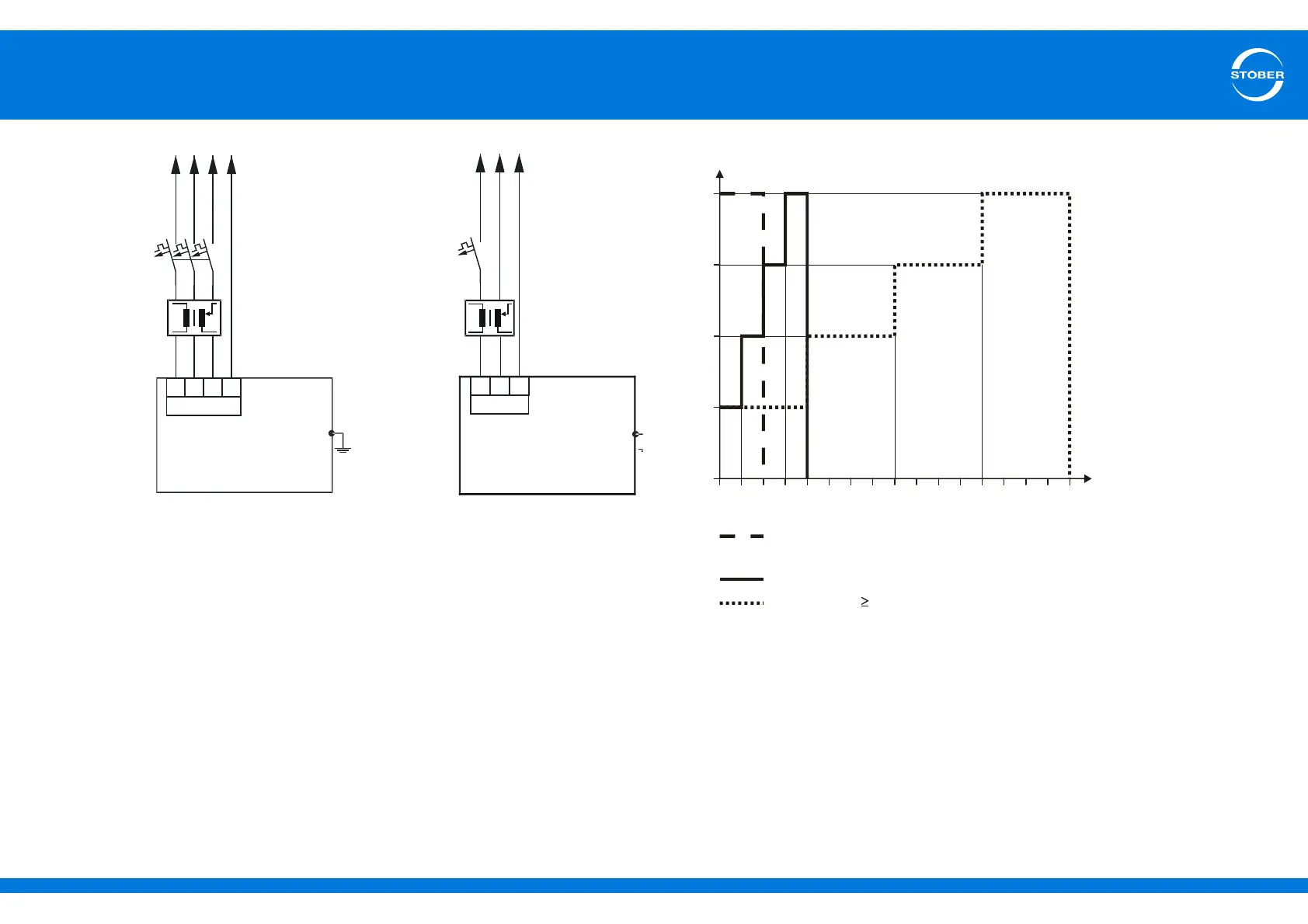

Transportation and storage
5
Manual SD6
Legend
L1–L3 = lines 1 to 3
N = neutral conductor
PE = protective ground
F1 = fuse
T1 = variable transformer
A1 = drive controllers
X10
L1 L2
F1
L3 PE
L1 L2
L3
PE
A1
X10
L1
F1
PE
L1
NPE
A1
N
T1
T1
10.50
0
25
50
75
100
2468
Time [h]
Power voltage [%]
Storage time 1 - 2 years:
Before enabling, apply voltage for
one hour.
Storage time 2 - 3 years: Before enabling, form as per curve.
Storage time 3 years: Before enabling, form as per curve.
Storage time under 1 year: No action required.
