ID 442426.04 82WE KEEP THINGS MOVING
Installation
6
Manual SD6

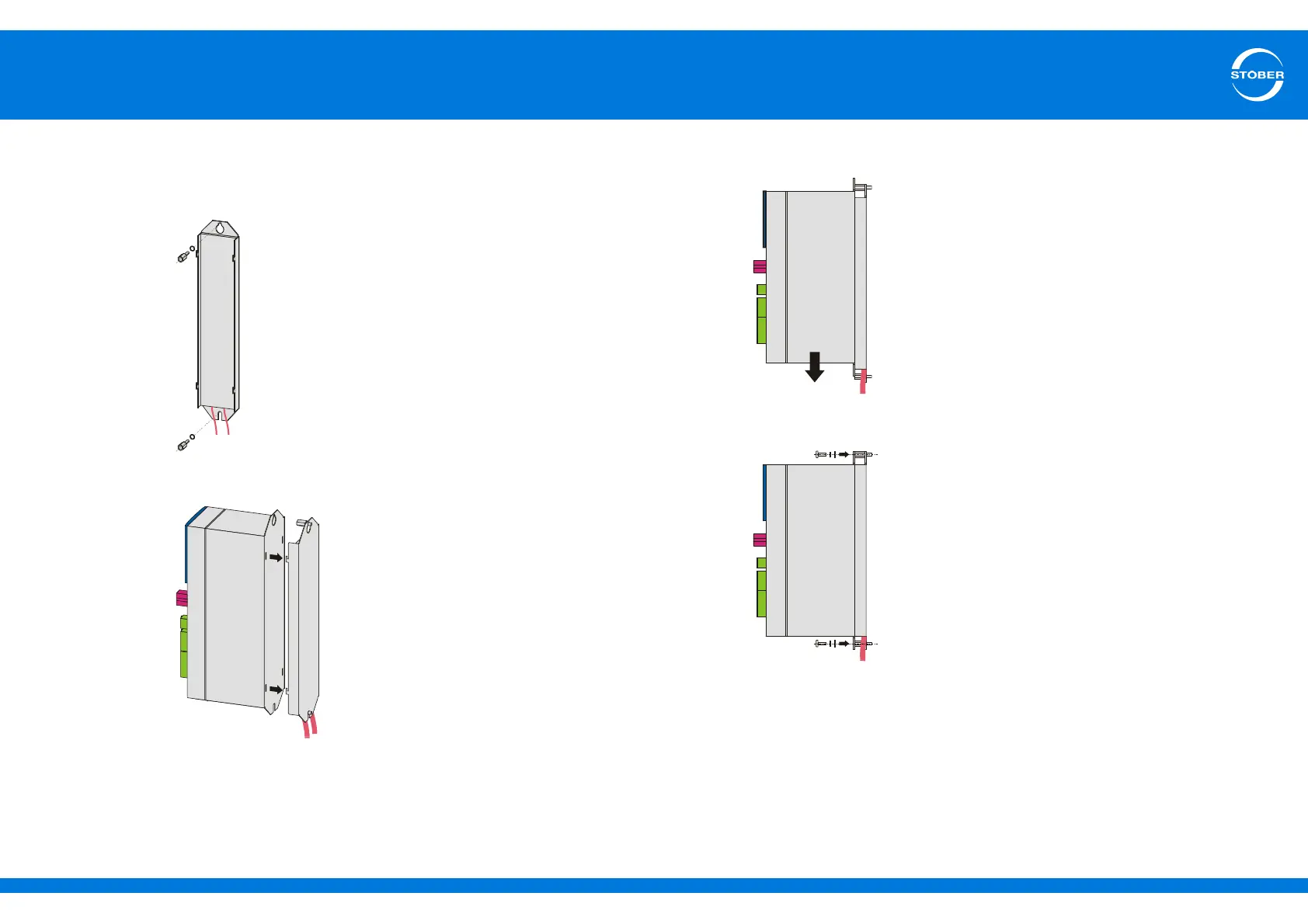

Installation of the submounting brake resistor
1. Attach the bottom brake resistor to the mounting plate with the studs:
2. Place the device on the guides:
3. Press the device down on the guides:
4. Attach the device to the studs with the screws and washers:
You have installed the submounting brake resistor.
5. Connect the braking resistor.
Refer to the terminal description for X30 (R+ and R-) for proper connection
of the cable, see section 7.3.9.
6. Parameterize the braking resistor in the drive controller.
