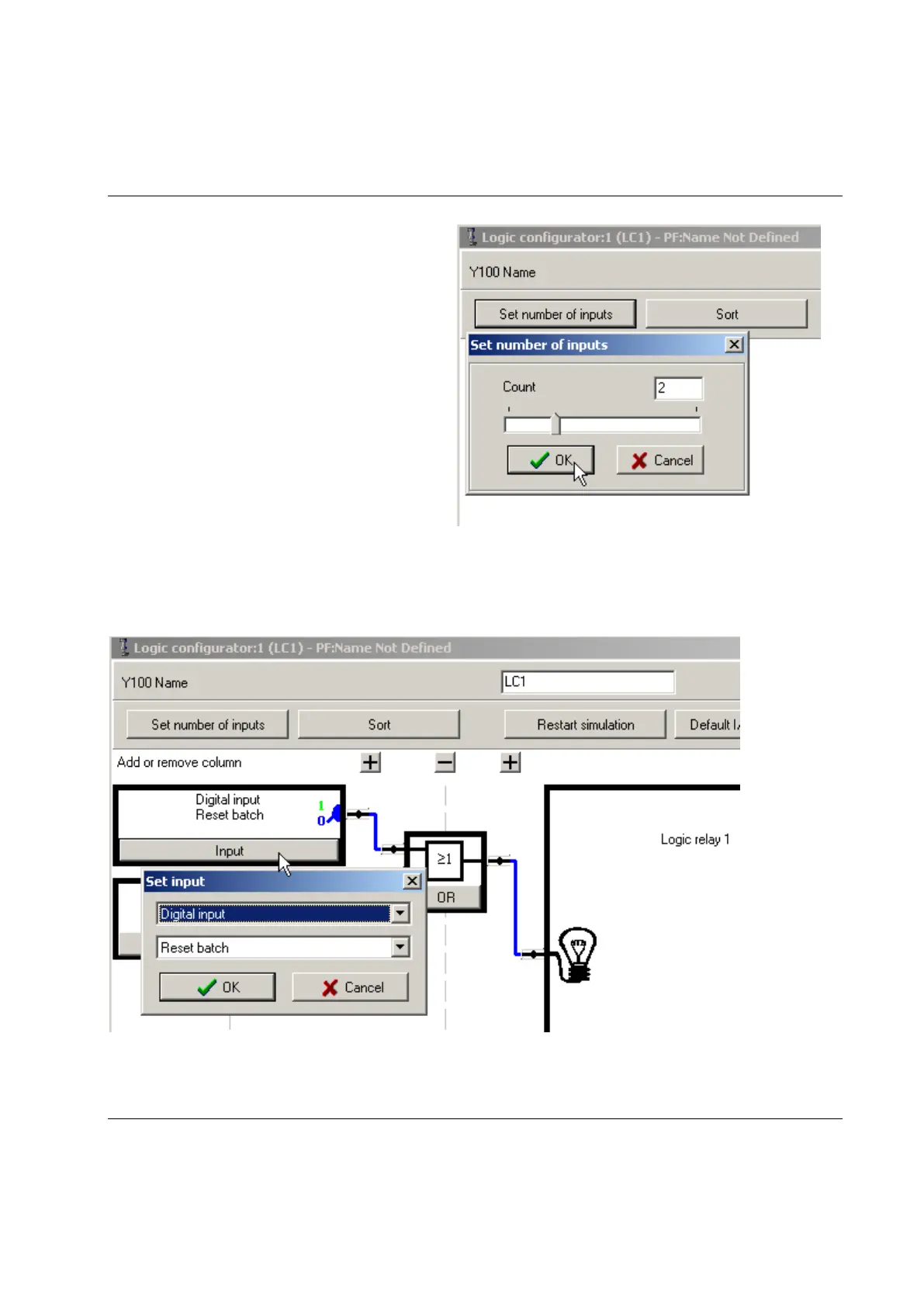

Move the slide bar (or type in the number
directly) to set an input count.
Click OK. A new window appears that shows the
layout of the Configurator sheet with the
selected number of inputs.
Click OK again to reach the setup window.
Now it is time to configure the inputs, outputs
and logical gates.
Let’s start with the inputs. Click on the Input key to select the input event. By selecting Digital input
from the first drop-down menu, the events tied to the inputs of the Power Focus can be reached.
If choosing Digital outputs, the list of events will contain the signals generated in the Power Focus.
