Next, let’s define what the output signal of the Configurator sheet should be used for.
If the output signal should be used as input to another Configurator sheet, or be put out directly on a
physical Relay, no action is required in this window. The output signal from the Configurator sheet is
automatically labeled “Logic Relay #”, where “#” is the number of the Configurator sheet. The signal
“Logic Relay #” is available in the drop-down menu of e.g. the Relay setup window under “Accessories”
in the PF Map.

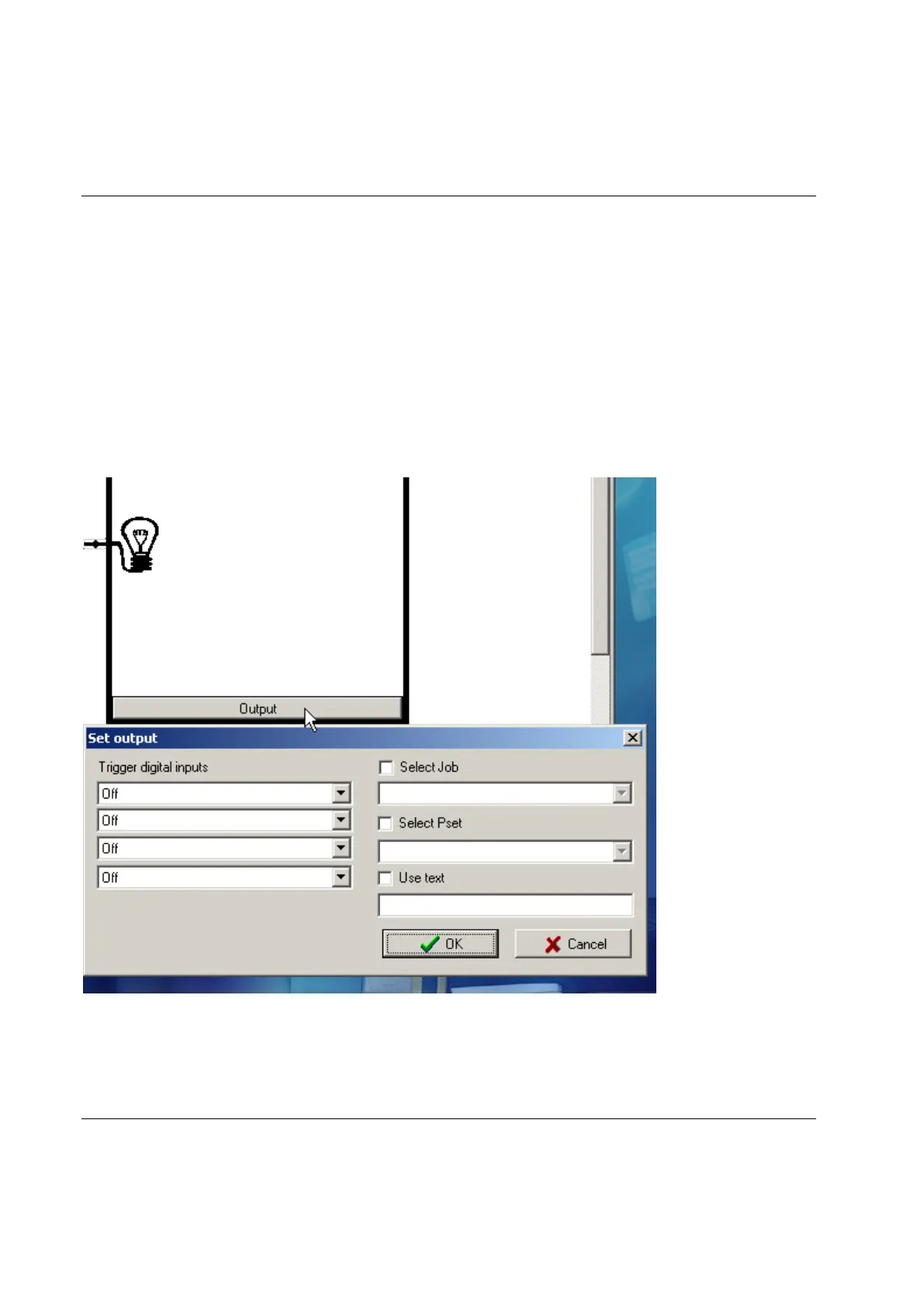

If the output of the Configurator sheet should be used for other purposes, click on the Output. Then select
up to four events under Trigger digital inputs, or one of the three quick choices (Select Job, Select Pset
and Use text).
Click OK when finished.
