Atlas Copco Power Focus 3000 User Manual

Logic Configurator
9836 3123 01 255 (428)
Now the logical grid remains to be set up.

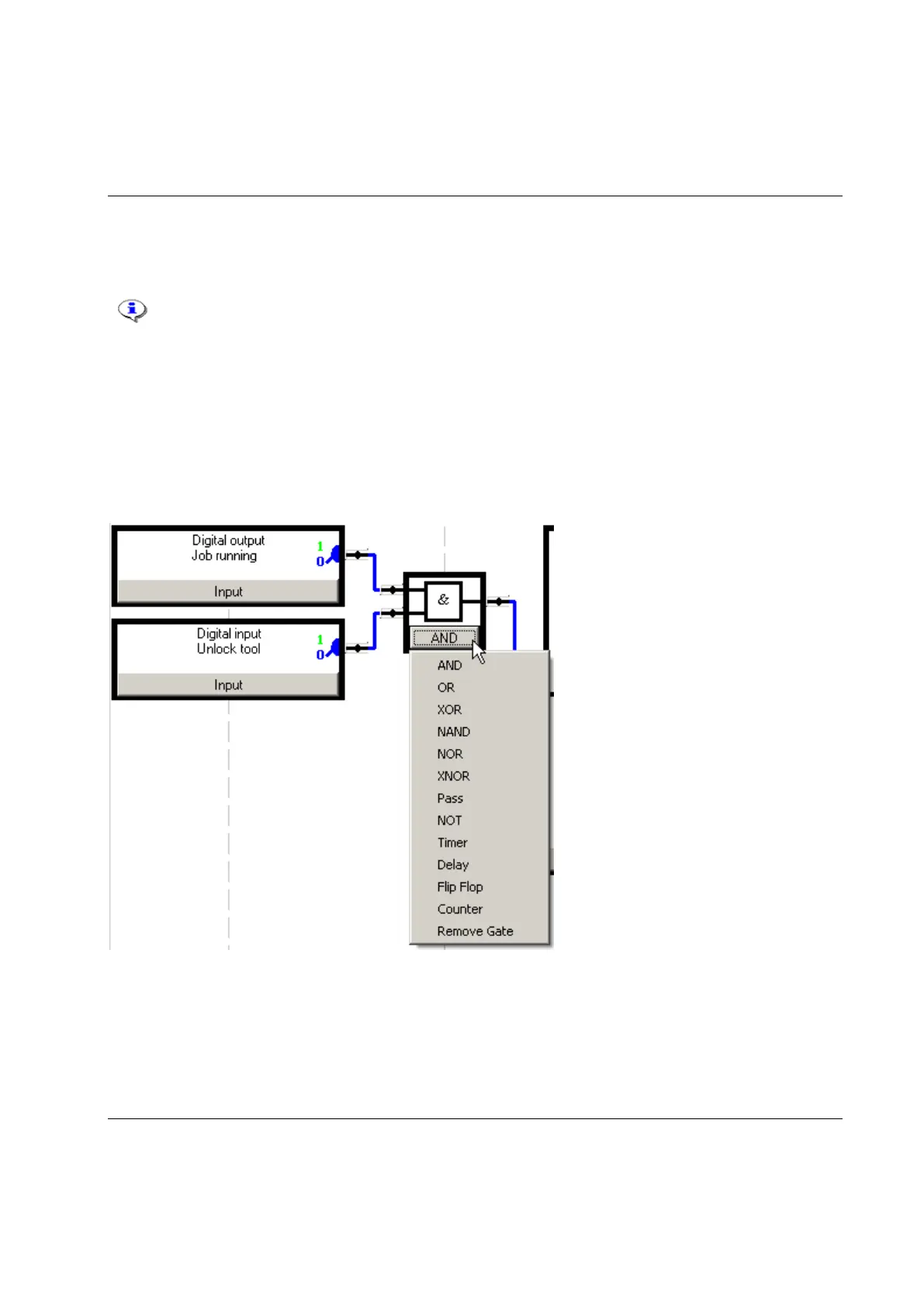

By clicking on the keys in the gate symbol, a drop-down menu showing the logic functions appear.
See table in section Logic gates for a description of the available gates (AND, OR, XOR,
NAND, NOR, XNOR).
See table in section Function blocks for a description of the available functions (Pass, NOT,
Timer, Delay, Flip Flop, Counter).
Select the gate and where applicable, the timer or counter value.
If the depth of the grid (right-to-left) needs to be increased for your functionality, click on the Plus icon to
insert a new level. To reduce the depth of the grid, click the corresponding Minus sign.
