106Service Manual – CS7010™ 24 - Electrical System

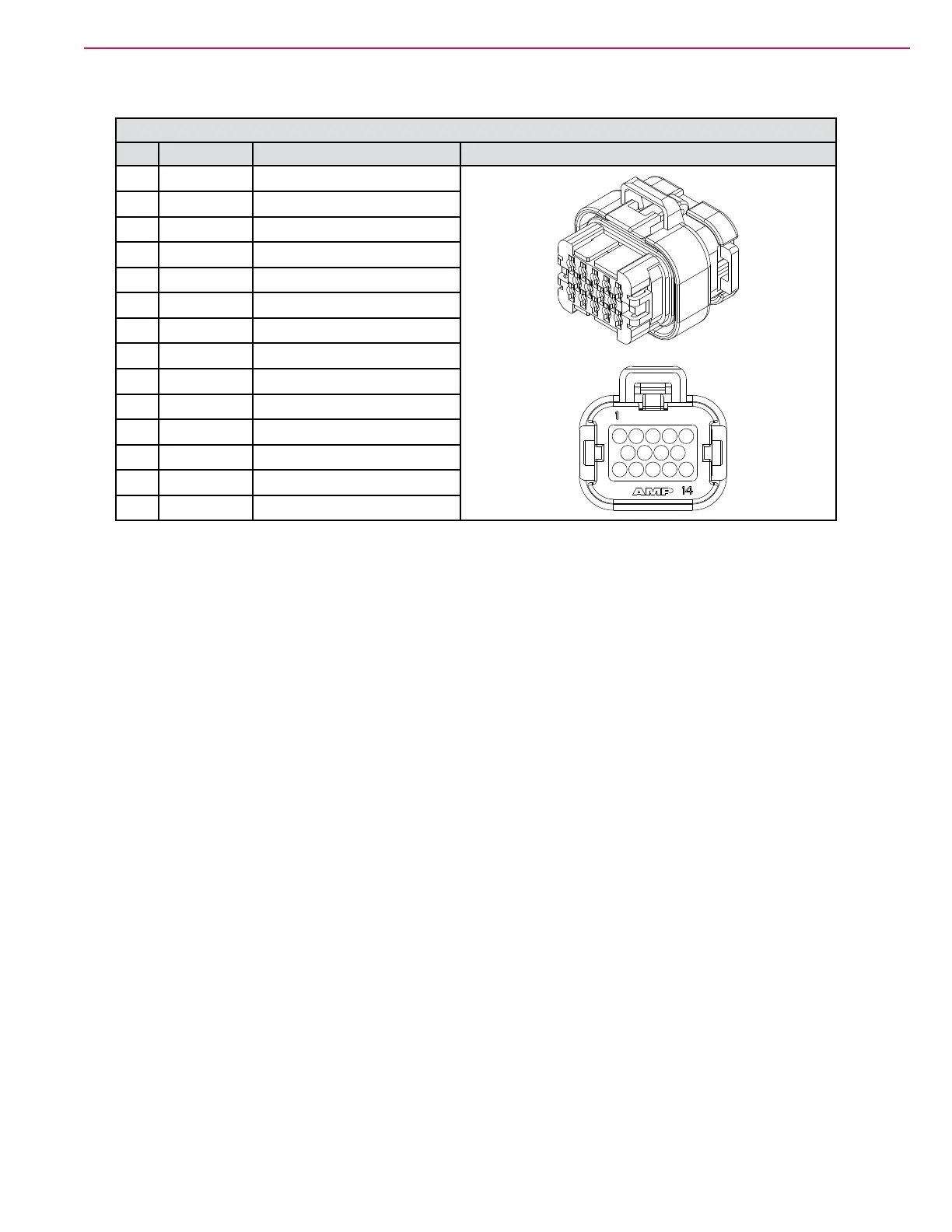

J4 Power Module #2

Pin Color Name

1 GRN-VIO

M17DeckActuatorMotor

2 BRN-GRN K3Coill

3 GRN-WHT

CAN1Low

4 YEL-WHT CAN 1 High

5 PNK-YEL Curtis Programmer

6 RED-GRY

M17DeckActuatorMotor

7 PNK-VIO Curtis Programmer

8 PNK-WHT Curtis Programmer

9 ORN KSI

10 RED-BRN M18 Side Broom Actuator

11 TAN-BLU M18 Side Broom Actuator

12 BLK Battery Negative

13 VIO-BLU M16 Squeegee Actuator

14 BRN-WHT M16 Squeegee Actuator
