Crescent CS7010 - J5 Drive Controller

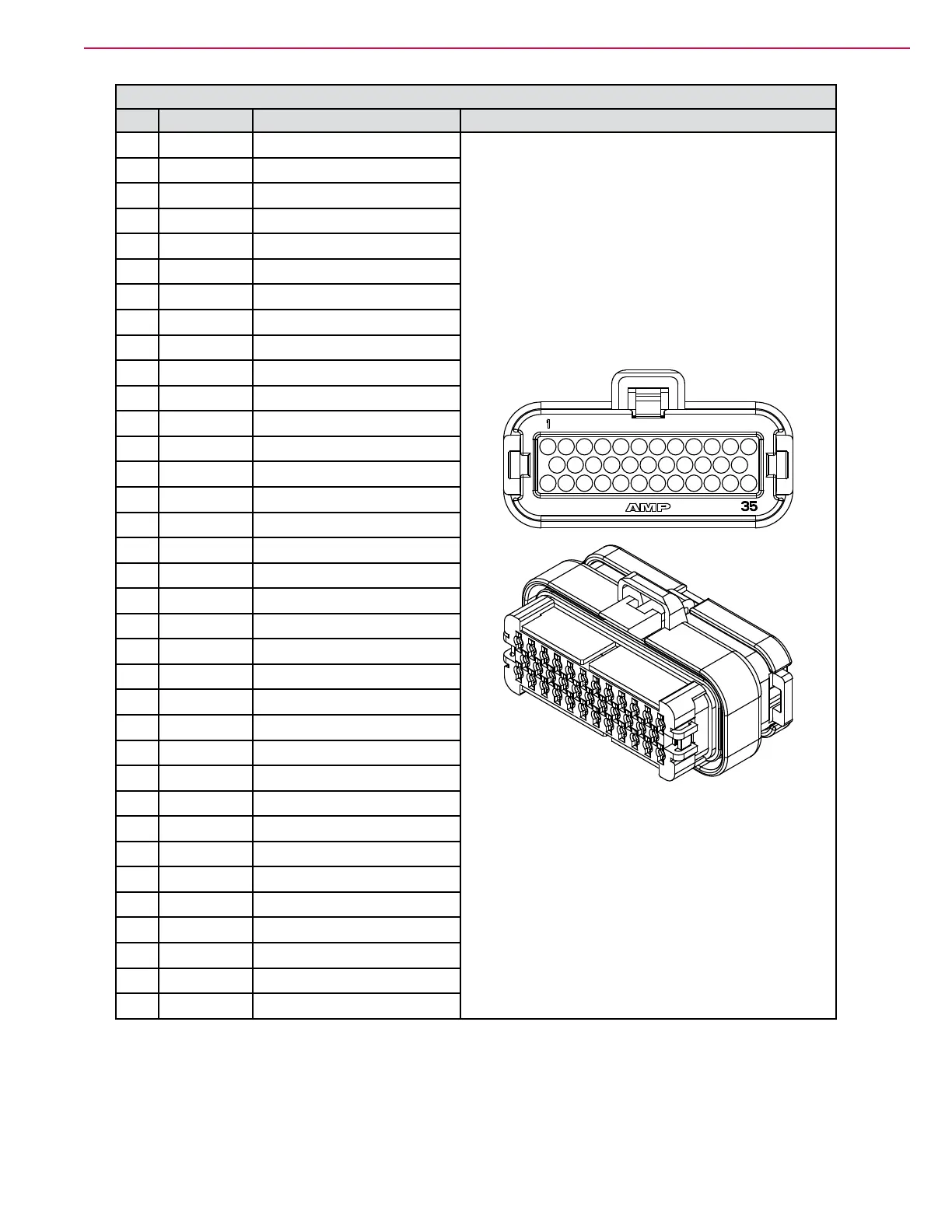

107Service Manual – CS7010™ 24 - Electrical System
J5 Drive Controller
Pin Color Name
1
2
3
ORN
KSI(ControlPower)Input
4
TAN-ORN
K4 Coil Control: PWM Bat-
5
PNK-RED
11V out commutator
6
BLK-PNK
Sensor ground out
7
TAN-BLK
Commutator 1 input
8
PNK-BLU
Commutator 2 input
9
10
11
12
PNK
SeatSwitchinput
13
14
15
16
17
ORN-GRN
Steering Ready
18
19
GRY-ORN
E-StopSwitchinput
20
BRN-RED
R4 Foot Pedal Throttle
21
GRN
CAN0Low
22
23
24
25
TAN-RED
Motor Temperature
26
27
28
ORN
KSIInput
29
VIO-GRN
UnswitchedBat+toK4coil
30
31
VIO-BLK
Bat- to throttle pot
32
WHT-BLK
5V to throttle pot
33
YEL
CAN 0 High
34
35
