Crescent CS7010 - X113 Hopper Harness 2; X112 Hopper Harness 1

109Service Manual – CS7010™ 24 - Electrical System

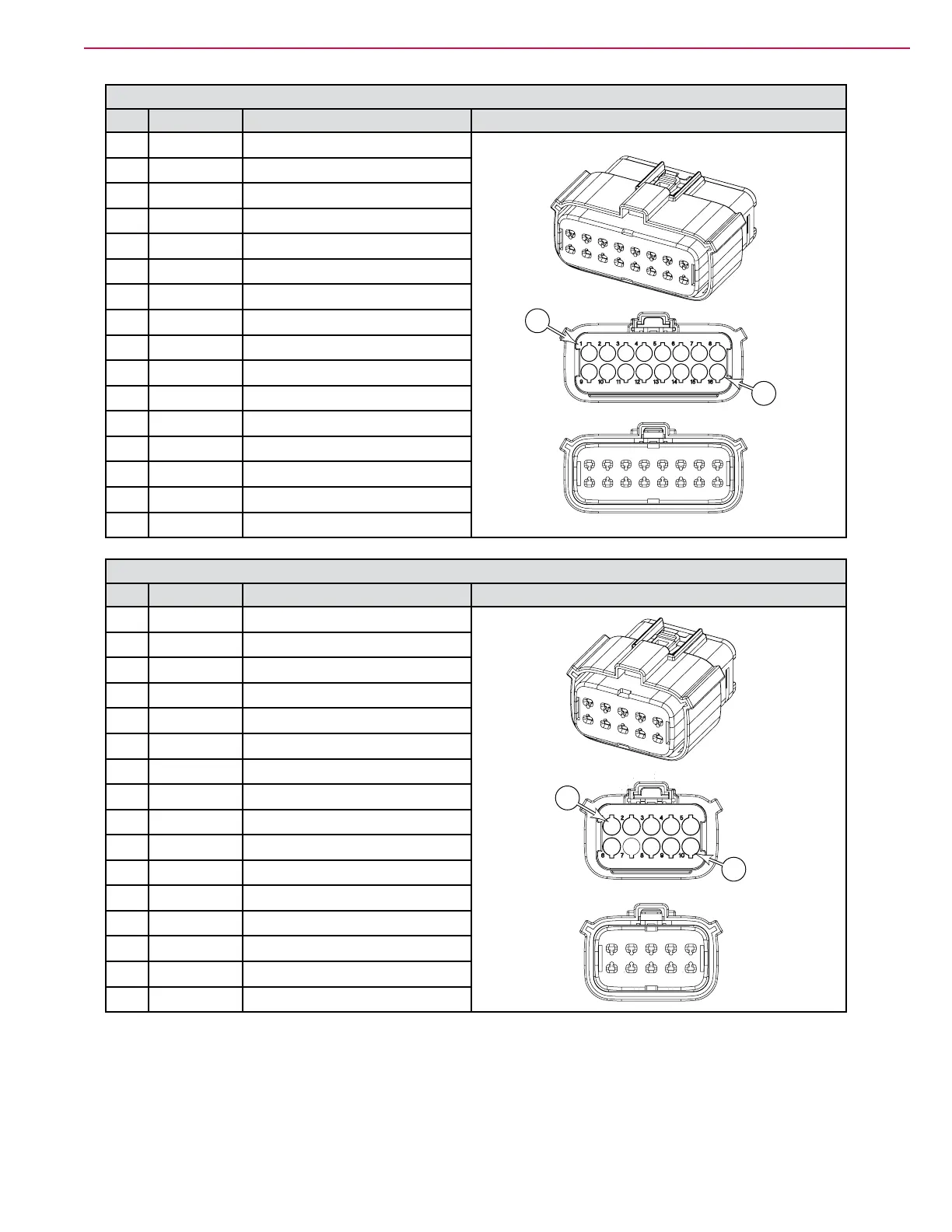

X113 Hopper Harness 2
Pin Color Name
1
VIO-WHT
TFD coil (positive)
1
16
2
3
ORN-GRN
KSI(KeySwitchInput)
4
ORN-GRN
Enable Drive output
5
RED-BLU
12Vpowertoresolver
6
BLK
Internalsensorground
7
VIO-GRY
Encoder 1A input
8
WHT-GRY
Encoder 1B input
9
10
BLK
Batt-ControlPower
11
BLK
Batt-tosteeringwheelsensor
12
13
YEL-BLK
K5 Relay Coil
14
15
ORN-RED
SW12RightTravellimitswitch
16
GRN-WHT
TFD encoder 1
X112 Hopper Harness 1
Pin Color Name
1
VIO-WHT
TFD coil (positive)
1
10
2
3
ORN-GRN
KSI(KeySwitchInput)
4
ORN-GRN
Enable Drive output
5
RED-BLU
12Vpowertoresolver
6
BLK
Internalsensorground
7
VIO-GRY
Encoder 1A input
8
WHT-GRY
Encoder 1B input
9
10
BLK
Batt-ControlPower
11
BLK
Batt-tosteeringwheelsensor
12
13
YEL-BLK
K5 Relay Coil
14
15
ORN-RED
SW12RightTravellimitswitch
16
GRN-WHT
TFD encoder 1
