Crescent CS7010 - X45 Engine Interface; X98 Steering Motor; X91;92 Wheel Drive Motor

110Service Manual – CS7010™ 24 - Electrical System

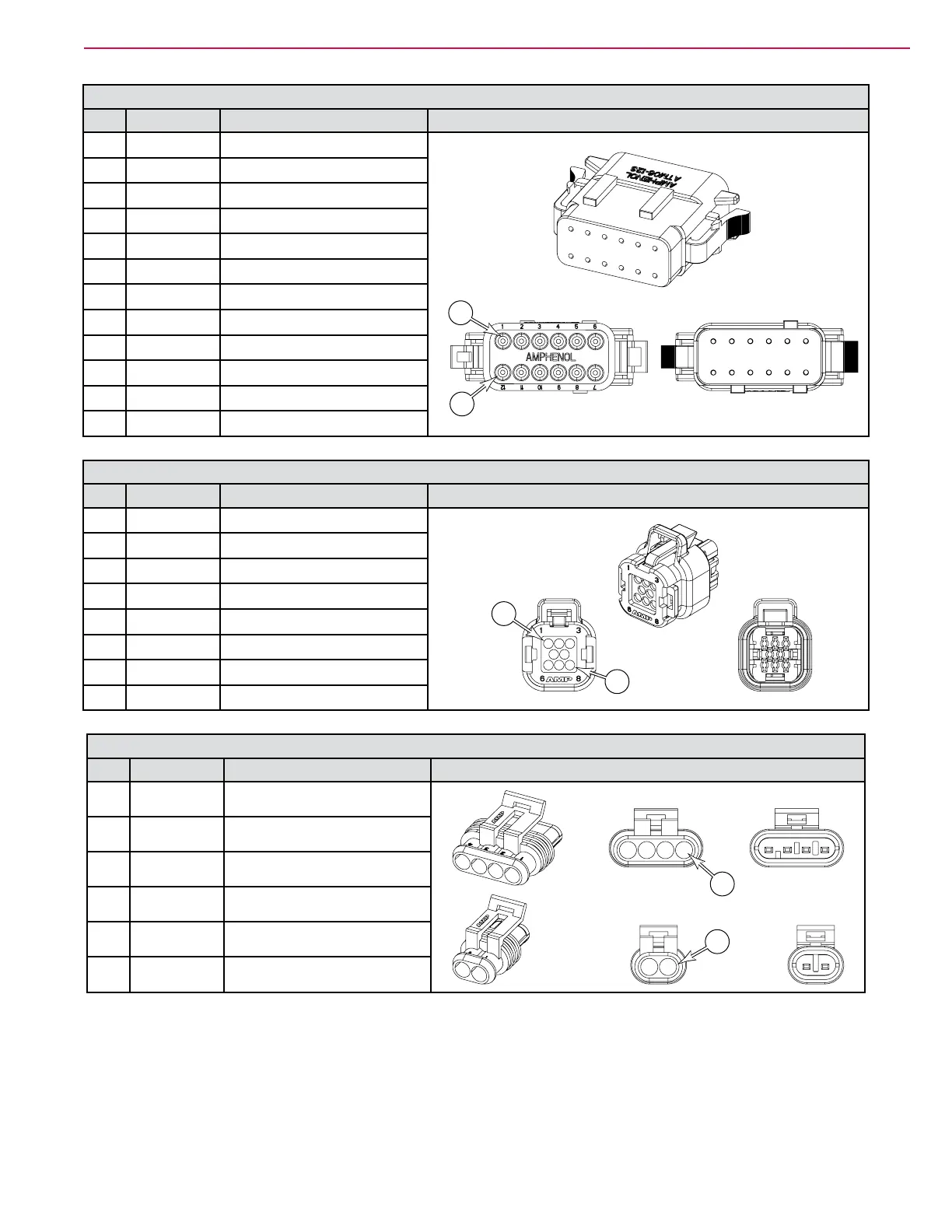

X45 Engine Interface
Pin Color Name
1 PINK Ignition
1
12
2 BLU-PNK Start
3 GRN-YEL Coolant temp
4 GRY Run signal
5 GRY-ORN Throttle 2
6 GRY-BLU Throttle 1
7 WHT-ORG Hydraulic clutch
8 YEL-RED
OilPressure
9 TAN-WHT Fuel level
10
11 ORN KSI
12 TAN-RED
CheckEngine
X98 Steering Motor
Pin Color Name
1 VIO-PNK Encoder 3B
1
8
2 WHT-PNK Encoder 3A
3 BLK B-
4 BLK B-
5 YEL-RED Temperature
6 VIO-GRY Encoder 1A
7 WHT-GRY Encoder 1B
8 RED-BLU +12V
X91/92 Wheel Drive Motor
Pin Color Name
1 PNK-RED
+11V
1
1
2 PNK-BLU Encoder 2
3 TAN-BLK Encoder 1
4 PNK-BLK B-
1 TAN-RED Temp Sensor
2 PNK-BLK B-
