111Service Manual – CS7010™ 24 - Electrical System

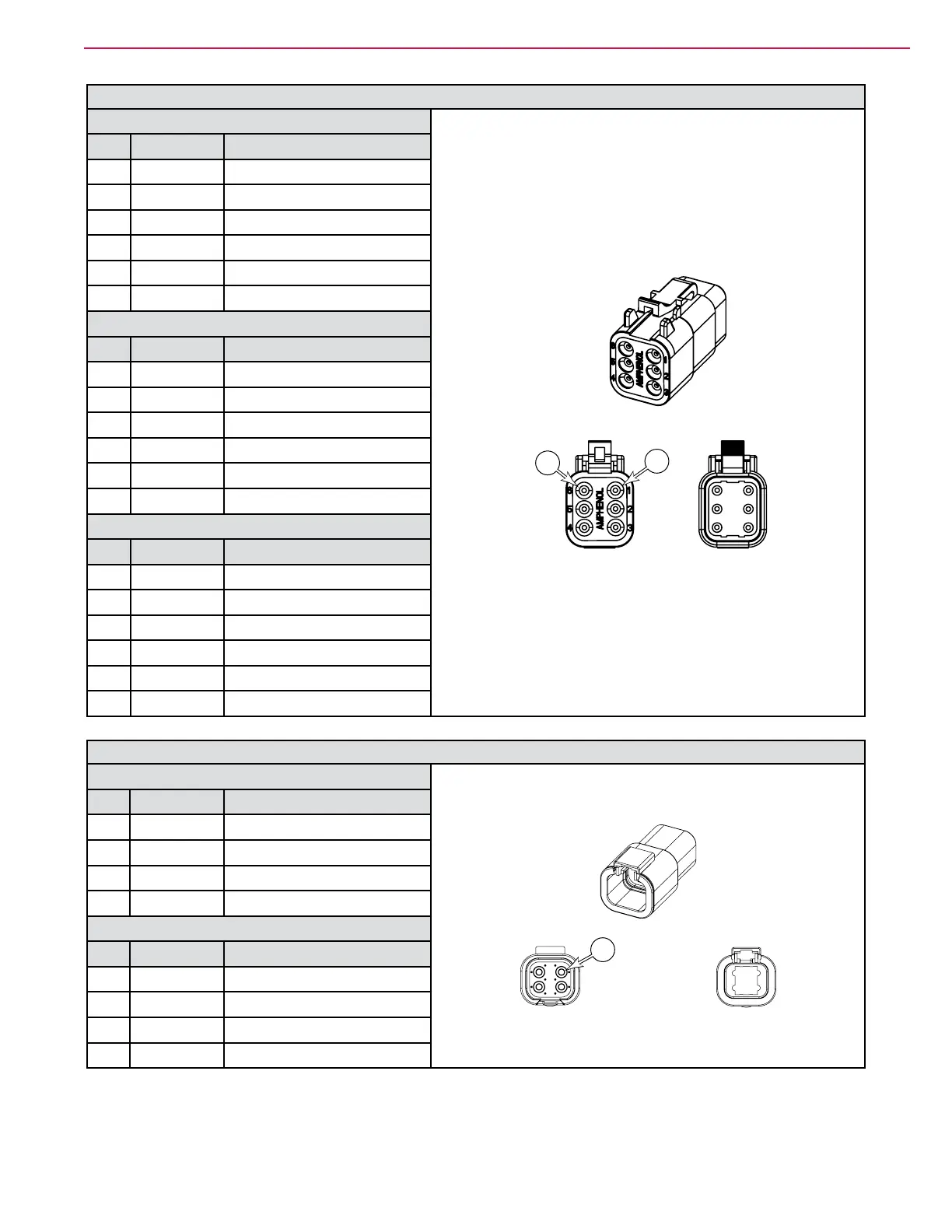

Common 6-Pole Connectors
X56 Steering Wheel Position Sensor
1
6
Pin Color Name
1 RED-GRN +5
2 BLK Gnd
3 GRN-GRY Encoder 1
4 GRN-BLK Encoder 2
5 VIO-WHT Batt+
6 BRN-GRN TFD control
X82 Main Broom Actuator
Pin Color Name
1 BLK-GRY PWM A
2
3 TAN-VIO PWM B
4 GRY-GRN Pot+
5 TAN-RED Wiper
6 BLU-BLK Pot-
X130 Dump Door Actuator
Pin Color Name
1 ORN-GRY PWM A
2
3 ORN-BLK PWM B
4 BLU-BLK Pot+
5 ORN-RED Wiper
6 BLU-BLK Pot-
Common 4-Pole Connectors
X85 Vacuum Motor Harness
1
Pin Color Name
1 GRY-RED Vac 1 Control
2 BLU-GRY B+
3 ORN-BLU Vac 2 Control
4 BLU-GRY B+
X99 Tail Light Harness
Pin Color Name
1 ORN-BLU Right Turn
2 TAN-RED Tail Lights
3 BLK-YEL B-
4 YEL-GRN Left Turn
