112Service Manual – CS7010™ 24 - Electrical System

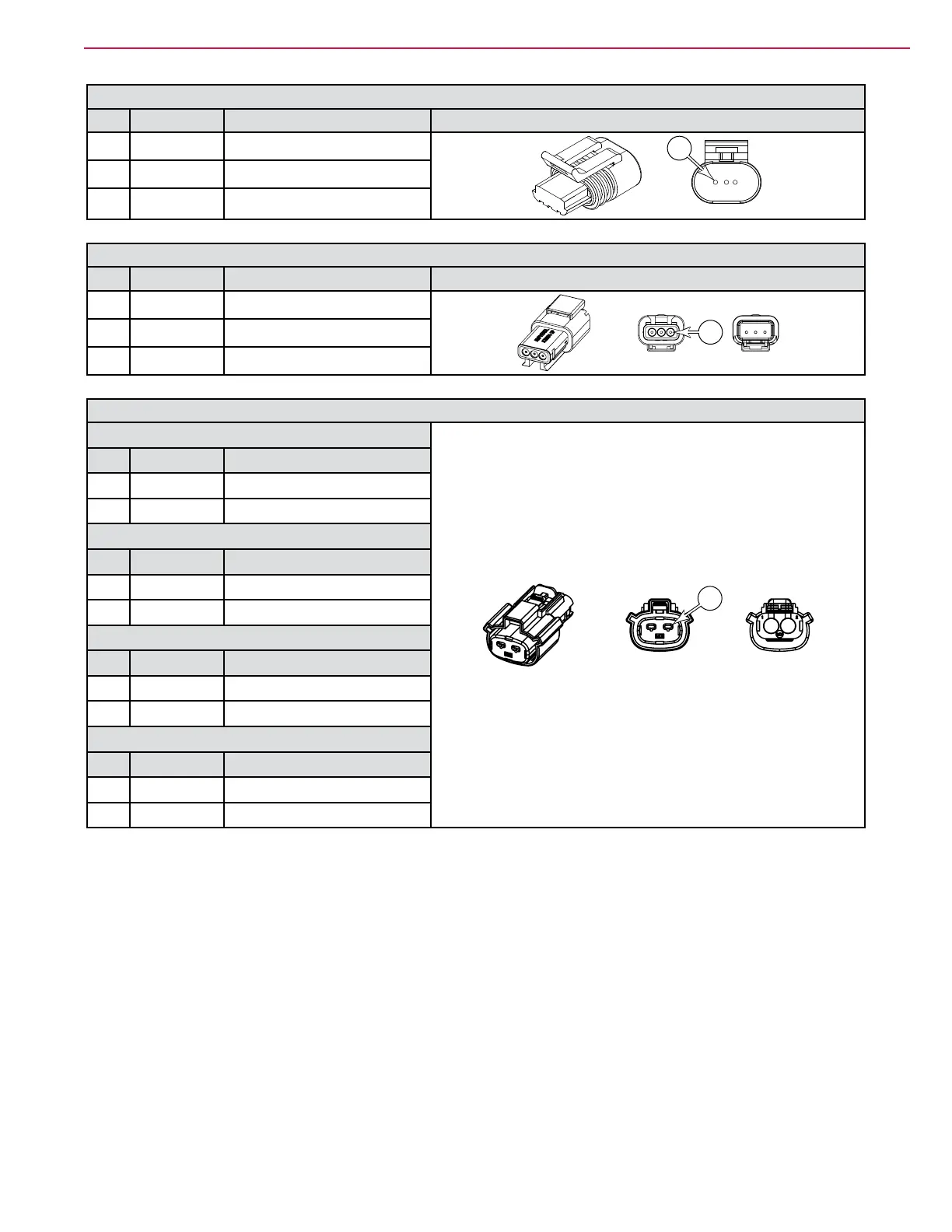

X47 Foot Pedal
Pin Color Name
1 WHT-BLK +5
1
2 BRN-RED Wiper
3 VIO-BLK Gnd
X124 Shaker Motor
Pin Color Name
1 BLU-GRY Control A
1
2 ORN-RED Control B
3 GRN-YEL Chassis Ground
2-Pole High Power Connectors
X107 Main Broom
1
Pin Color Name
1 BLU-GRY B+
2 WHT-VIO Ctrl
X104 Right Brush
Pin Color Name
1 GRY-BLK Ctrl
2 GRN-GRY B+
X106 Center Brush
Pin Color Name
1 BLU-WHT Ctrl
2 GRN-GRY B+
X105 Left Brush
Pin Color Name
1 GRN-GRY B+
2 BLU-GRN Ctrl
