Crescent CS7010 - X48 Foot Brake; X57 Beacon; X84 Extended Scrub Level; X86 Backup Alarm

113Service Manual – CS7010™ 24 - Electrical System

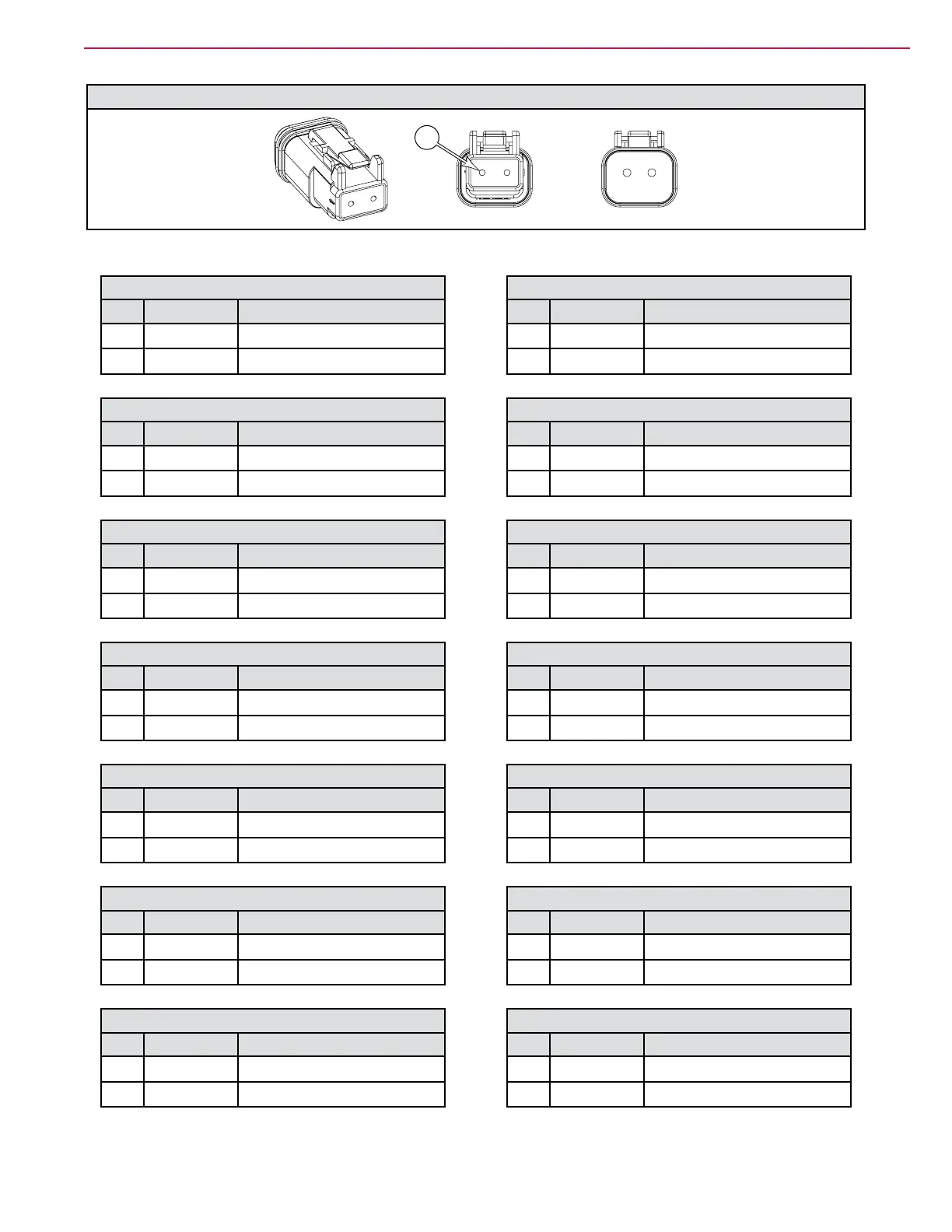

Common 2-Pole Connectors
1
X48 Foot Brake
Pin Color Name
1 ORN-GRY Signal
2 BLK Gnd
X57 Beacon
Pin Color Name
1 VIO B+
2 BLK Gnd
X84 Extended Scrub Level
Pin Color Name
1 GRY-YEL Signal
2 BLK GND
X86 Backup Alarm
Pin Color Name
1 VIO B+
2 GRN-BRN Control
X87 Squeegee Actuator
Pin Color Name
1 BRN-WHT Control A
2 VIO-BLU Control B
X93 Left Limit Switch
Pin Color Name
1 ORN KSI
2 ORN-RED Signal
X94 Right Limit Switch
Pin Color Name
1 ORN KSI
2 WHT-BLU Signal
X100 Deck Actuator
Pin Color Name
1 RED-GRY Control A
2 GRN-VIO Control B
X101 Extended Scrub Pump
Pin Color Name
1 VIO-ORN Control
2 VIO KSI
X102 Soultion Control Pump
Pin Color Name
1 RED-YEL Control
2 VIO KSI
X103 Low Pressure Pump
Pin Color Name
1 VIO KSI
2 BLK B-
X114 Dust Guard Valve
Pin Color Name
1 VIO KSI
2 BRN-RED Control
X115 Dust Guard Pump
Pin Color Name
1 VIO KSI
2 BRN-RED Control
X123 Dust Fan
Pin Color Name
1 BLU-GRY
K2B+
2 BRN-YEL Control
