SV-EMS-220 Engine Monitoring System Installation and Configuration
SkyView HDX System Installation Manual - Revision E 10-1
10 SV-EMS-220 Engine Monitoring System Installation and
Configuration

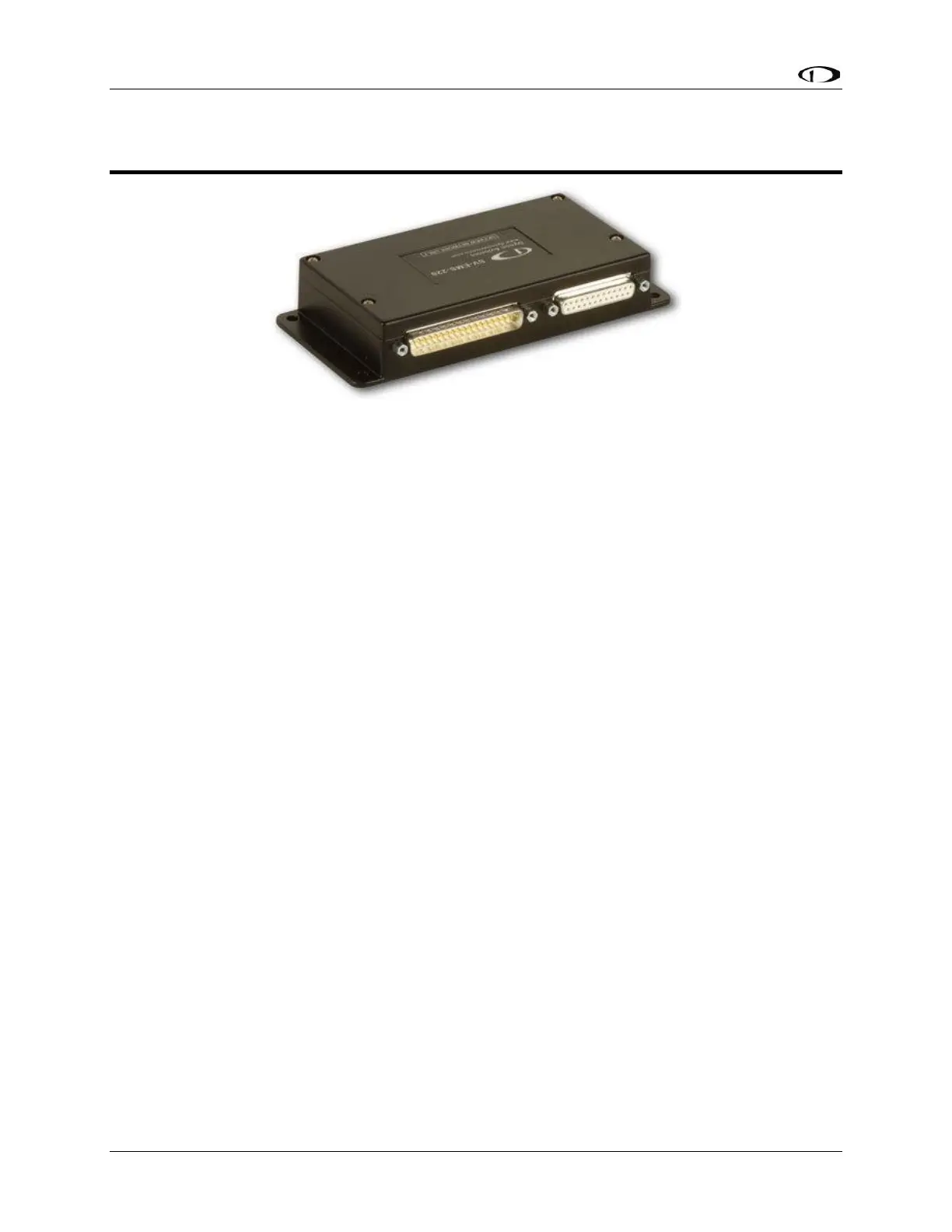

Figure 46: SV-EMS-220
This section contains information and diagrams that specifically apply to the installation
of the SV-EMS-220 Engine Monitoring module and compatible transducers and sensors.
After reading this section, you should be able to determine how to prepare an installation
location, how to mount the module and its transducers and sensors, how to make all
necessary electrical and transducer and sensor connections, and also how to configure
the SkyView system for the installation’s engine parameter sensing.
10.1 Mechanical Installation
Observe the following guidelines when choosing a location for an SV-EMS-220 Engine
Monitor module:
• Typical location is on the avionics tray located behind the primary display.
• Do not install on the engine side of the firewall.
• Avoid locations that are subject to severe vibration.
• Avoid locations that are subject to extreme humidity.
• Leave ample working room for electrical connections.
The following diagram shows the mounting dimensions of the EMS module with electronic
connections.
