Appendix C: Wiring and Electrical Connections

SkyView HDX System Installation Manual - Revision E 25-9

25.6.3 SkyView D37M Block Diagram

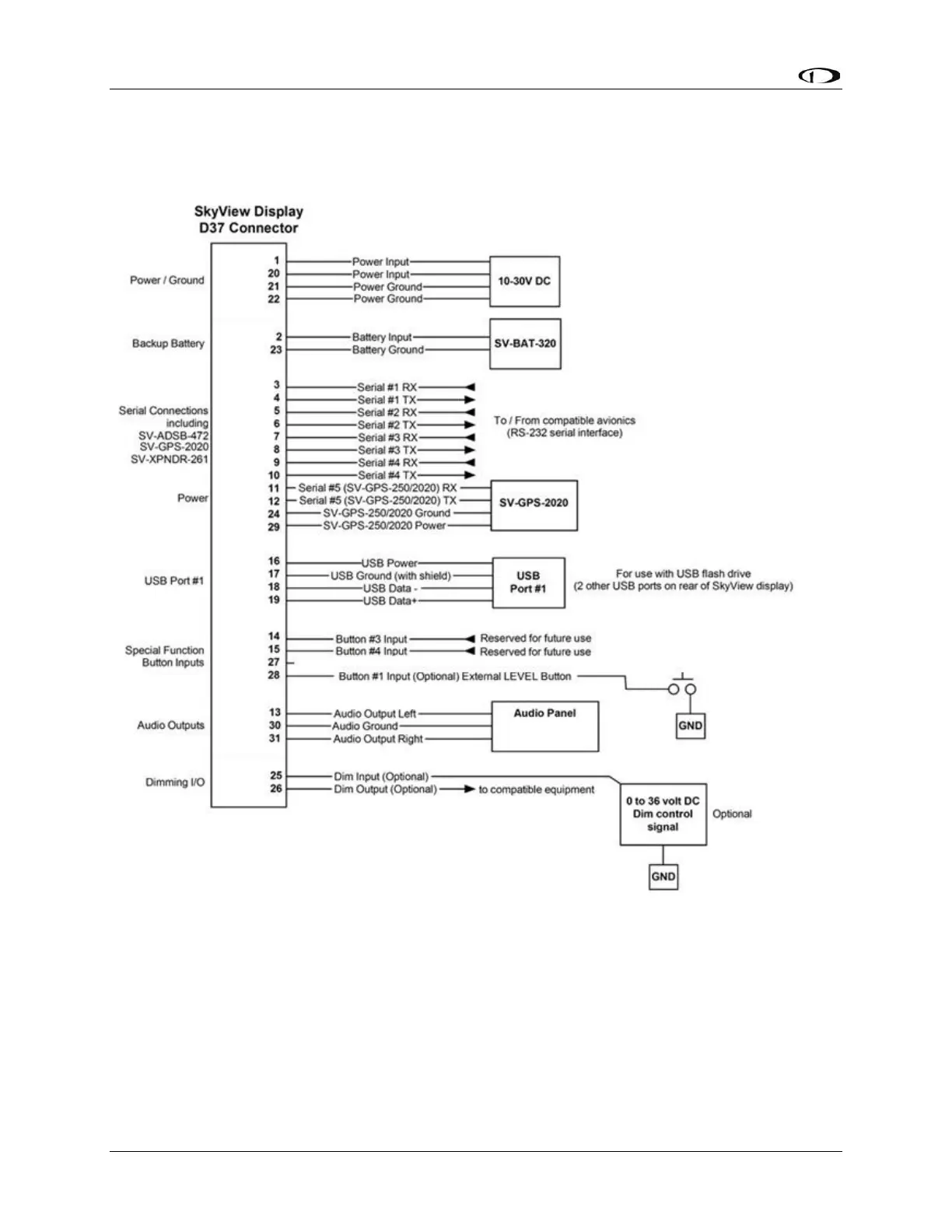

Figure 141 below illustrates basic SkyView display D37 electrical connections.

Figure 141: SkyView Display’s D37M Connector Electrical Connections
