Dynon SkyView HDX - Fuel Flow Sensor

SV-EMS-220 Engine Monitoring System Installation and Configuration
SkyView HDX System Installation Manual - Revision E 10-13
Before installing Kavlico sensors, reference the Dynon Technical Advisory
website (https://www.dynonavionics.com/support-bulletins.php) for important
information regarding Kavlico sensors sold by Dynon.
10.2.14 Fuel Flow Sensor
The approximate pulses/gallon for the Fuel Flow Sensor is 68,000 (17,963.70
pulses/liter). You must configure the fuel flow transducer using this numerical
value in the Sensor Setup Menu (SETUP MENU > HARDWARE
CALIBRATION > EMS CALIBRATION > FUEL FLOW CALIBRATION). More
information on this topic is discussed in the Fuel Computer Configuration
section of this section.
Table 17: Fuel Flow Transducer Connections
Wire Color
EMS Harness
Wire Color
EMS Harness Pin
Number
Function
Black
Black
Any of Pins 3, 13, 16, 17,
or 30
Ground
Yellow or White
Yellow
14
Fuel Flow Input 1(From
fuel tank)
Red
Red
(share-able with other
sensors)
15
(share-able with other
sensors)
+12 Volt
Auxiliary
Yellow or White
White / Black
19
Fuel Flow Input 2
(optional return to tank)

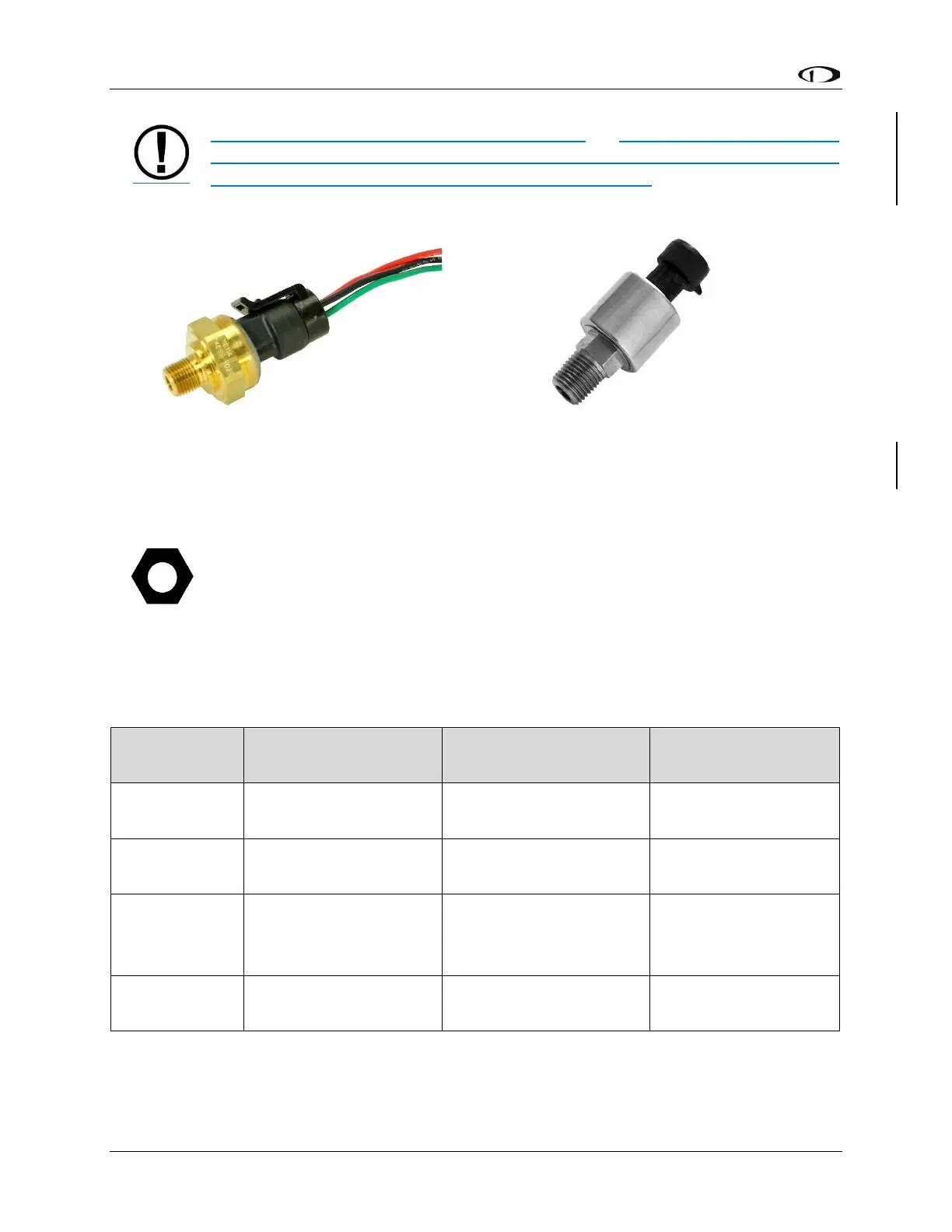

Figure 55 – Original 1/8-27 NPT 0-50 PSI
Sensor (P/N°503389-000)
Figure 56 – New 1/8-27 NPT 15 PSI Sensor
(P/N°503850-000) (Shown Without Wiring
Connector)
