2.11.3 SV-NET-HUB
The SV-NET-HUB SkyView Network hub contains five (5) SkyView Network ports. All five
(5) ports are identical, thus any of the five (5) ports can be used to connect to your
displays, modules, and/or autopilot servos. Servo power should be broken out, as is
normally done. See the Autopilot Servo Installation section of this manual for more
information about Servo wiring. The SkyView Network Hub is designed to ease the
distribution of SkyView Network connections to multiple SkyView Network components
by allowing easy expansion of a SkyView network without relying on a more expensive
network of individual splitters. It also allows for fewer overall connections over the splitter-
only method.

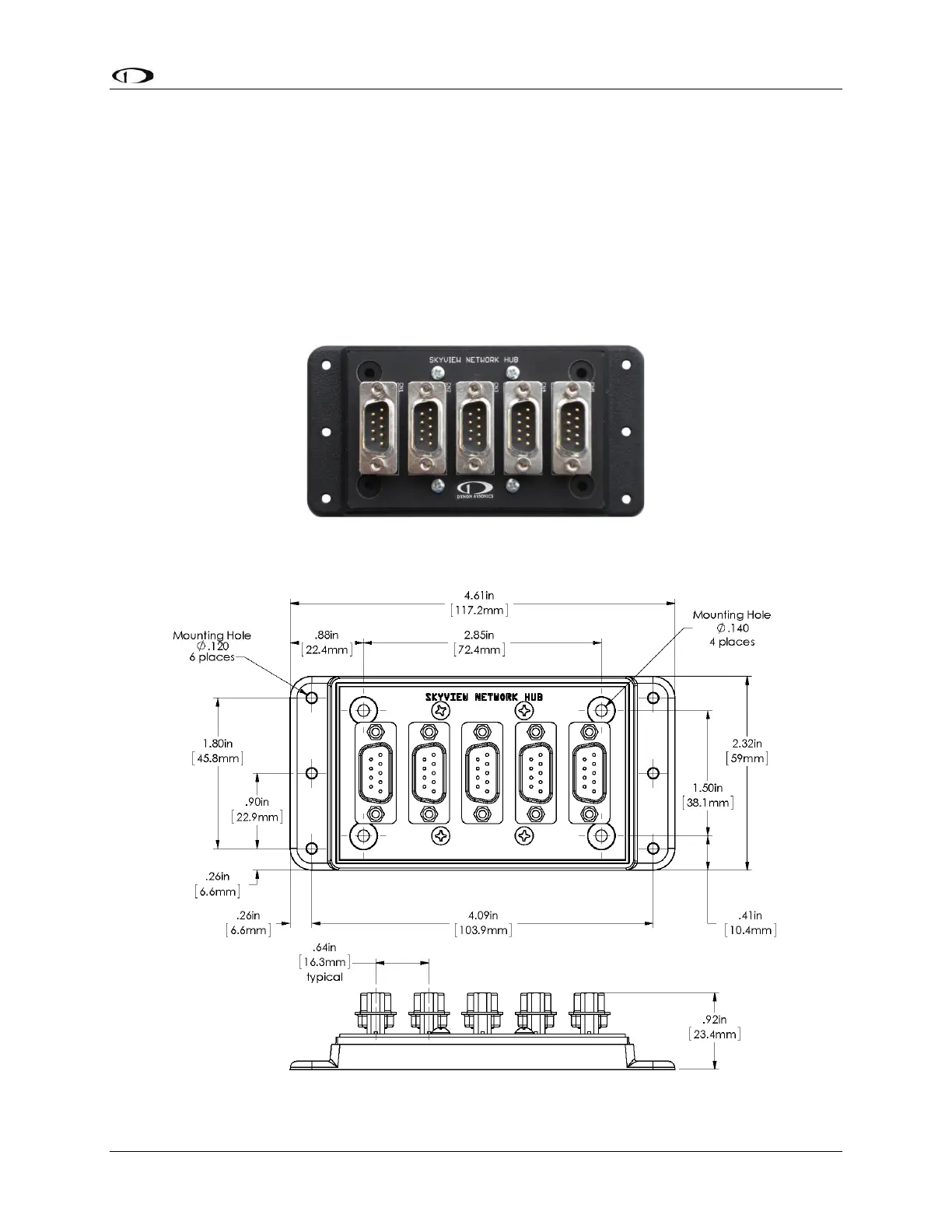

Figure 12: SV-NET-HUB Dimensions
