SV-ARINC-429 Module Installation and Configuration
SkyView HDX System Installation Manual - Revision E 13-5
Pins 24/25 are the same TX signal. Provided for
convenience when connecting multiple ARINC receivers.
Pins 24/25 are the same TX signal. Provided for
convenience when connecting multiple ARINC receivers.
13.2.2 ARINC-429 Third-Party Connection
The SV-ARINC-429 has two (2) ARINC-429 receivers and one (1) transmitter. The single
transmitter may be connected to multiple devices that can accept the ARINC-429
information that SkyView transmits.
The SV-ARINC-429 also has a serial input that is designed to provide auxiliary information
that ARINC-429 GPS outputs do not provide (such as altitude). SkyView needs this data
to consider the input a valid and complete GPS position source. This input is not a general
purpose serial port, and cannot be configured for other uses. Input coming into this serial
port is assumed to be in Aviation format, which most ARINC-429 capable panel mount
GPS units can output.
The following several diagrams show some common radios and GPSs, and the preferred
connection schemes between them and the SV-ARINC-429.

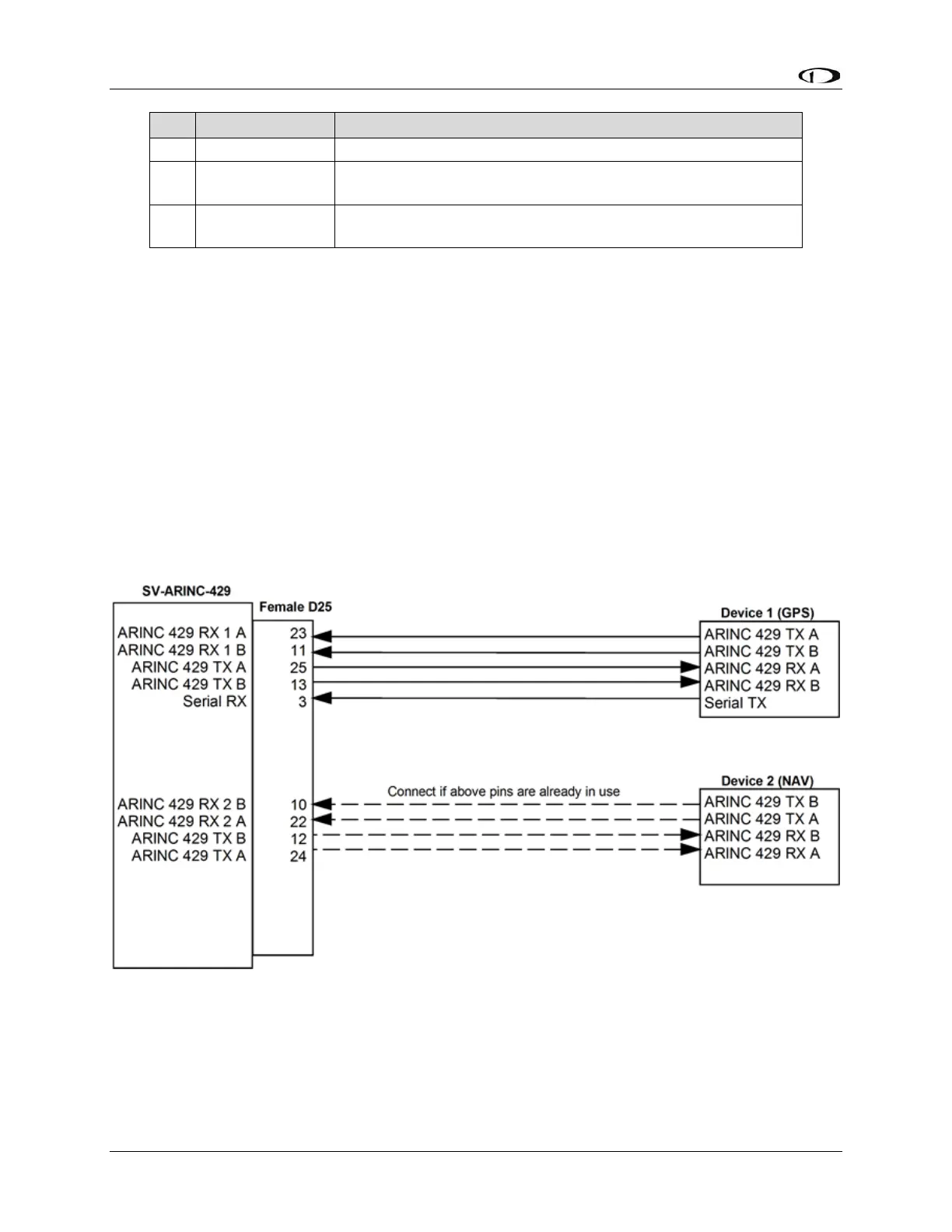

Figure 89: Generic SV-ARINC-429 Connections
