Appendix C: Wiring and Electrical Connections
SkyView HDX System Installation Manual - Revision E 25-7
Table 65: SV-NET-SERVO Harness Pinout
SV-NET-SERVO
Pin
SV-NET-SERVO
Wire Color
Description
1
Green
SkyView Network Data 1A
2
Black
Aircraft Ground
3
Yellow
AP Disengage/Control Wheel Steering
(CWS) Button
4
White/Blue
SkyView Network Data 2B
5
N/A
No connection
6
Blue
SkyView Network Data 1B
7
Red
Power (10 to 30 volts DC)
8
White/Green
SkyView Network Data 2A
9
N/A
No connection
25.6.2 SkyView Display D37 Pinout (SV-HARNESS-D37)

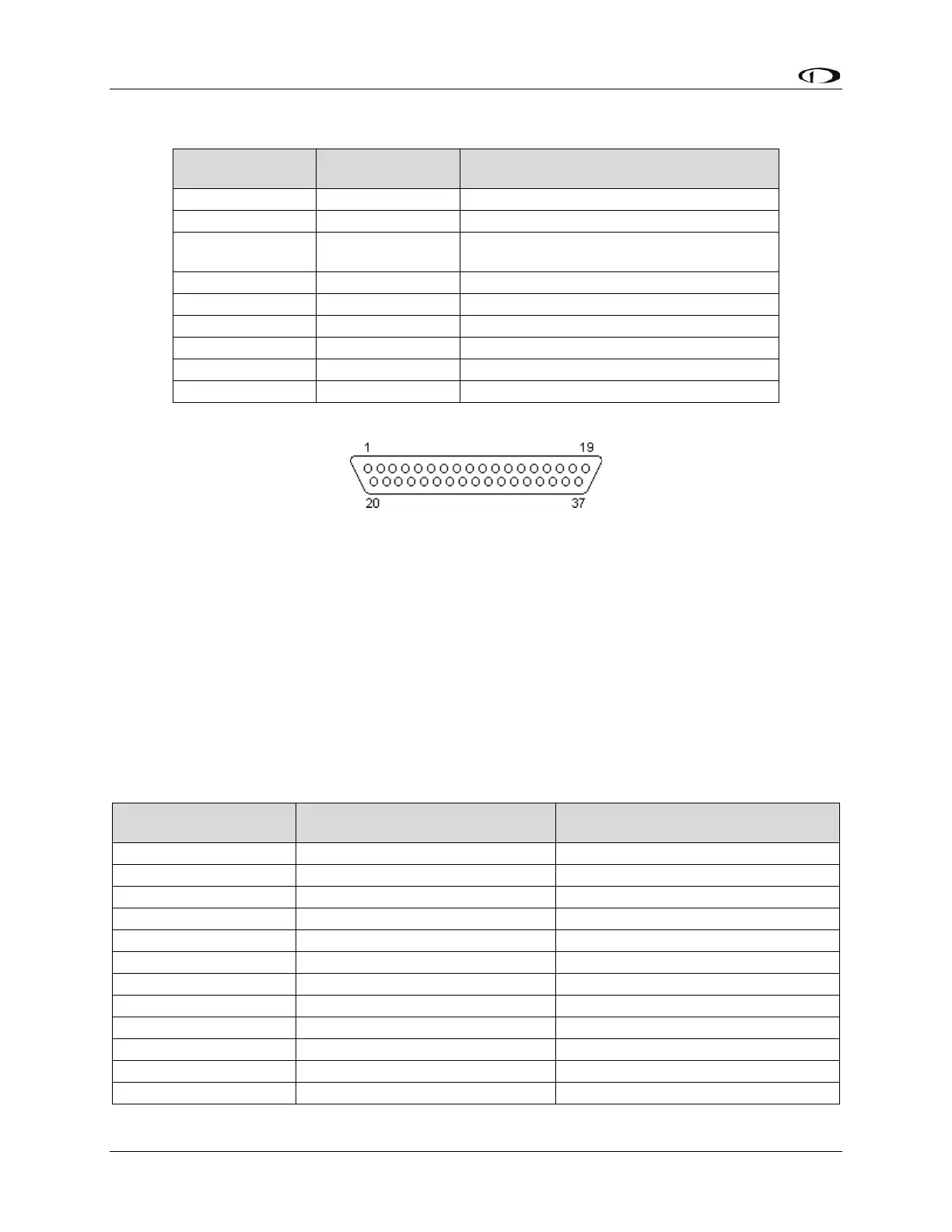

Figure 140: SkyView Display D37F Connector Pin Numbering
Dynon Avionics SkyView displays use a D37M connector for the majority of its
connections. Figure 140: SkyView Display D37F Connector Pin Numbering above shows
the pin numbering for the mating D37F connector, installed on the cable that plugs into
this connector, from the rear (pin insertion) view. The SV-HARNESS-D37 is normally
bundled with a SkyView display, though the SkyView display can be purchased without
an SV-HARNESS-D37, and the SV-HARNESS-D37 can be purchased separately, for
wiring the panel prior to purchasing a SkyView display.
The D9M connectors are SkyView Network connectors which are detailed in SkyView
Network Pinout below.
Table 66: SkyView Display D37M Pinout with Harness Wire Colors
SkyView Display
D37M Pin
SV-HARNESS-D37 Wire Color
Description
1
Red
Power Input
2
Red with Yellow stripe
SV-BAT-320 +
3
Brown with Violet stripe
Serial Port 1 RX
4
Brown with Orange stripe
Serial Port 1 TX
5
Yellow with Violet stripe
Serial Port 2 RX
6
Yellow with Orange stripe
Serial Port 2 TX
7
Green with Violet stripe
Serial Port 3 RX
8
Green with Orange stripe
Serial Port 3 TX
9
Blue with Violet stripe
Serial Port 4 RX
10
Blue with Orange stripe
Serial Port 4 TX
11
Gray with Violet stripe
Serial Port 5 RX
12
Gray with Orange stripe
Serial Port 5 TX
