SV-EMS-220 Engine Monitoring System Installation and Configuration
SkyView HDX System Installation Manual - Revision E 10-11
Before installing Kavlico sensors, reference the Dynon Technical Advisory
website (https://www.dynonavionics.com/support-bulletins.php) for important
information regarding Kavlico sensors sold by Dynon.
10.2.12 Oil Temperature Sensors
While a Dynon Avionics oil temperature sensor may be connected to any general purpose
input pin on the SV-EMS-220’s D37, we recommend that it be connected to pin 7 on this
connector.
The oil temperature sensor needs to be installed according to the directions of the engine
manufacturer. Dynon Avionics sells oil temperature sensors with both 5/8-18 UNF (Dynon
Avionics P/N 503385-000) and 1/8-27 NPT (Dynon Avionics P/N 100409-000) threads.
Ensure that you have the right sensor for your engine.
Dynon Avionics 5/8-18 UNF Oil Temperature Sensor is furnished with an AN900-10
Crush Washer.
When tightening the 5/8-18 UNF Oil Temperature Sensor into place, the
Crush Washer must be centered. Failure to do so may result in an improper
seal.

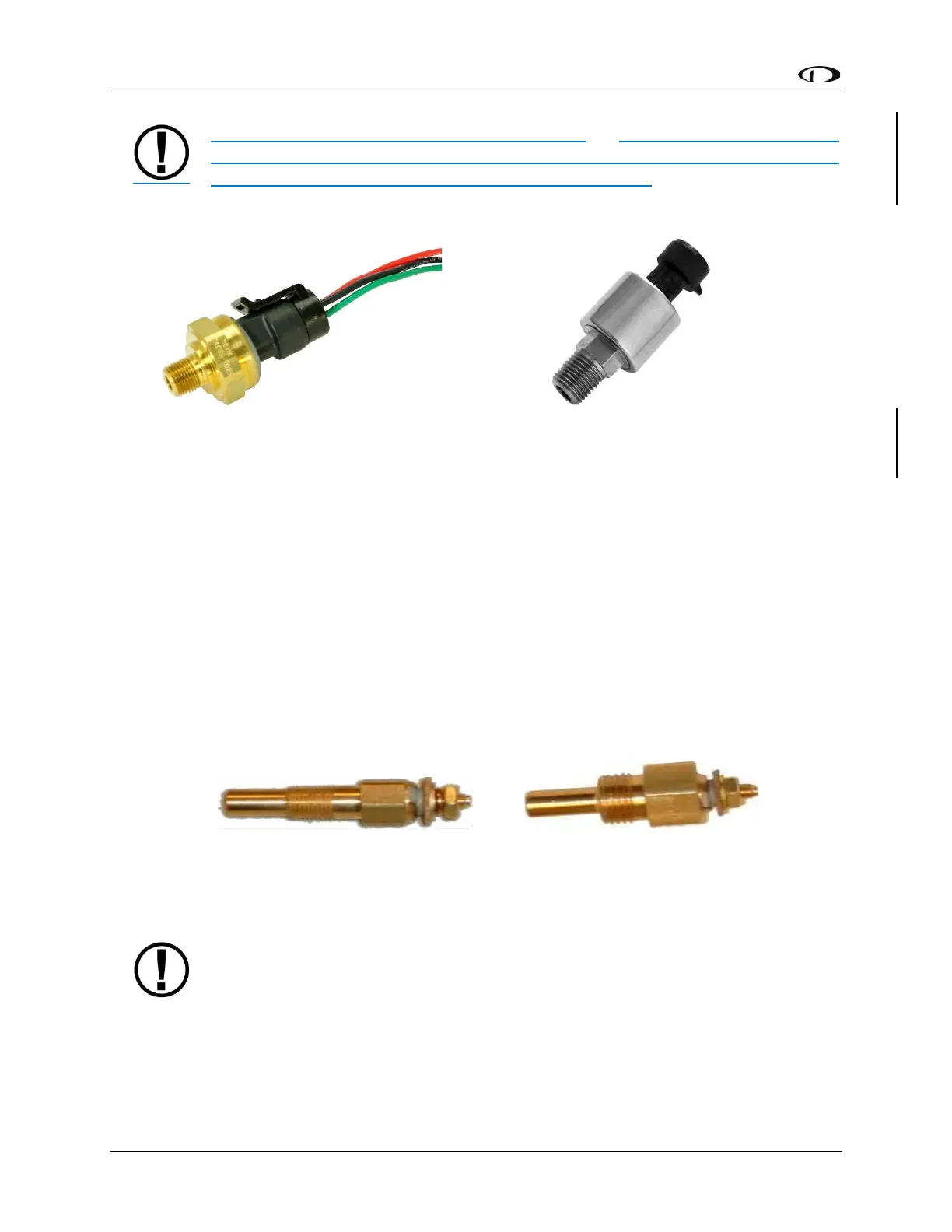

1/8-27 NPT P/N 100409-000
Figure 54: Dynon Avionics Oil
Temperature Sensors
5/8-18 UNF P/N 503385-000
Figure 52 – Original 1/8-27 NPT 0-150 PSI
Sensor (P/N°503388-000)
Figure 53 – New 1/8-27 NPT 150 PSI Sensor
(P/N°503851-000) (Shown Without Wiring
Connector)
