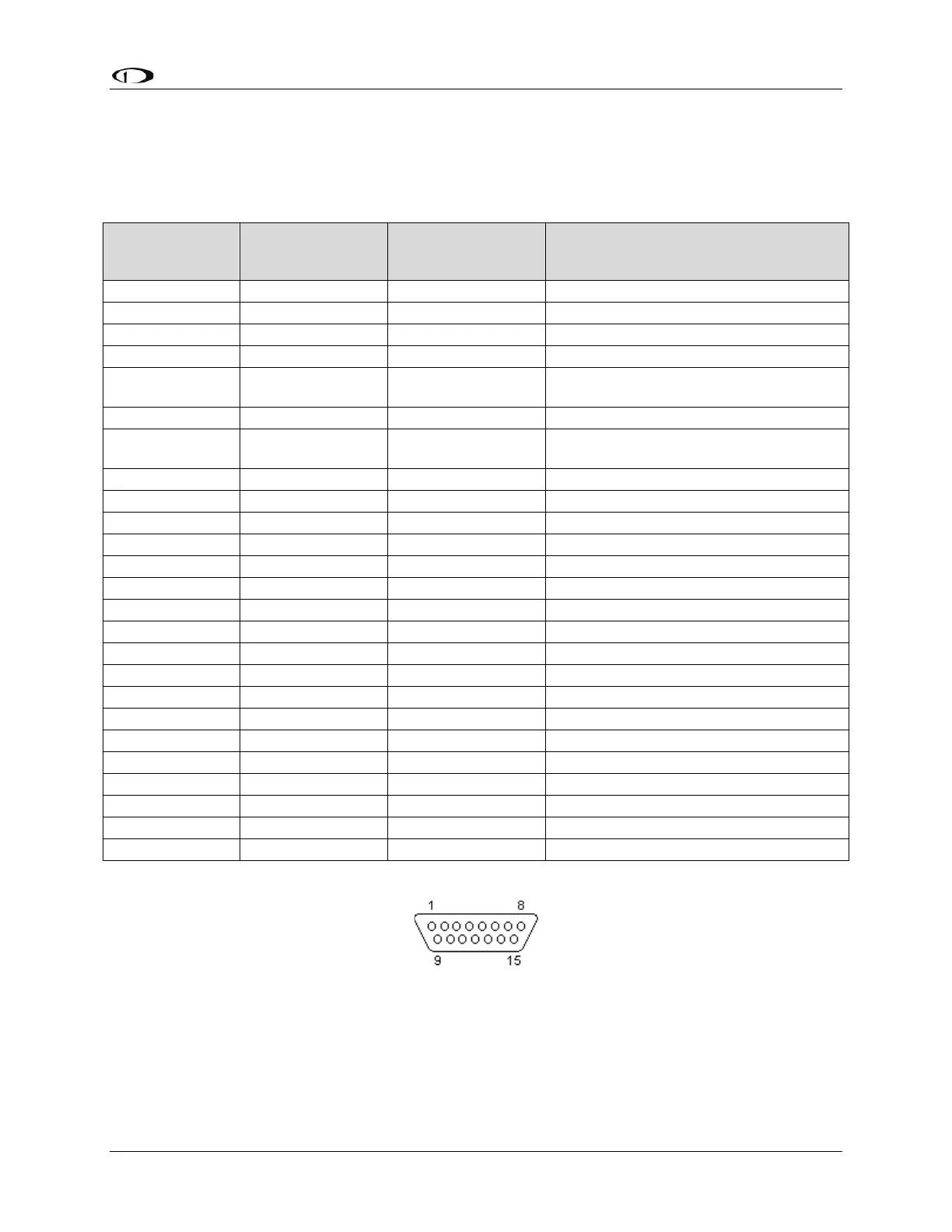

Dynon SkyView HDX - SV-XPNDR-261 Pinout (SV-HARNESS-XPNDR); SV-AP-PANEL Pinout (D15 M connector)

Appendix C: Wiring and Electrical Connections
25-16 SkyView HDX System Installation Manual - Revision E
The SV-XPNDR-261 uses a D25F connector (included with the SV-HARNESS-XPNDR
harness). Figure 147 above shows pin numbering for the mating D25M connector,
installed on the SV-HARNESS-XPNDR, from the rear (pin insertion) view.
Table 73: SV-XPNDR-261 D25 Pin
SV-XPNDR-261
D25 Pin
SV-HARNESS-
XPNDR
Wire Color
Function
Description
1
White
Loopback 1
Connect to Pin 2
2
White
Loopback 1
Connect to Pin 1
3
White
GPS Serial Input
Aviation Format Only
4
N/A
No Connect
-
5
Orange
SV-XPNDR-261
Serial RX
Connect to Pin 4, 6, 8, or 10 on SkyView
Display D37 connector
6
N/A
No Connect
-
7
Violet
SV-XPNDR-261
Serial TX
Connect to Pin 3, 5, 7, or 9 on SkyView
Display D37 connector
8
N/A
No Connect
-
9
N/A
No Connect
-
10
N/A
No Connect
-
11
N/A
No Connect
-
12
White
Loopback 2
Connect to Pin 13
13
White
Loopback 2
Connect to Pin 12
14
Black
Ground
Connect to Aircraft Ground
15
Red
11-33V DC
Connect to Aircraft Power
16
N/A
No Connect
-
17
N/A
External Standby In
Optional: Not Commonly Connected
18
N/A
Mutual Suppression
Optional: Not Commonly Connected
19
Yellow
Squat Switch In
Optional: Not Commonly Connected
20
Green
Ident Switch In
Optional: Not Commonly Connected
21
N/A
No Connect
-
22
N/A
No Connect
-
23
N/A
No Connect
-
24
N/A
No Connect
-
25
N/A
No Connect
-
25.6.8 SV-AP-PANEL Pinout (D15M connector)
Figure 148: SV-AP-PANEL D15F Connector Pin Numbering
The SV-AP-PANEL Trim Control Subsystem uses a D15M connector for connecting to
trim control buttons, the trim servo(s), and power for the trim servos(s). Figure 148 above
shows the pin numbering for the mating D15F connector, installed on the cable that plugs
into this connector, from the rear (pin insertion) view.
