Appendix G: Sensor Debug Data
SkyView HDX System Installation Manual - Revision E 29-5
29 Appendix G: Sensor Debug Data
If you have installed single, or dual SV-EMS-220s, SkyView can display the “raw data”
from all connected and configured engine sensors to assist in troubleshooting engine
sensor issues: SETUP MENU > EMS SETUP > SENSOR DEBUG DATA.

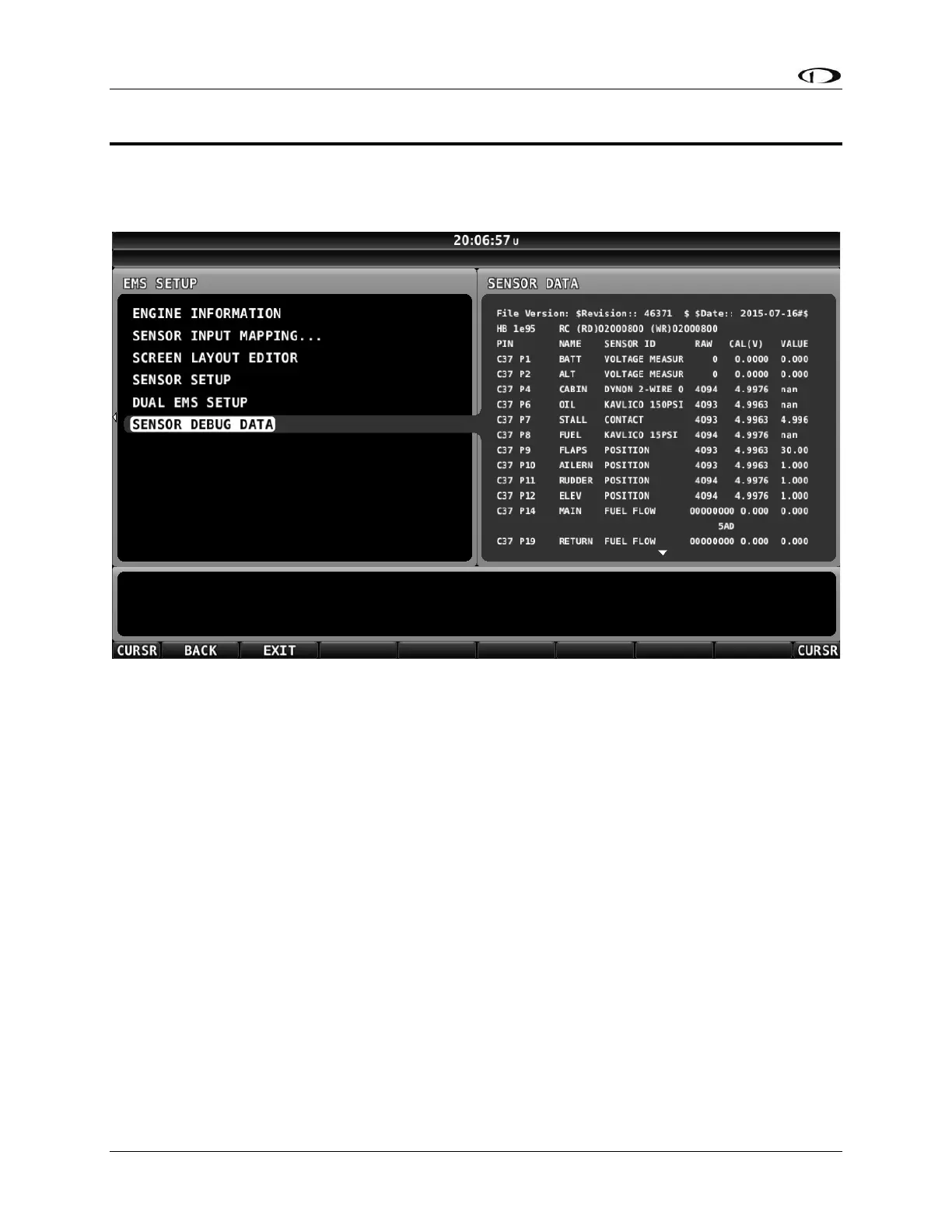

Figure 151: SENSOR DEBUG DATA Page
File Version
This is the sensor file version, with a revision number which should always be unique, as
well as the date it was created at Dynon Avionics.
If you see a EMS SFG FILE MISMATCH warning, compare the file version between the
two (2) displays and update one (1) display (load a new SFG file) so that both displays
have the same File Version.
HB
“HeartBeat” – Increments steadily as data is received from the SV-EMS-220(s).
RC
“Resistor Control” – Status of the “pull up resistors” in the SV-EMS-220(s); Dynon
Avionics internal use only.
Columns:
• PIN
o C37 (Connector, 37-pin) – the 37-pin connector on the SV-EMS-220.
o C25 (Connector, 25-pin) – the 25-pin connector on the SV-EMS-220.
