3-4 SkyView HDX System Installation Manual - Revision E
3.3.2 Primary Field-of-View
AC 23.1311-1C describes the normal line-of-sight as the vertical and horizontal visual
fields from the design eye reference point that can be accommodated with eye
movement only.

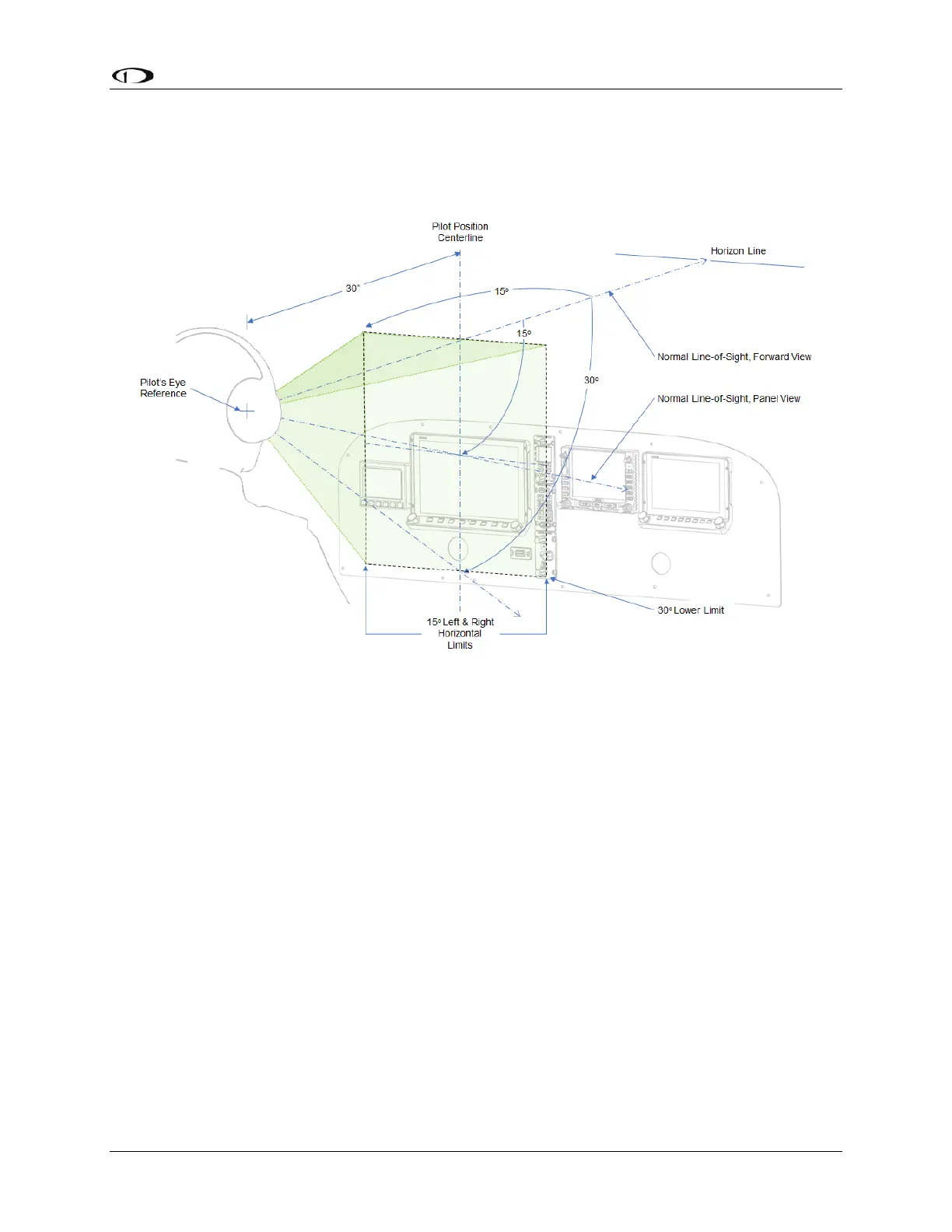

Figure 14: Primary Field-of-View
When geometry is applied to an instrument panel located 30 inches from the eye
reference point identified in AC 23.1311-1C Section 15.4 Table 3, the resulting horizontal
boundary dimension of the primary maximum field-of-view is 8.00 inches on either side
of the pilot’s position centerline reference, as shown in Figure 15.
