10.8.1 Example widget configuration
This example configures an oil temperature widget using the instructions mentioned
above. This is the same oil temperature sensor that was configured earlier (see Example
Oil Temperature Sensor Setup).
Open the Screen Layout Editor for the 100% page (SETUP MENU > EMS SETUP >
SCREEN LAYOUT EDITOR > 100% PAGE…). Now press SENSOR, scroll to the OIL
TEMPERATURE sensor, and press ACCEPT. The following widget shows up on the
middle on the screen:
Figure 63: Oil Temperature Widget
The white box around the widget denotes that that widget is the one (1) that is currently
being configured.

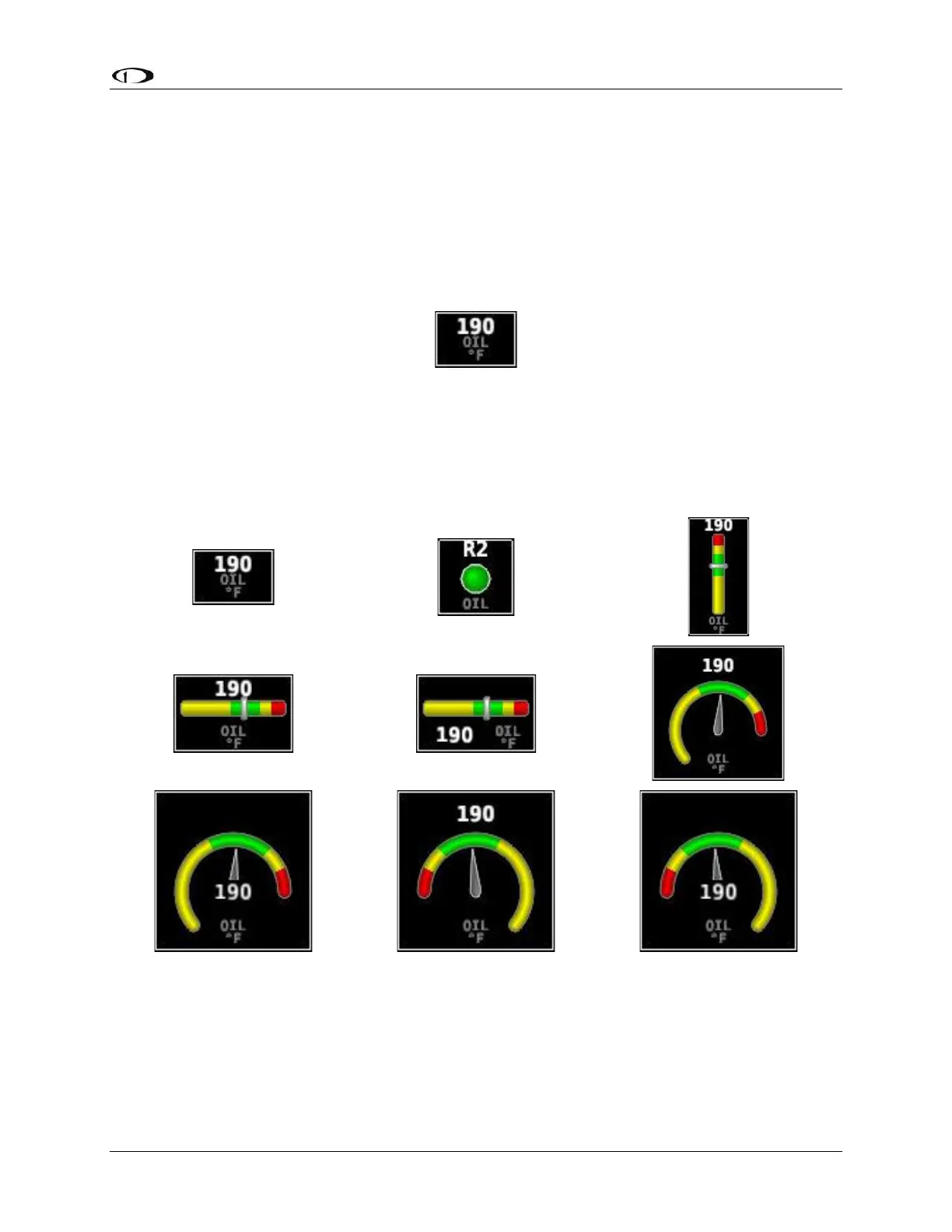

You can scroll through the available styles of the widget by pressing STYLE or by turning
either joystick. The following widgets illustrate different styles for oil temperature:
Figure 64: Example Oil Temperature Widget Styles
You can also adjust the size of the widget by pressing SIZE.
