SV-GPS-2020 GPS Antenna/Receiver Installation and Configuration
SkyView HDX System Installation Manual - Revision E 11-1
11 SV-GPS-2020 GPS Antenna/Receiver Installation

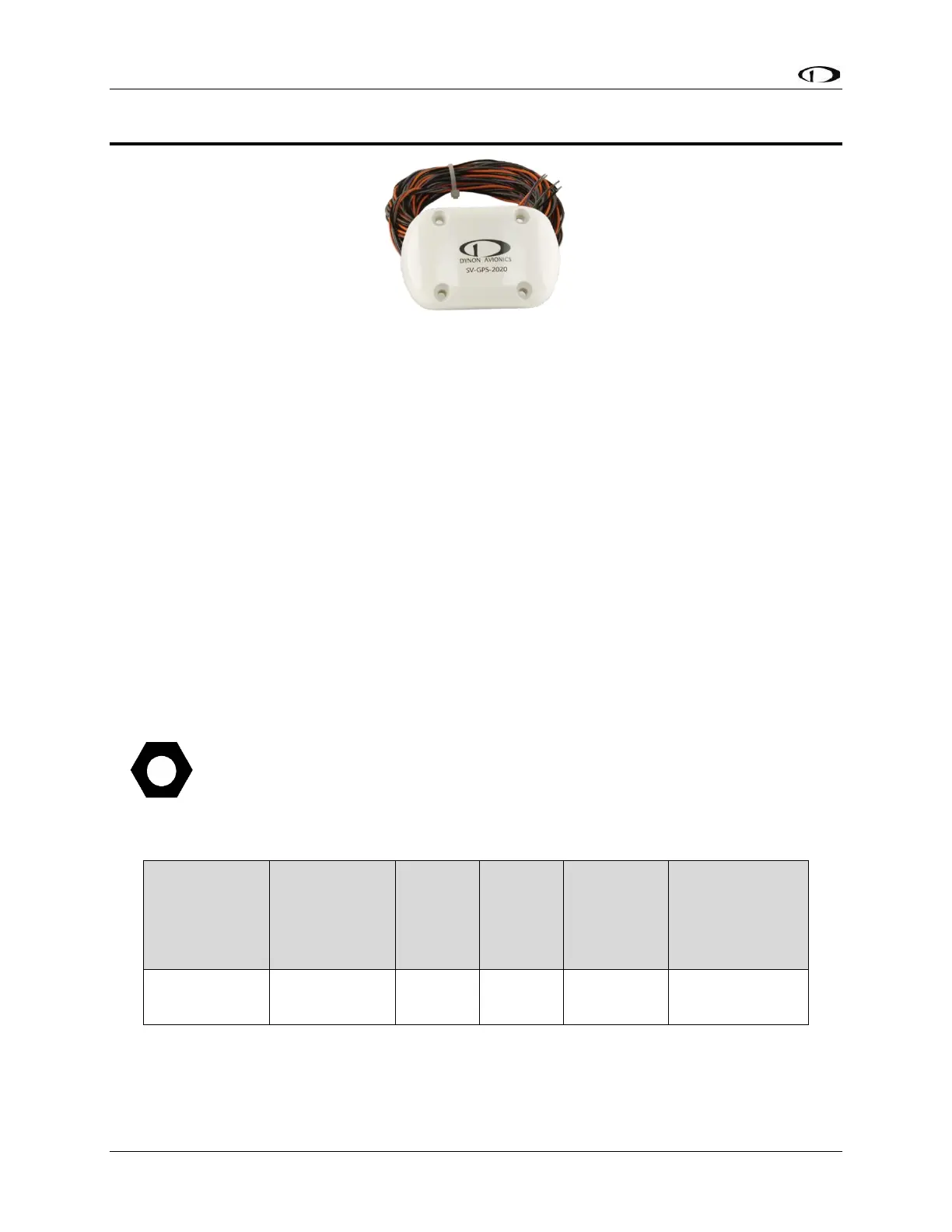

Figure 67: SV-GPS-2020
This section explains the installation and configuration of the Dynon Avionics SV-GPS-
2020 GPS Antenna/Receiver Module (High Integrity GPS). After reading this section, you
should be able to determine how to prepare the installation location, mount the unit,
connect the unit to a SkyView display(s), and configure it in the SkyView display.
Information specific to the SV-GPS-2020 references the individual unit. Information that
is applicable to either unit is referenced by “SV-GPS-2020.”
The SV-GPS-2020 is self-contained GPS receivers intended for use with the Dynon
Avionics SkyView system and the Advanced Flight Systems (AFS) AF-5000 system. The
SV-GPS-2020 provides “high integrity” GPS data to the SkyView system that is required
by the FAA 2020 ADS-B Out mandate. Unlike similar-looking GPS units, the electronics
of the GPS receiver are contained within the unit – there is no separate “electronics
module” requiring a coaxial cable connection. The four (4) 22 AWG wires provide power
and ground, data to, and data from the unit. The SV-GPS-2020 is powered by the
SkyView display(s) and since if the SkyView display is equipped with the SV-BAT-320
Backup Battery, the SV-GPS-2020 can continue to provide GPS data in the event of a
failure of the plane’s electrical system.
If you are a US pilot and equipping your aircraft for the FAA 2020 ADS-B Out
mandate, and plan to equip your aircraft with a secondary GPS (see below),
the secondary GPS. There is no restriction on equipping a SkyView system
with a second SV-GPS-2020.
