SV-EMS-220 Engine Monitoring System Installation and Configuration
10-38 SkyView HDX System Installation Manual - Revision E
10.10 SkyView HDX Engine Bottom Band

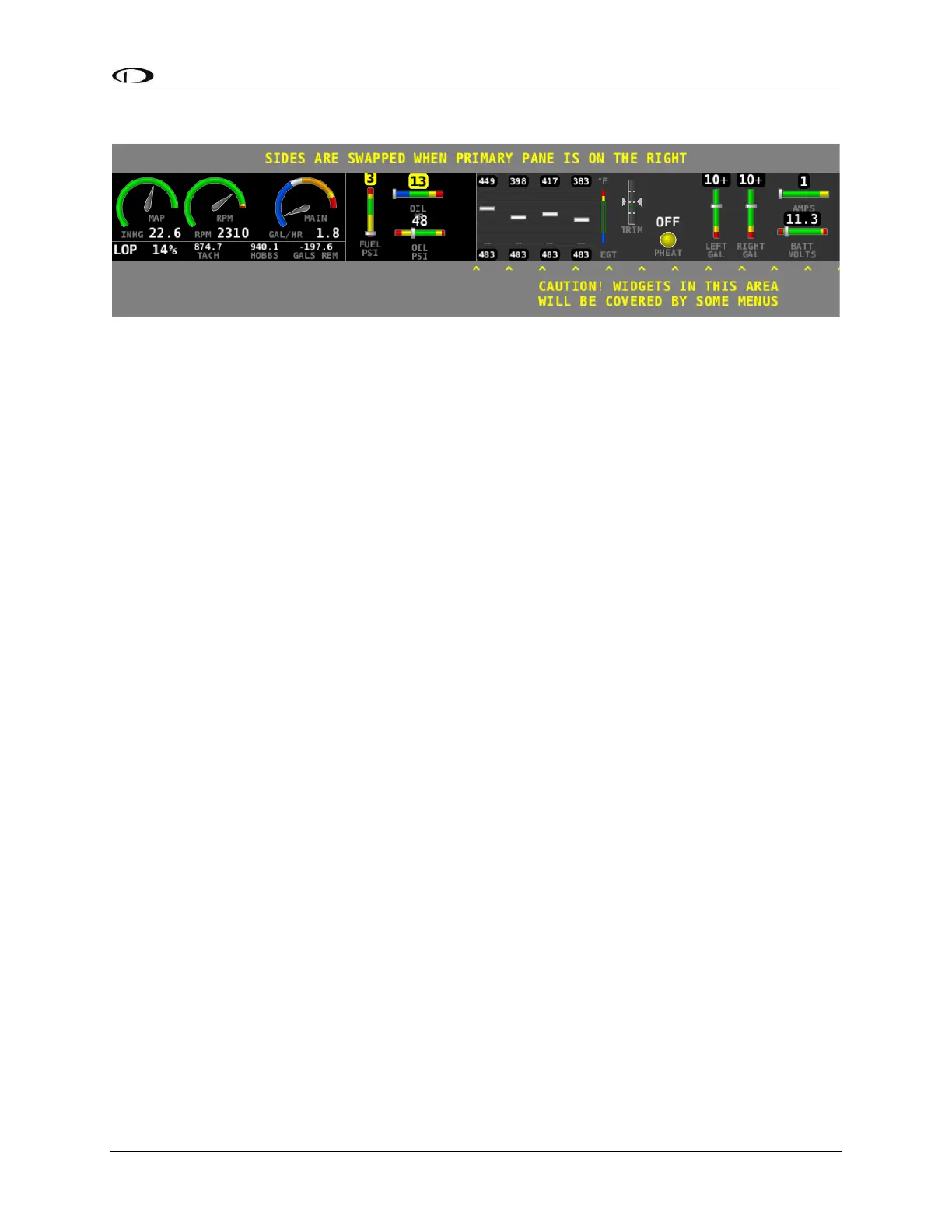

Figure 66: SkyView HDX EMS BOTTOM BAND Layout
There are two (2) considerations necessary when laying out the engine sensors on the
ENGINE BOTTOM BAND:
• Depending on the layout of your SkyView HDX, the layout seen above (dials
on the left side, bar graphs on the right side) may be swapped (dials on the
right side, bar graphs on the left side).
• The “non-Primary” side (the right side outlined by the note CAUTION!
WIDGETS IN THIS AREA WILL BE COVERED BY SOME MENUS) will be
temporarily overwritten by some menus, or permanently overwritten when the
50% ENGINE window is displayed.
Thus, you should plan accordingly to display your most vital engine sensors within the
“Primary” side of the ENGINE BOTTOM BAND.
