Dynon SkyView HDX - SV-ARINC-429 Pinout

SV-ARINC-429 Module Installation and Configuration
13-4 SkyView HDX System Installation Manual - Revision E
13.2.1.2 SV-ARINC-429 Pinout

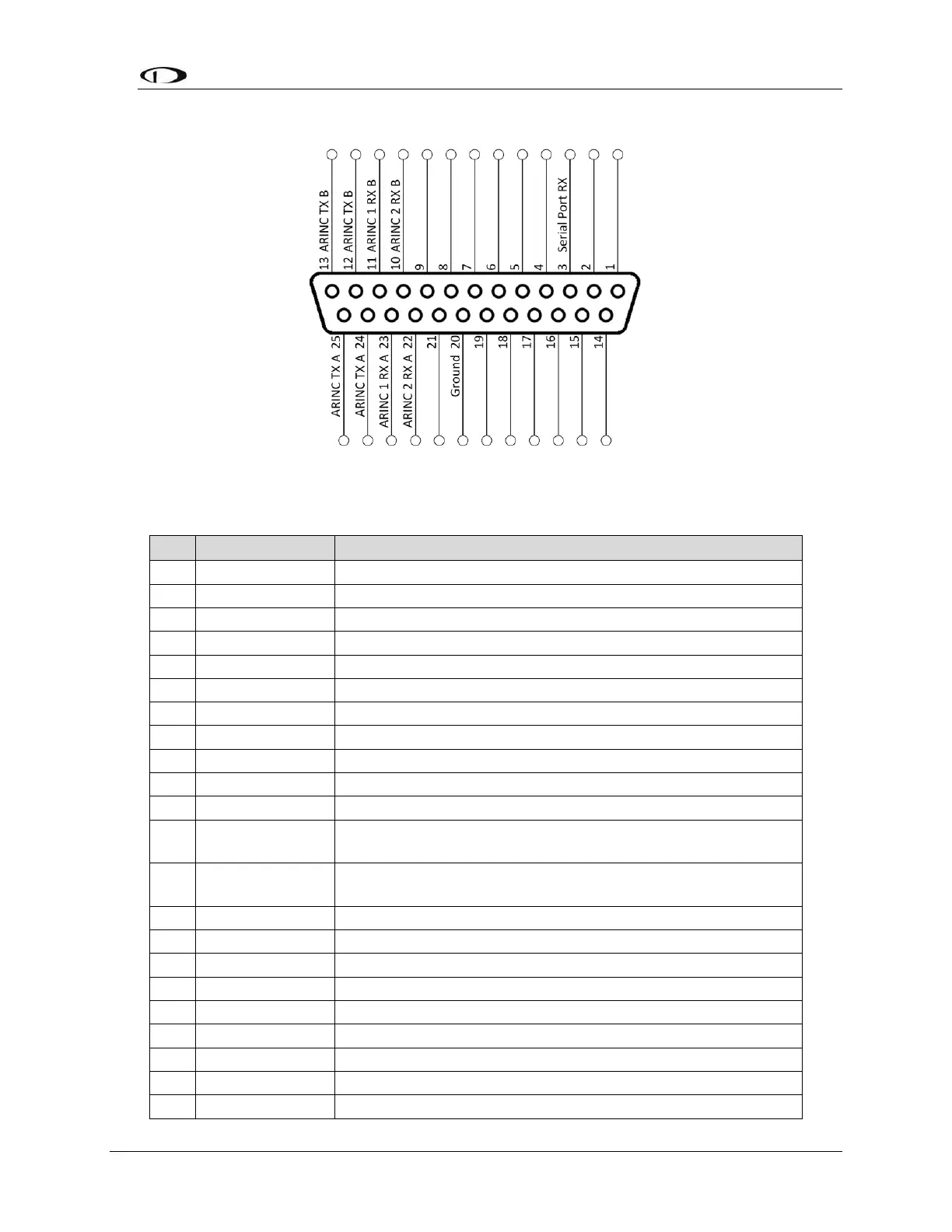

Figure 88: SV-ARINC-429 D25M Pin Insertion View (Rear)
Table 34: SV-ARINC-429 Pinout
Pin
Function
Notes
1
No Connect
-
2
No Connect
-
3
Serial RX
Aviation Format Only from Connected ARINC-429 GPS
4
No Connect
-
5
No Connect
-
6
No Connect
-
7
No Connect
-
8
No Connect
-
9
No Connect
-
10
ARINC 2 RX B
-
11
ARINC 1 RX B
-
12
ARINC TX B
Pins 12/13 are the same TX signal. Provided for
convenience when connecting to multiple ARINC receivers.
13
ARINC TX B
Pins 12/13 are the same TX signal. Provided for
convenience when connecting multiple ARINC receivers.
14
No Connect
-
15
No Connect
-
16
No Connect
-
17
No Connect
-
18
No Connect
-
19
No Connect
-
20
Ground
-
21
No Connect
-
22
ARINC 2 RX A
-
