SV-GPS-2020 GPS Antenna/Receiver Installation and Configuration

SkyView HDX System Installation Manual - Revision E 11-7

Go to GPS FIX STATUS to verify that the SV-GPS-2020 is receiving GPS signals:

SETUP MENU > LOCAL DISPLAY SETUP > GPS FIX STATUS.

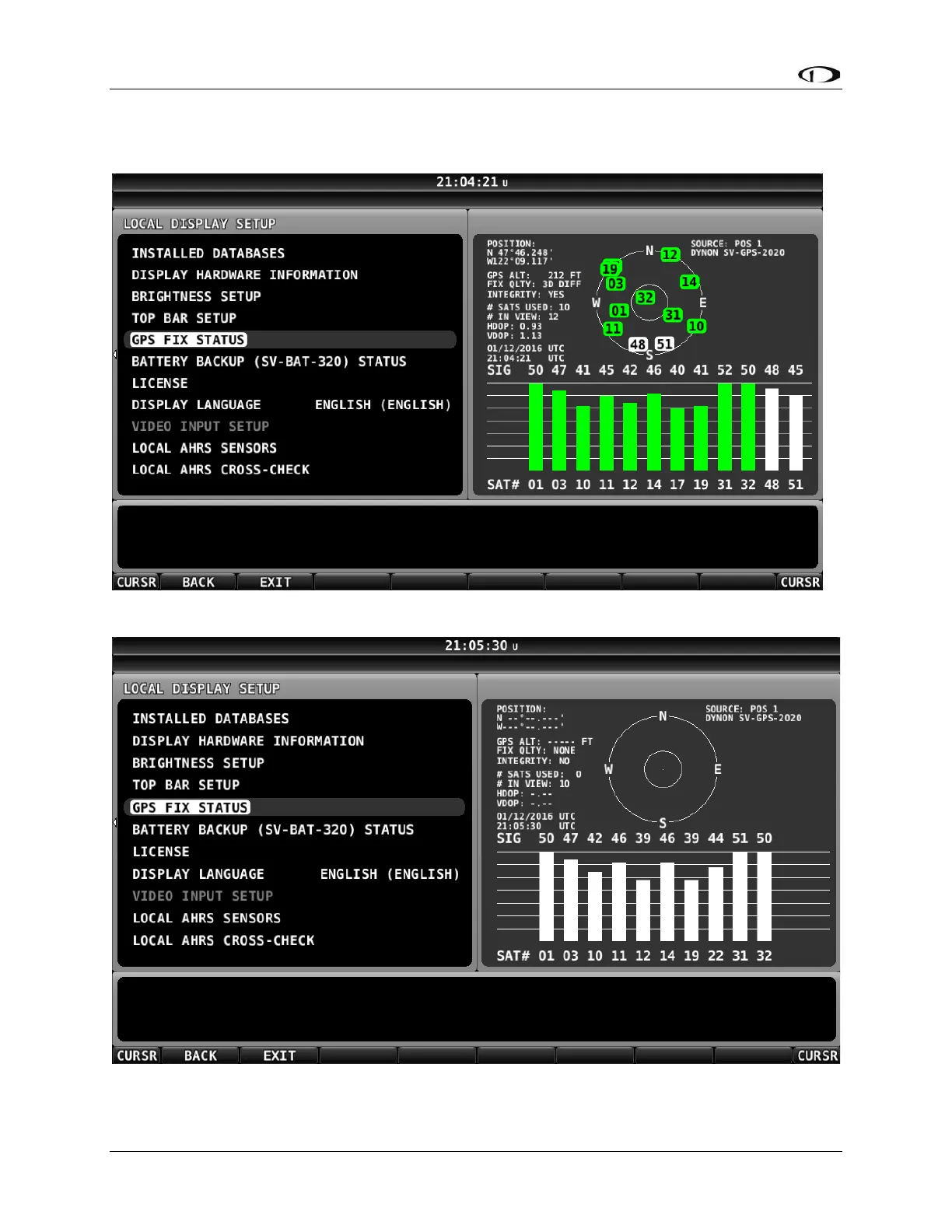

Figure 71: GPS FIX STATUS – Very Good, 3D DIFF

Figure 72: No GPS Fix
