SV-COM-X83 Transceiver and Panel Installation and Configuration

SkyView HDX System Installation Manual - Revision E 15-3

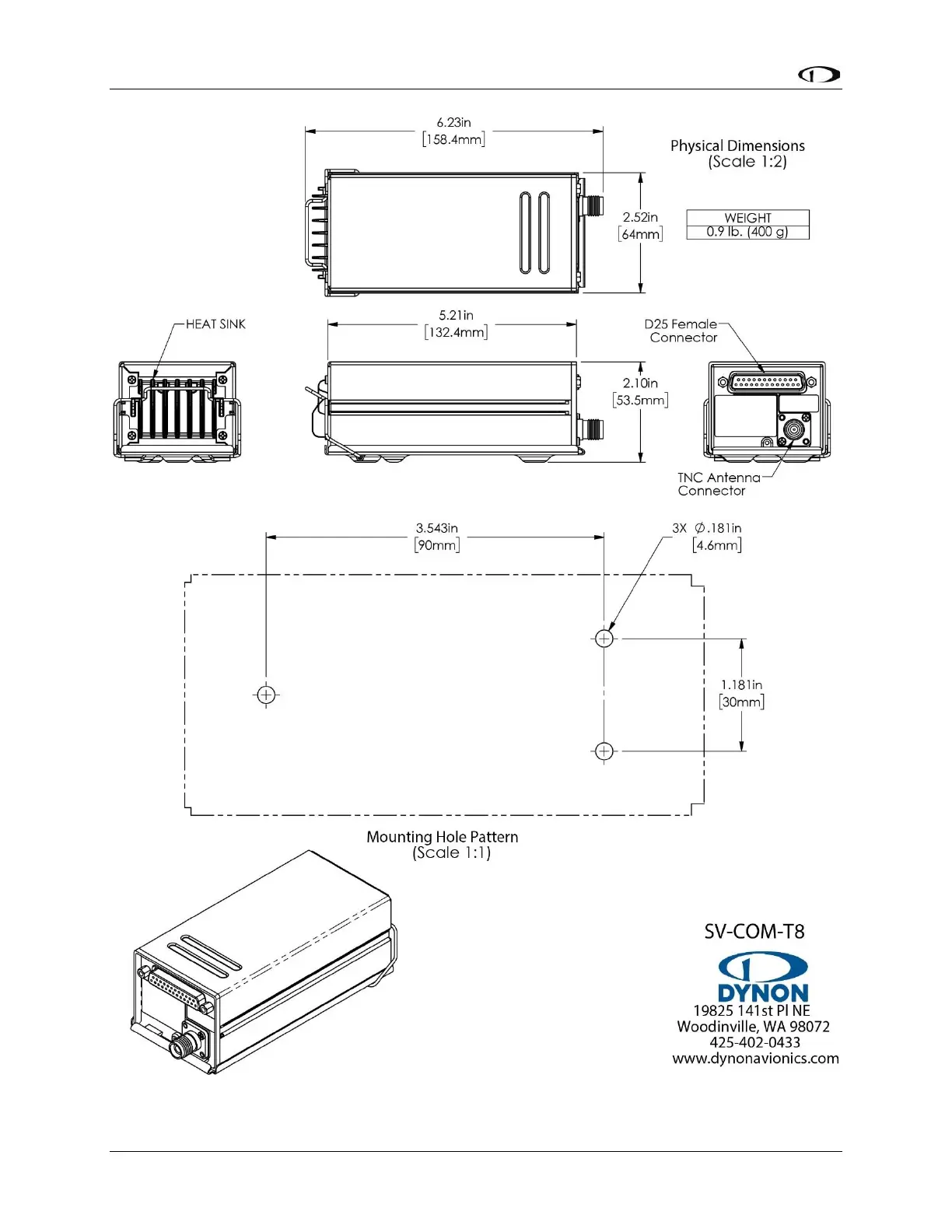

Figure 100: SV-COM-T8 Mounting Dimensions and Electrical Connections (Not to Scale)
