Dynon SkyView HDX - SV-BUTTON-APDISC Mechanical Installation; SV-BUTTON-APDISC Electrical Installation

SV-BUTTON-APDISC Autopilot Disconnect Button Installation
19-2 SkyView HDX System Installation Manual - Revision E
19.2.1.1 Mechanical Installation

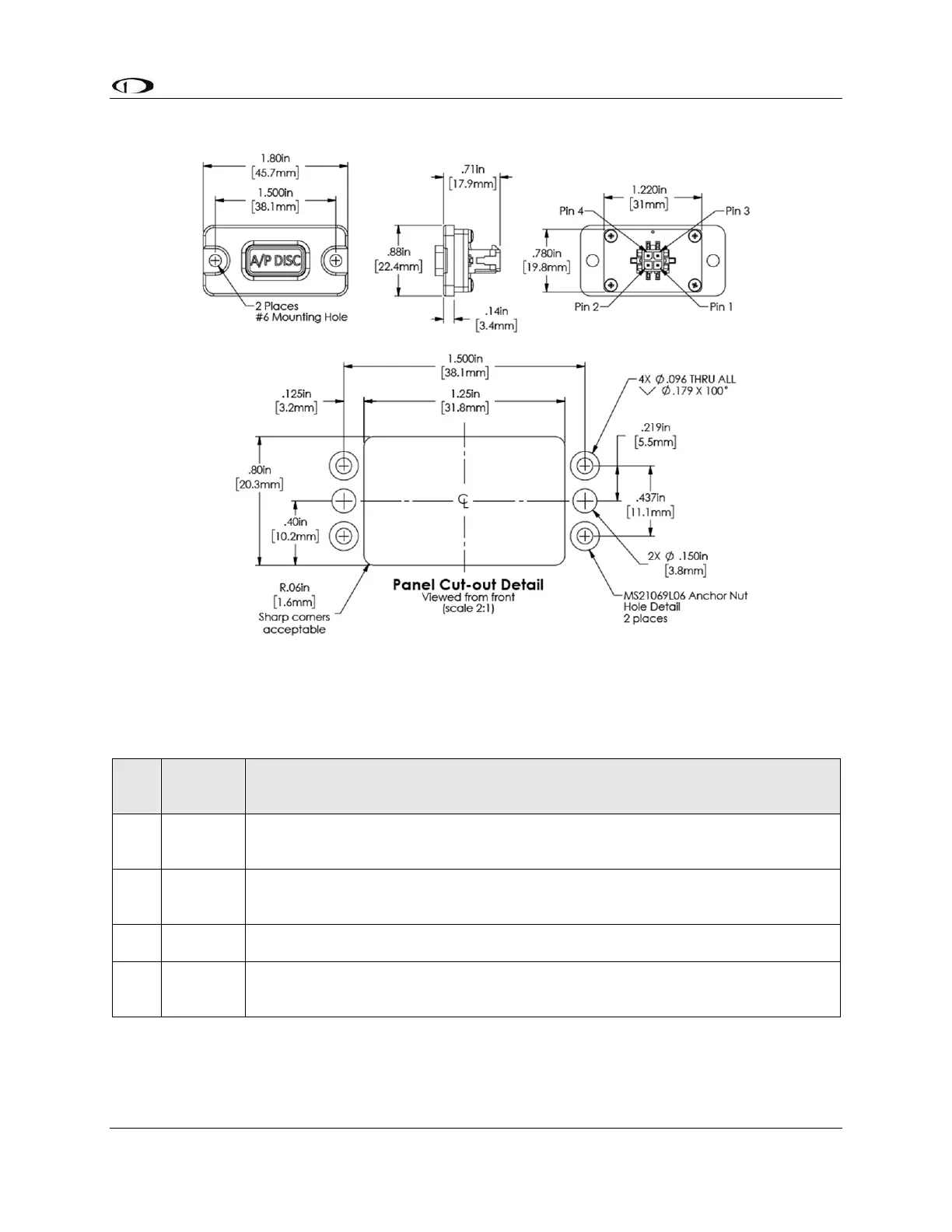

Figure 116: SV-BUTTON-APDISC Mounting Dimensions (Not to Scale)
19.2.1.2 Electrical Installation
Table 44: Connections for SV-BUTTON-APDISC
Pin
Wire
Color
Connection Points / Notes
1
Red
Aircraft Power; connect to same point as SkyView display Power (Red) wires, Pins
1 and 20.
2
White
SkyView Pin 26 – White wire
If you have multiple SkyView displays, connect this wire to only one (1) display.
3
Yellow
Servo Disengage (D9M Connector Pin 3)
4
Black
Aircraft Ground; connect to the same point as SkyView display Ground (Black)
wires, Pins 21 and 22.
