5/6
5. Operation sequence
55220
55220
Paper advance operation
7. Arm unit 1 releases pressure.
• Paper hold motor: ON (released)/OFF
When the paper hold sensor does not turn light:
• ☞ No. 06101-00002
Paper Hold Motor operation error.
8. When the exposure start sensor turned light from dark, arm unit 1 moves to the paper receiving
standby position.
• Paper supply arm motors (right and left): ON (reverse)/OFF
When zigzagging correction sensors (right and left) do not turn light:
• ☞ No. 06135-00002
Arm Unit 1 operation error.
When the exposure start sensor does not turn light:
• ☞ No. 06209-00001
Paper has jammed in the Exposure Advance Unit.

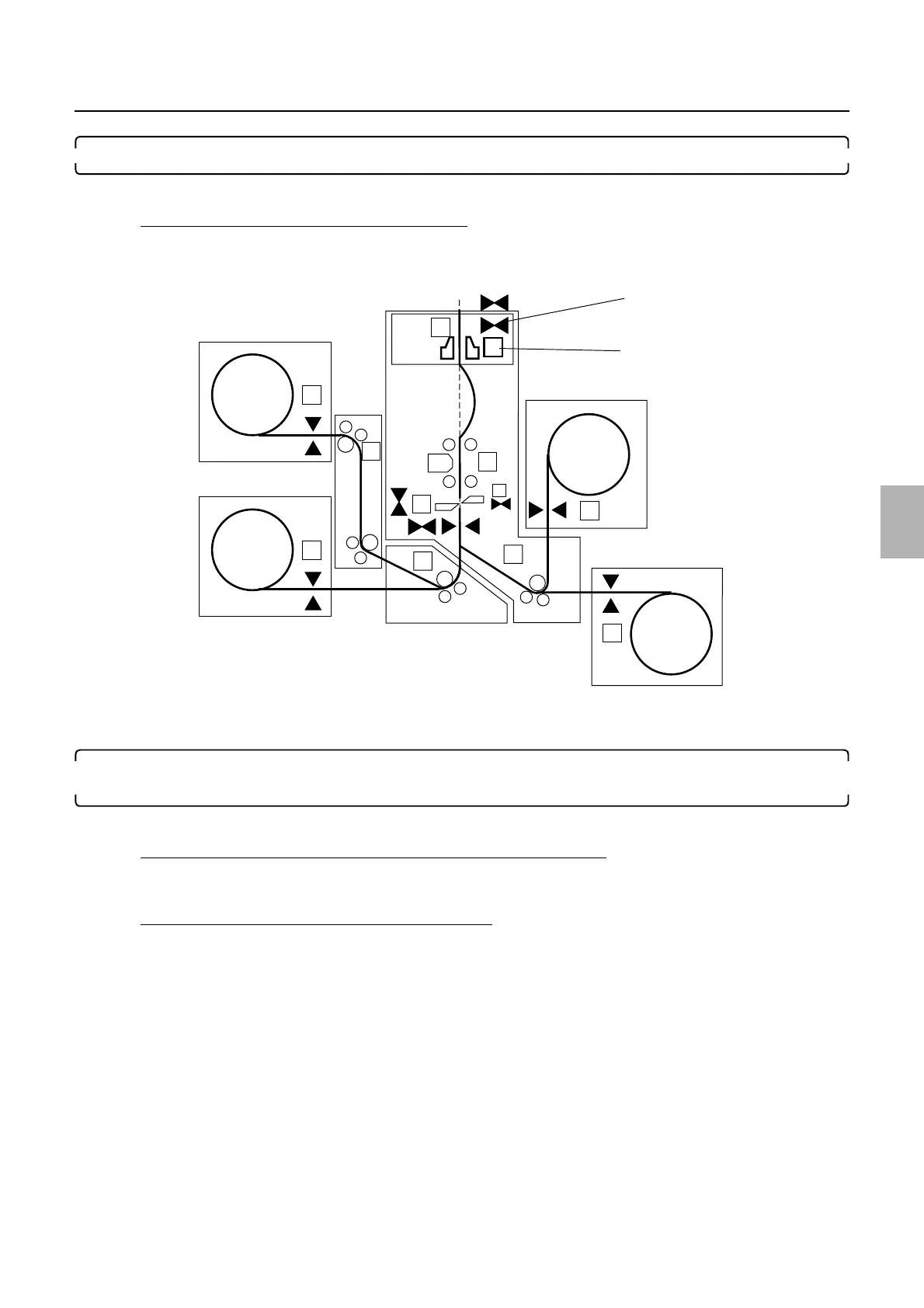

Paper hold motor
Note: The thick solid line indicates the paper.
Paper hold sensor
G069830
