Frontier LP7700 - Page 737

2/3
5. Operation sequence
56600
56600

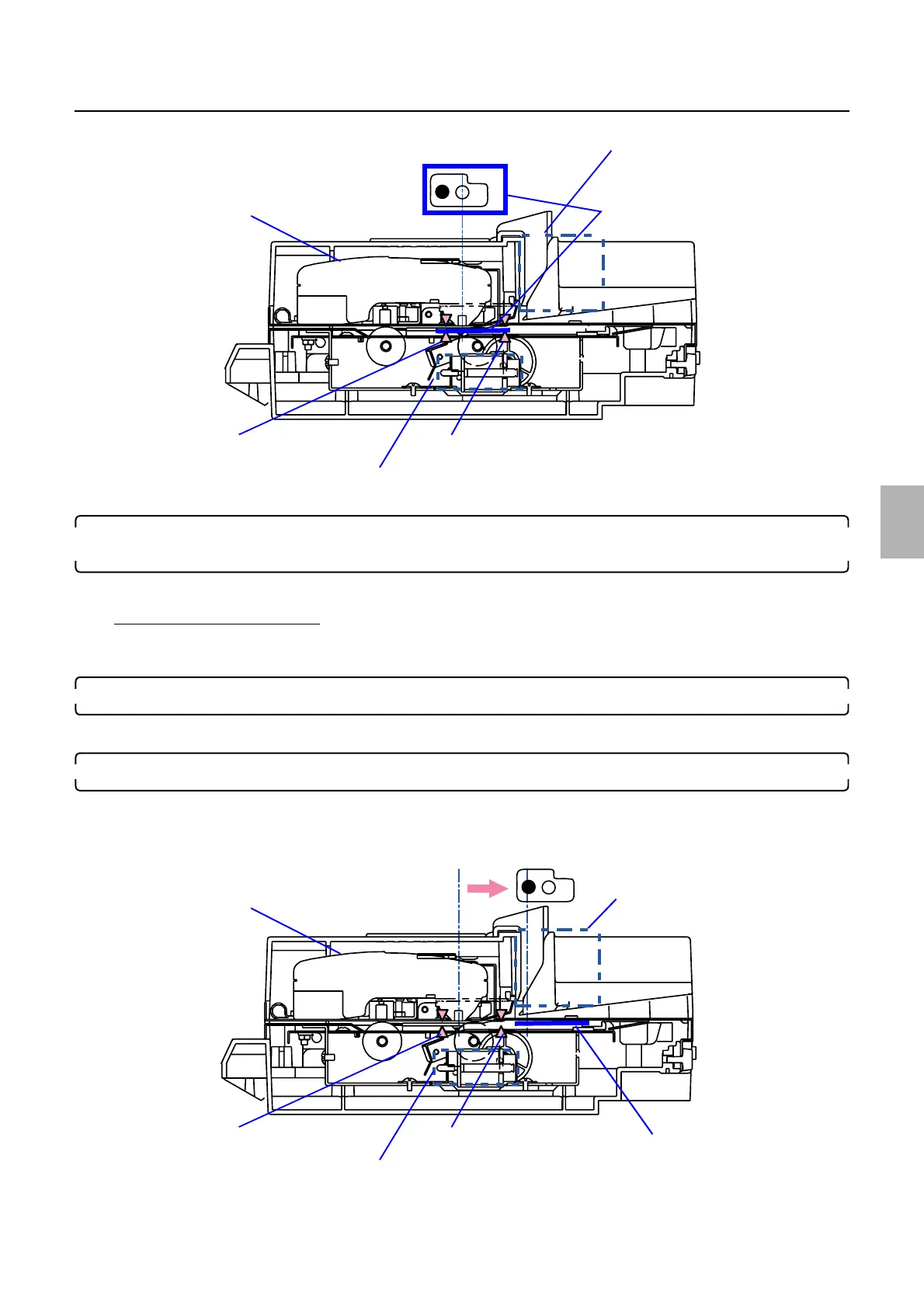

Colorimeter unit operation
4. Shifts the calibration plate for a specified length and stop it at the measuring position White of the
calibration plate.
• Calibration plate advance motor: ON (forward)/OFF
If paper sensor 1 turns LIGHT
• ☞No. 06554-00004
Calibration Plate advance error.
5. Applies pressure to the White of the calibration plate, and measure the density.
• Pressure solenoid: OFF/ON
6. The calibration plate starts to move to the standby position.
• Calibration plate advance motor: ON (reverse)
Paper sensor 1
Pressure solenoid
Paper sensor 2
Measuring position
Colorimeter
Calibration plate advance motor
Calibration plate
G085217
Paper sensor 1
Pressure solenoid
Paper sensor 2
Measuring position
Colorimeter
Calibration plate advance motor
Calibration plate
Standby position
G085218
