Replenishment operation sequence [F]
12. The system opens the P1R cartridge flushing valve for a certain period of time to clean the cartridge, then
closes the P1R cartridge flushing valve.
• P1R cartridge flushing valve: ON/OFF
13. The system opens and cleans the P2RA cartridge flushing valve for a certain period of time, then closes it.
• P2RA cartridge flushing valve: ON/OFF
• P2RA (Upper) Replenishment Solution Level Sensor: OFF→ON
If P2RA (Upper) Replenishment Solution Level Sensor does not turn on
• ☞No. 05910[F]Cartridge cleaning valve cleaning valve is abnormal. P2RA
NOTE
• No error message appears when the replenishment solution is created in the Processor Standard Setting→Processor
Set Up Mode→Mixing Replenisher mode.
• No error message appears when the replenishment solution is created in the Processor Setting→Pump Output
Amount Setting→Mixing Replenisher mode.
14. The system opens the P2RB cartridge flushing valve for a certain period of time to clean the cartridge,
then closes the valve.
• P2RB cartridge flushing valve: ON/OFF
• P2RB (Upper) Replenishment Solution Level Sensor: OFF→ON
If P2RB (Upper) Replenishment Solution Level Sensor does not turn on
• ☞No. 05911[F]Cartridge cleaning valve cleaning valve is abnormal. P2RB
NOTE
• No error message appears when the replenishment solution is created in the Processor Standard Setting→Processor
Set Up Mode→Mixing Replenisher mode.
• No error message appears when the replenishment solution is created in the Processor Setting→Pump Output
Amount Setting→Mixing Replenisher mode.
SE60
SE61
SE62
P17
MV8
MV9
MV10
MV7
MV4
MV5
MV6
P2RAP1R
PSR
P2RA
P1R
P2RB
P2RB
SE63
SE64
SE65
SE66
SE67
SE68
LSE7
LSE8

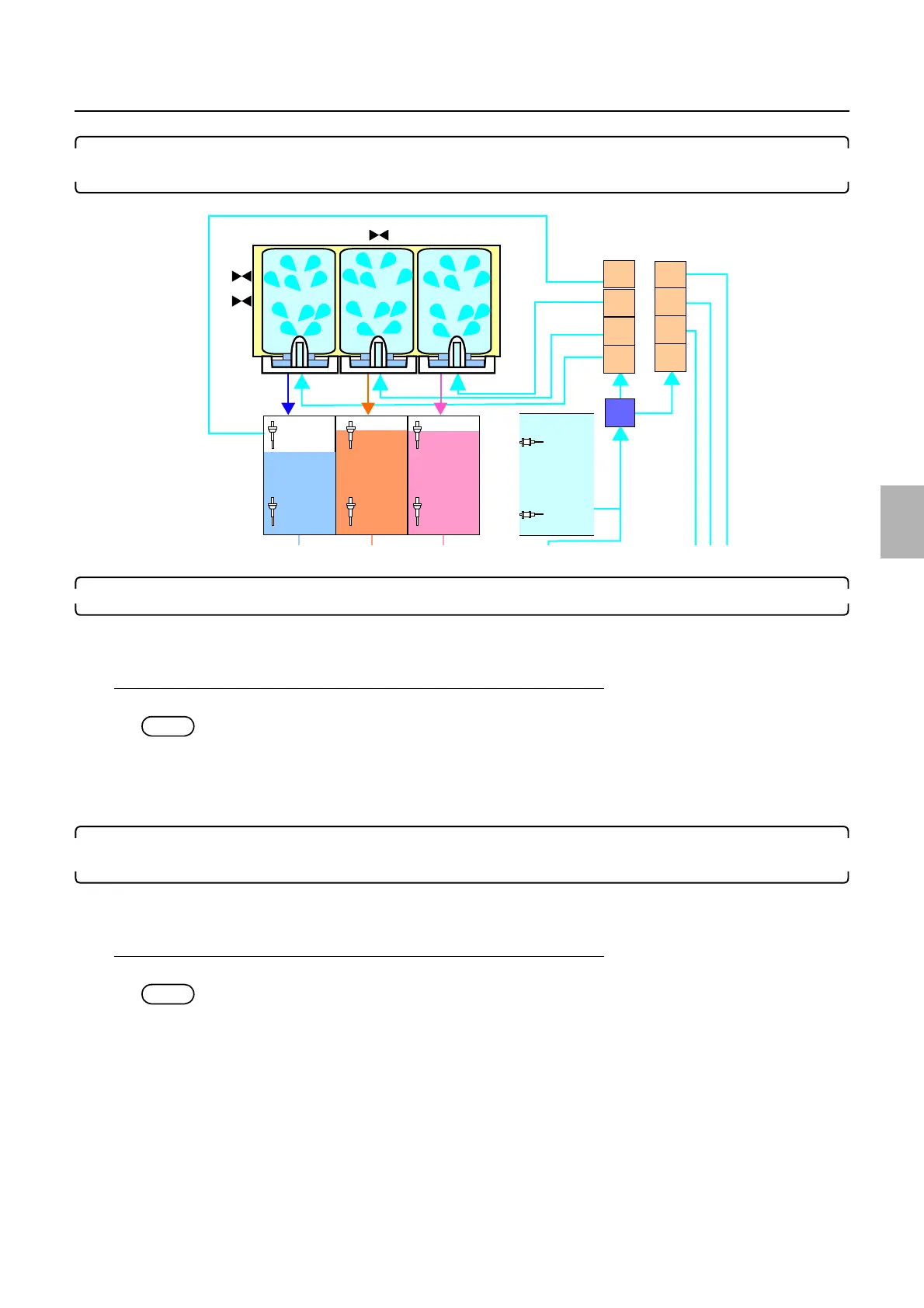

Replenishment
cartridge
Replenisher tank
G085083
