5. Operation sequence
57010
6/8
57010

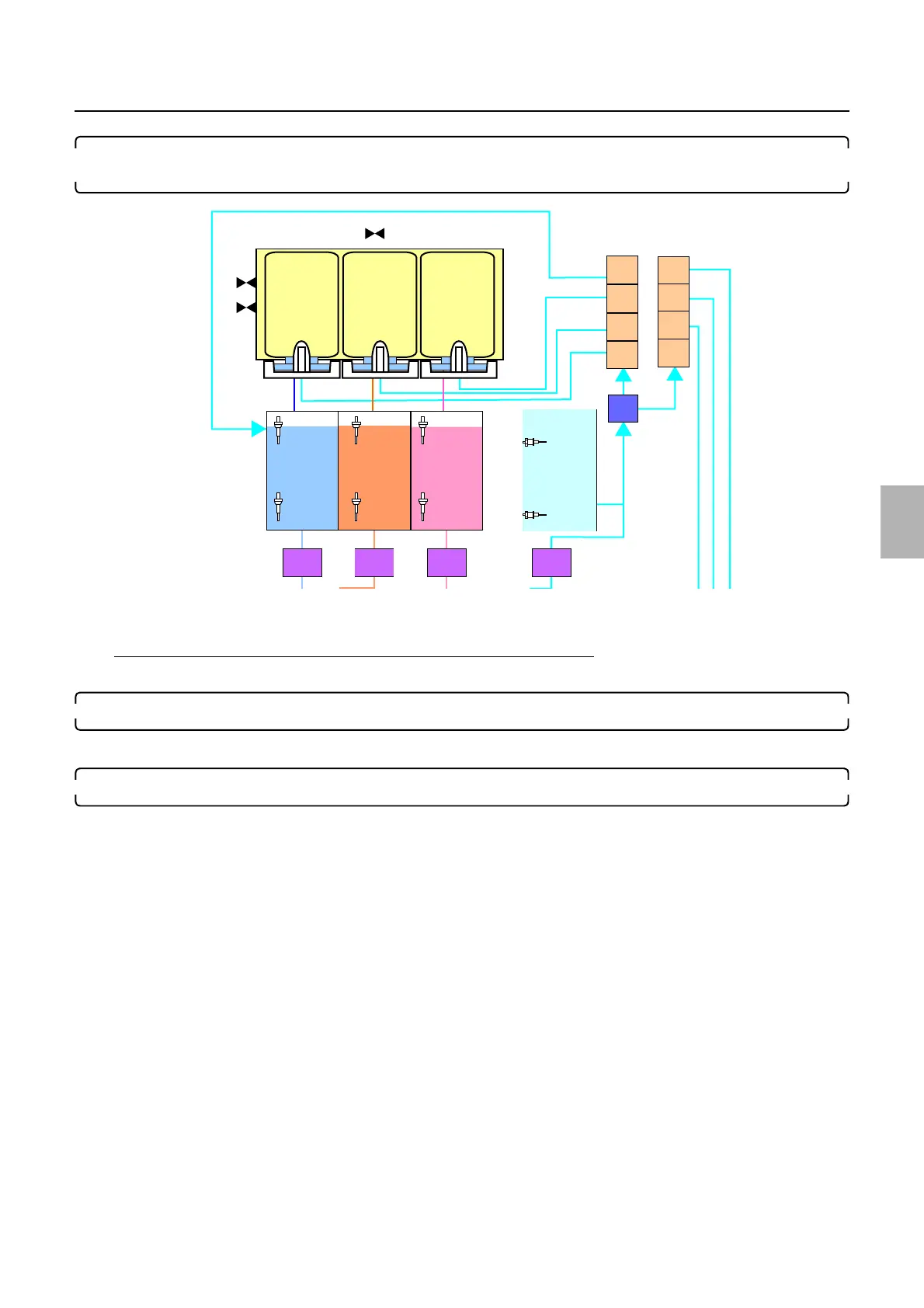

Replenishment operation sequence [F]
15. The system opens the P1R agitation solenoid valve, agitates P1R replenishment solution for a certain
period of time, and closes the valve.
• P1R cartridge flushing valve: ON/OFF
• P1R (Upper) Replenishment Solution Level Sensor: OFF→ON
If P1R (Upper) Replenishment Solution Level Sensor does not turn on
• ☞No. 05909[F]Cartridge cleaning valve/Agitation solenoid valve is abnormal. P1R
16. Stops the Replenishment cartridge cleaning pump.
• Replenishment cartridge cleaning pump: ON → OFF
17. P1R/P2RA/P2RB (upper) replenishment solution level sensors detect all replenishment solution.
• If creating the replenishment solution with the replenishment tank completely empty, the replenishment solution is not filled
up until P2RA (Upper) Replenishment Solution Level Sensor and P2RB (Upper) Replenishment Solution Level Sensor turn
on.
Therefore, no error message appears if P2RA (Upper) Replenishment Solution Level Sensor/P2RB (Upper) Replenishment
Solution Level Sensor does not turn on the condition that the replenishment solution is created in the Processor Standard
Setting → Processor Set Up Mode → Mixing Replenisher or Processor Setting → Pump Output Amount Setting →
Mixing Replenisher mode.
SE60
SE61
SE62
P17
MV8
MV9
MV10
MV7
MV4
MV5
MV6
P2RAP1R
PSR
R
P
2R
P
3R
P
4
P2RA
P1R
P2RB
P2RB
R
P
1
SE63
SE64
SE65
SE66
SE67
SE68
LSE7
LSE8
Replenishment
cartridge
Replenisher tank
G085084
