7/8
5. Operation sequence
57010
57010

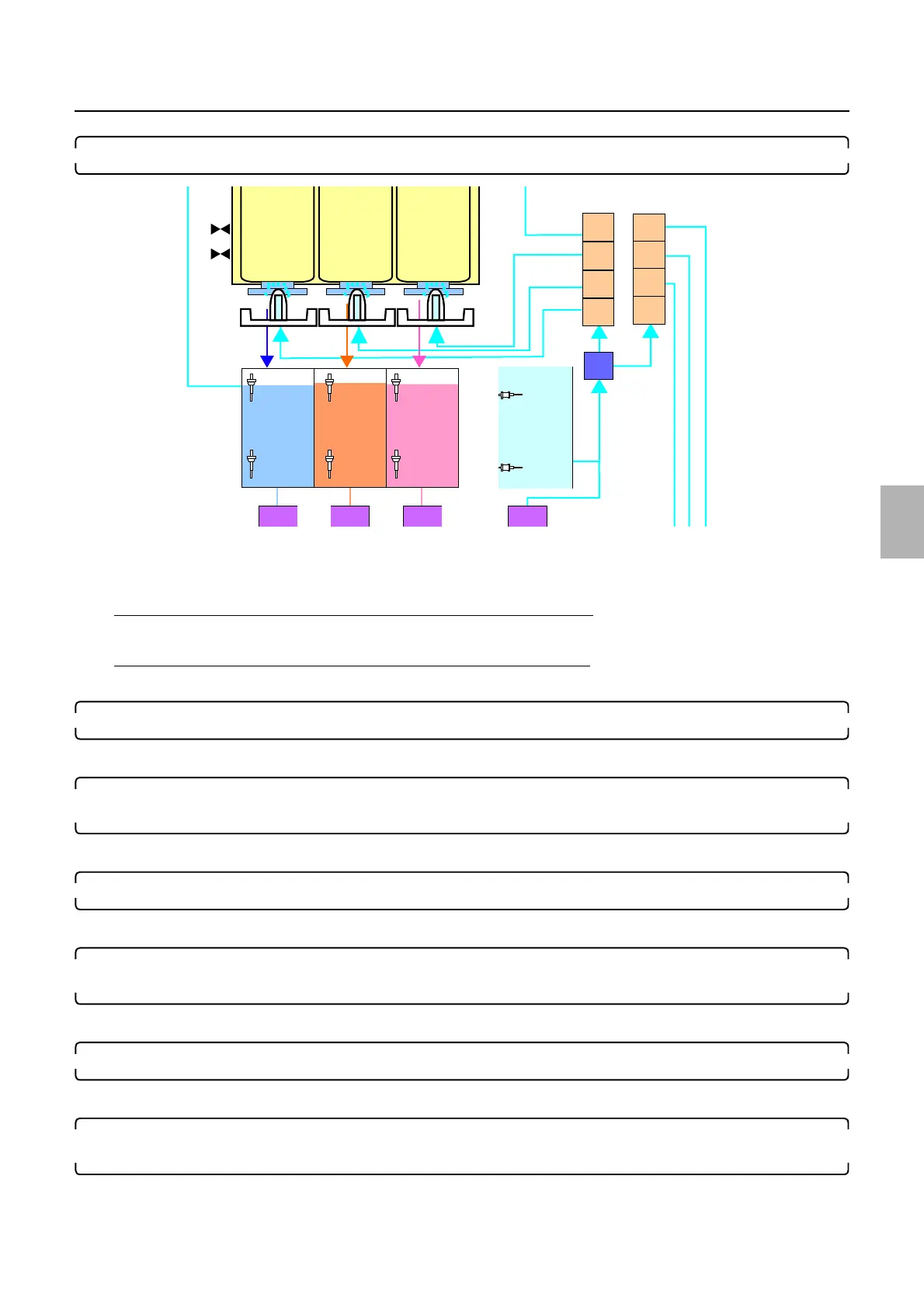

Replenishment operation sequence [F]
18. The replenish cartridge moves to the cap cleaning position (upper position).
• Replenisher Cartridge Open Motor: ON → OFF
• Replenisher Cartridge Position Sensor (Lower): DARK → LIGHT
• Replenisher Cartridge Position Sensor (Upper): LIGHT → DARK
If Replenisher Cartridge Position Sensor (Lower) does not turn LIGHT
• ☞No. 05900[F]−0007Replenisher cartridge open motor operation error.
If Replenisher Cartridge Position Sensor (Upper) does not turn DARK
• ☞No. 05900[F]−0008Replenisher cartridge open motor operation error.
19. The system operates the replenishment cartridge cleaning pump.
• Replenishment cartridge cleaning pump: ON
20. The system opens the P1R cartridge flushing valve for a certain period of time to clean the cartridge, then
closes the P1R cartridge flushing valve.
• P1R cartridge flushing valve: ON/OFF
21. The system opens and cleans the P2RA cartridge flushing valve for a certain period of time, then closes it.
• P2RA cartridge flushing valve: ON/OFF
22. The system opens the P2RB cartridge flushing valve for a certain period of time to clean the cartridge,
then closes the valve.
• P2RB cartridge flushing valve: ON/OFF
23. Stops the Replenishment cartridge cleaning pump.
• Replenishment cartridge cleaning pump: OFF
24. The replenishment cartridge moves from the cap cleaning position (upper position) to the lower position to
discharge washing water.
• Replenisher Cartridge Open Motor: ON → OFF
• Replenisher Cartridge Position Sensor (Upper): DARK → LIGHT
SE61
SE62
P17
MV8
MV9
MV10
MV7
MV4
MV5
MV6
P2RAP1R
PSR
RP2 RP3 RP4
P2RA
P1R
P2RB
P2RB
RP1
SE63
SE64
SE65
SE66
SE67
SE68
LSE7
LSE8
Replenishment
cartridge
Replenisher tank
G085134
