Positions of electrical parts (Processor section)
1/4
6. Electrical parts
63280
63280
Positions of electrical parts (Processor section)
Processor section (positions of electrical parts) (QSS-
3701/3702/3703/LP7500/LP7600) [F]
This item varies depending on the specification and model. See the references below.
!
!!

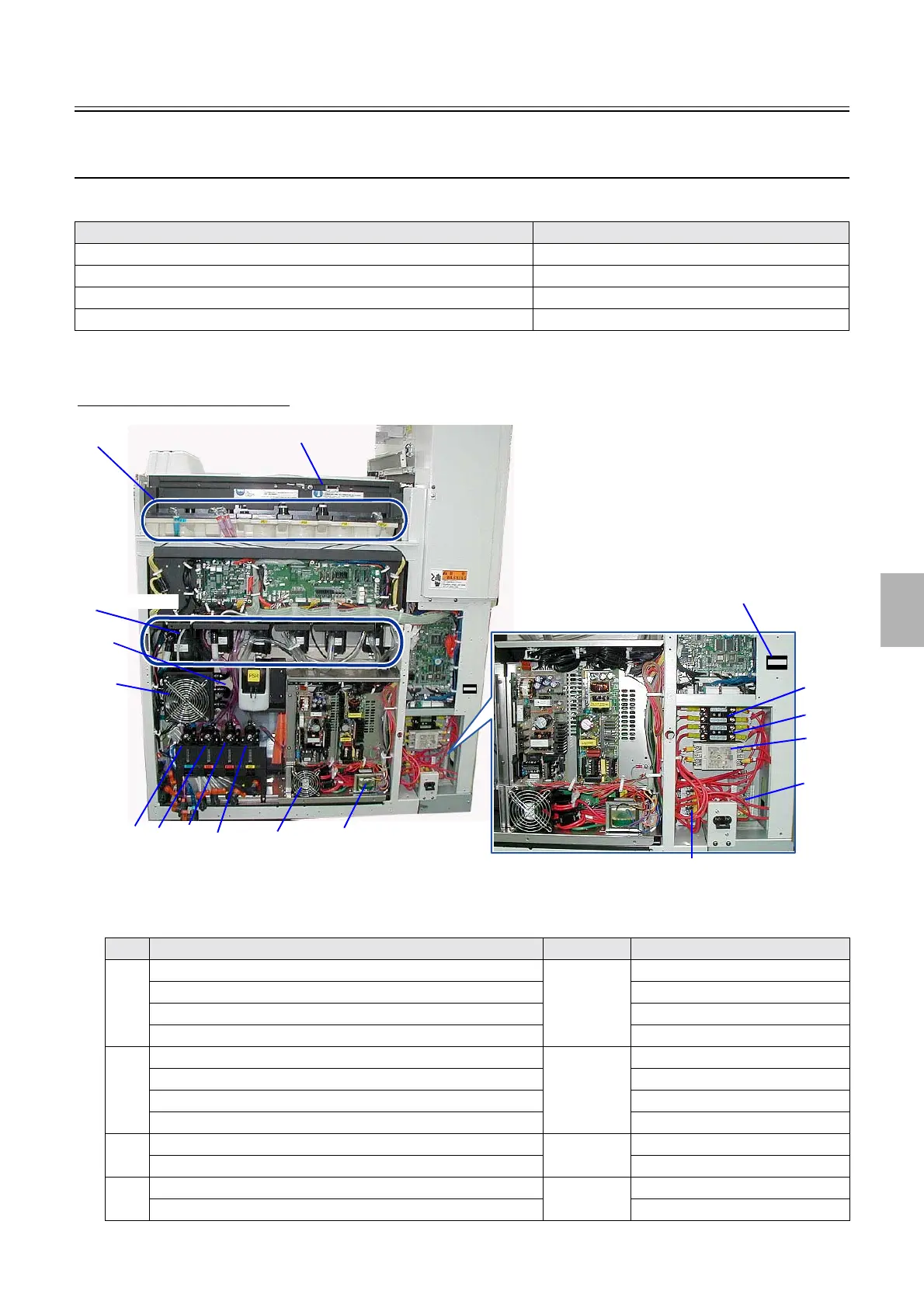

! Layout diagram
Processor section (front face)
Model Reference
QSS-3701/3702/3703[N] ☞63290
QSS-3701/3702/3703 [SM]
☞63300
QSS-3701/3702/3703 [J]
☞63310
QSS-3704/3705/LP7700/LP7900 [F] ☞63311
No. Name Symbol Remarks
1 P1 processing solution float switch FS1
P1 processable level
P1 processing solution level
P1 safety thermostat
2 P2 processing solution float switch FS2
P2 processable level
P2 processing solution level
P2 safety thermostat
3 PS1 processing solution float switch FS3
PS1 processable level
4 PS2 processing solution float switch FS4
PS2 processable level
From 1 to 12
23
13
14
22
24
25
26
21
27
28
29
30
31
32
33
From 15 to 20
QSS-3701/3702/3703/LP7500/LP7600 [F]
G085339
