5.12 PROCOME CONFIGURATION CHAPTER 5: SETPOINTS
Counters
The counters (pulse counters and energy counters) have the same management as the measurements, this is Procome ID,
Identifier, Factor and offset configuration for each of them.

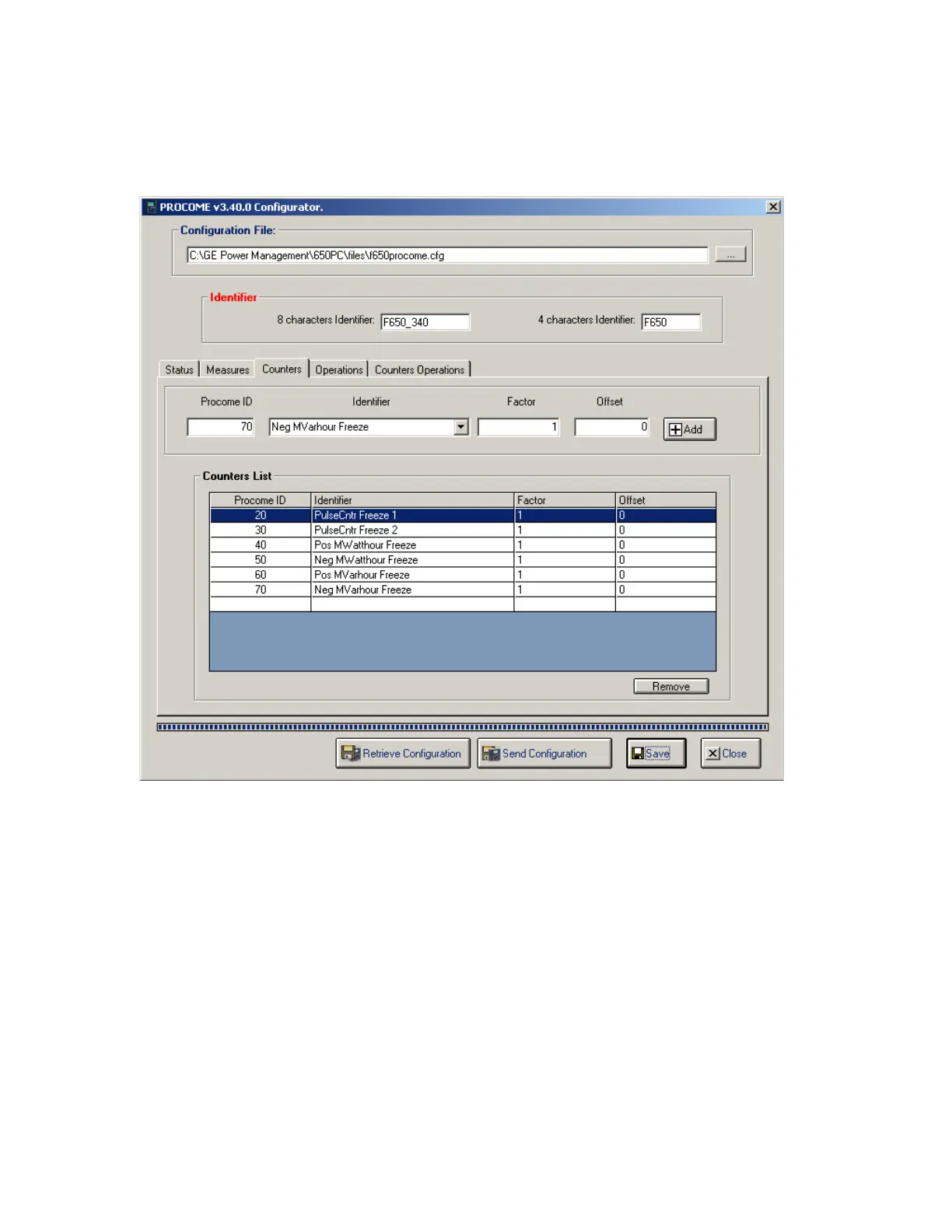

Figure 5-65: Counter configuration
Operations
This operations configuration screen allow the user to configure the Procome number that identifies the command in the
Procome protocol and the "operation bit number" that the slave when the command has DCO_ON and the operation to be
executed when the command is DCO_OFF. The user can set the same operation for DCO_ON and DCO_OFF or a different
one for each status if desired.
The user must select:
• Procome ID (IEC): which is the identification number for each operation
• Ty
pe: type 1 for operation bits.
• Operation
ON: DCO_ON operation bit selection
• Operation
OFF: DCO_OFF operation bit selection
