CHAPTER 7: IEC 61850 PROTOCOL 7.3 IEC 61850 CONFIGURATOR
GEK-106310-AF F650 DIGITAL BAY CONTROLLER 7-223
See detailed information in the Configuration of setting group section of the ICD/CID CONFIGURATION TAB.
COMMUNICATION PARAMETERS
For the communications setting menu in the ICD file for 650 devices it is recommended to leave the default values
provided for the OSI related parameters.

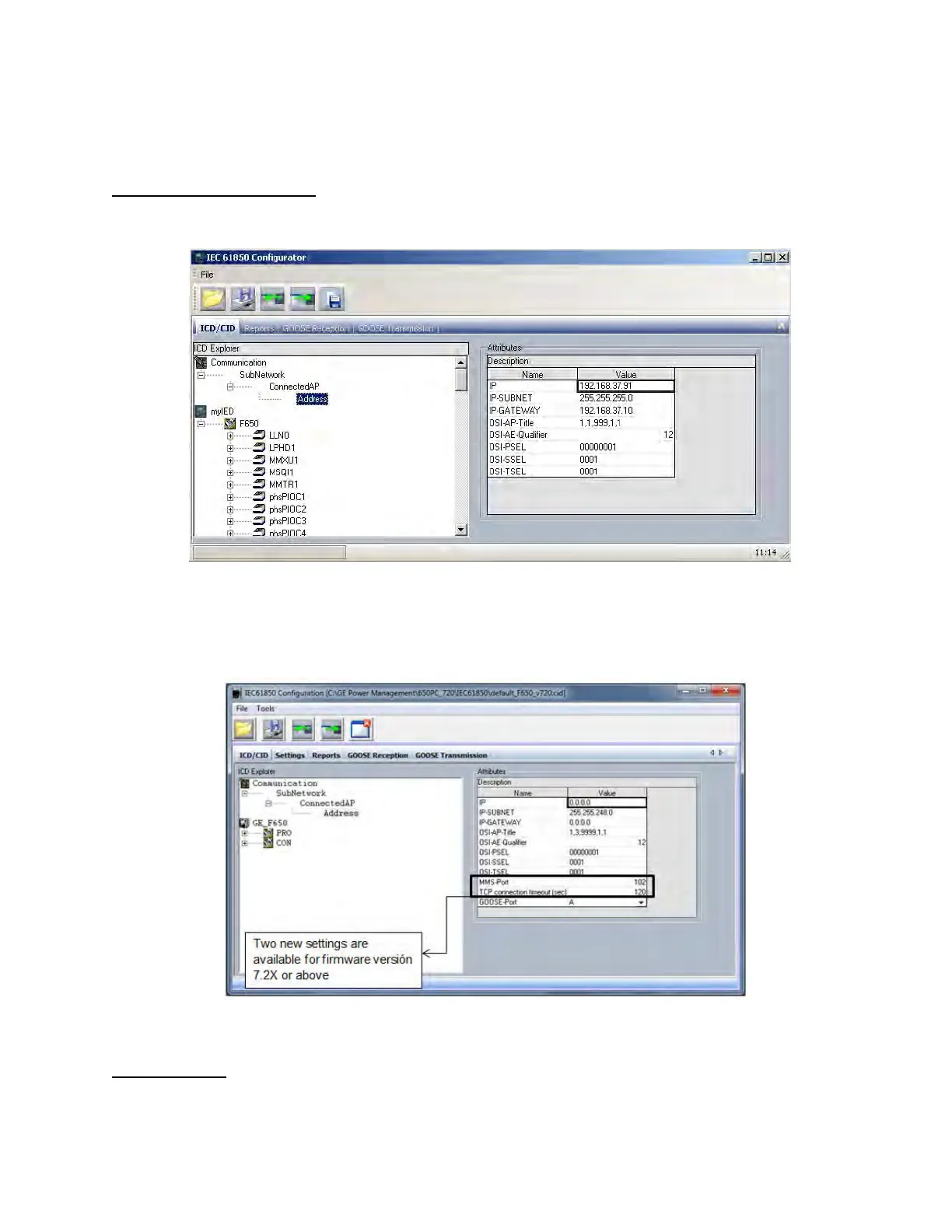

Figure 7-19: Configuration of communication settings
For firmware version 7.00 or higher:
Figure 7-20: Configuration of communication settings (V 7.xx)
LOGICAL DEVICES
To Next Page
