There is a configurable timeout for SBO control modes in XCBR and CSWI logical nodes. The value range for SBO timeout is
500 ms - 60 seconds. The sboClass attribute can only have value "operate-once", "operate-many" pattern is not supported
in IEC 61850 SBO controls in 650 relay.

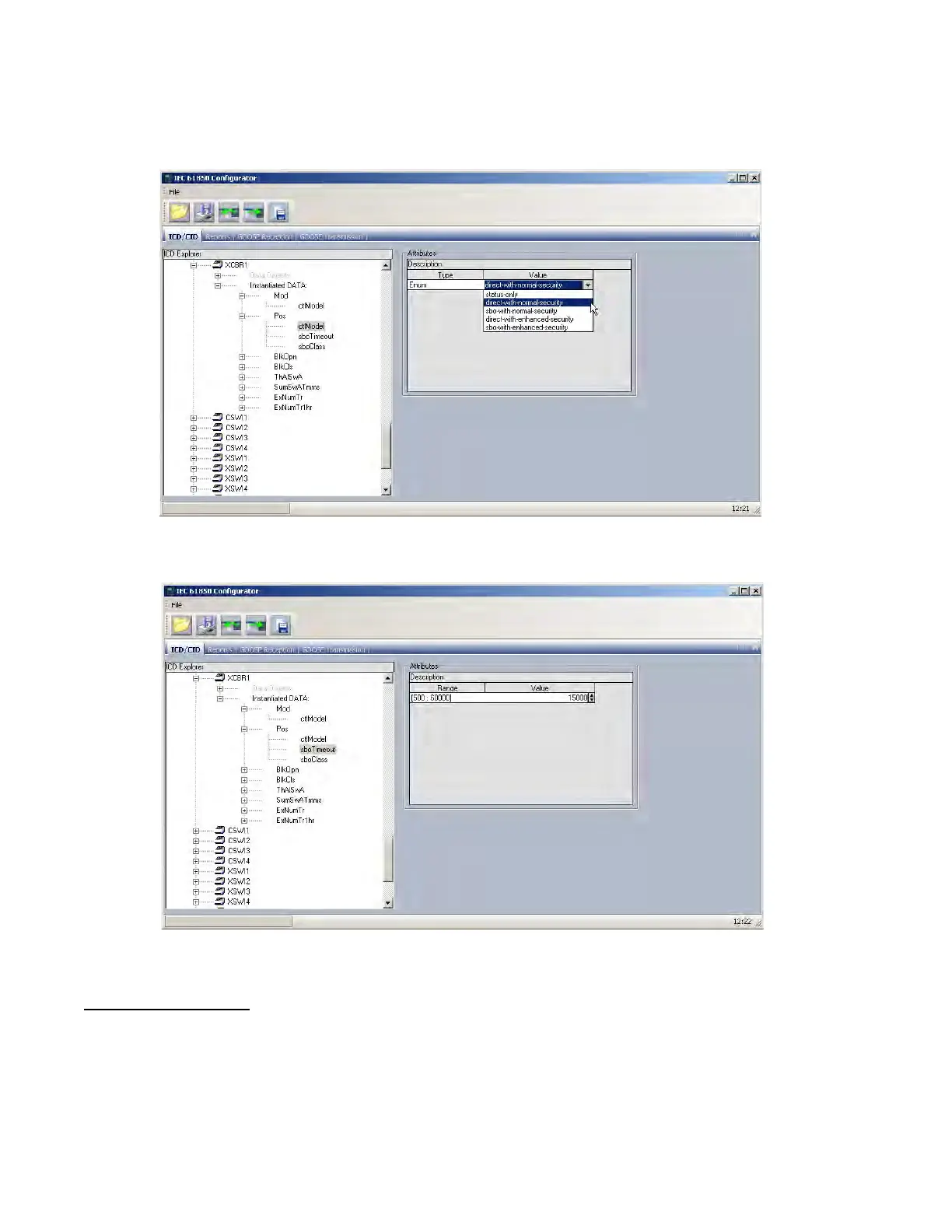

Figure 7-22: Configuration of control model (ctlModel) of Pos Data Object in XCBR Logical Node
Figure 7-23: Configuration of timeout for SBO operation of X
CBR logical Node
EVEGGIO1 LOGICAL NODE
The eveGGIO1 Logical Node is available in the F650 to provide access to as many as 128 digital status points configured as
"Control Events" and to status of 16 switchgear configured as "Switchgears" in "Relay Configuration" menu of EnerVista
650 Setup software. By default no data is configured, the data content must be configured in "Control Events" and
"Switchgears" in Setpoint > Relay Configuration in the main EnerVista 650 Setup program, before it can be used.
