CHAPTER 7: IEC 61850 PROTOCOL 7.3 IEC 61850 CONFIGURATOR
GEK-106310-AF F650 DIGITAL BAY CONTROLLER 7-231
Firmware versions from 7.20 to below 7.50

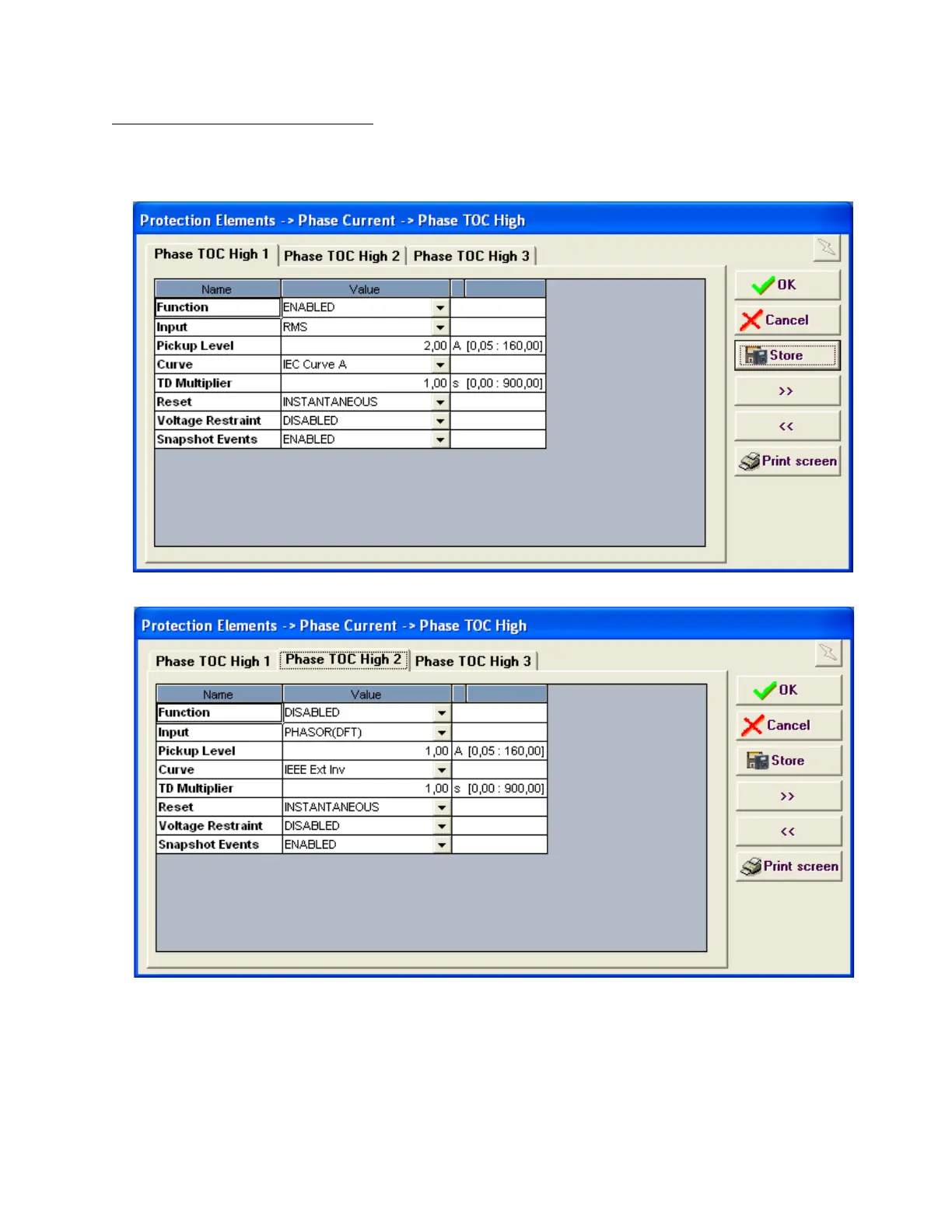

The settings for the groups 1 and 2 of high level of Phase Time Overcurrent protection function are shown in the next
figures.
As it is shown in the figure, the values of the settings of the setting group indicated with the ActSg are the ones with the FC
= SG in Logical Node SGphHiPTOC1, therefore the ones used by the high level of Phase Time Overcurrent protection
function in the relay.
