7.3 IEC 61850 CONFIGURATOR CHAPTER 7: IEC 61850 PROTOCOL

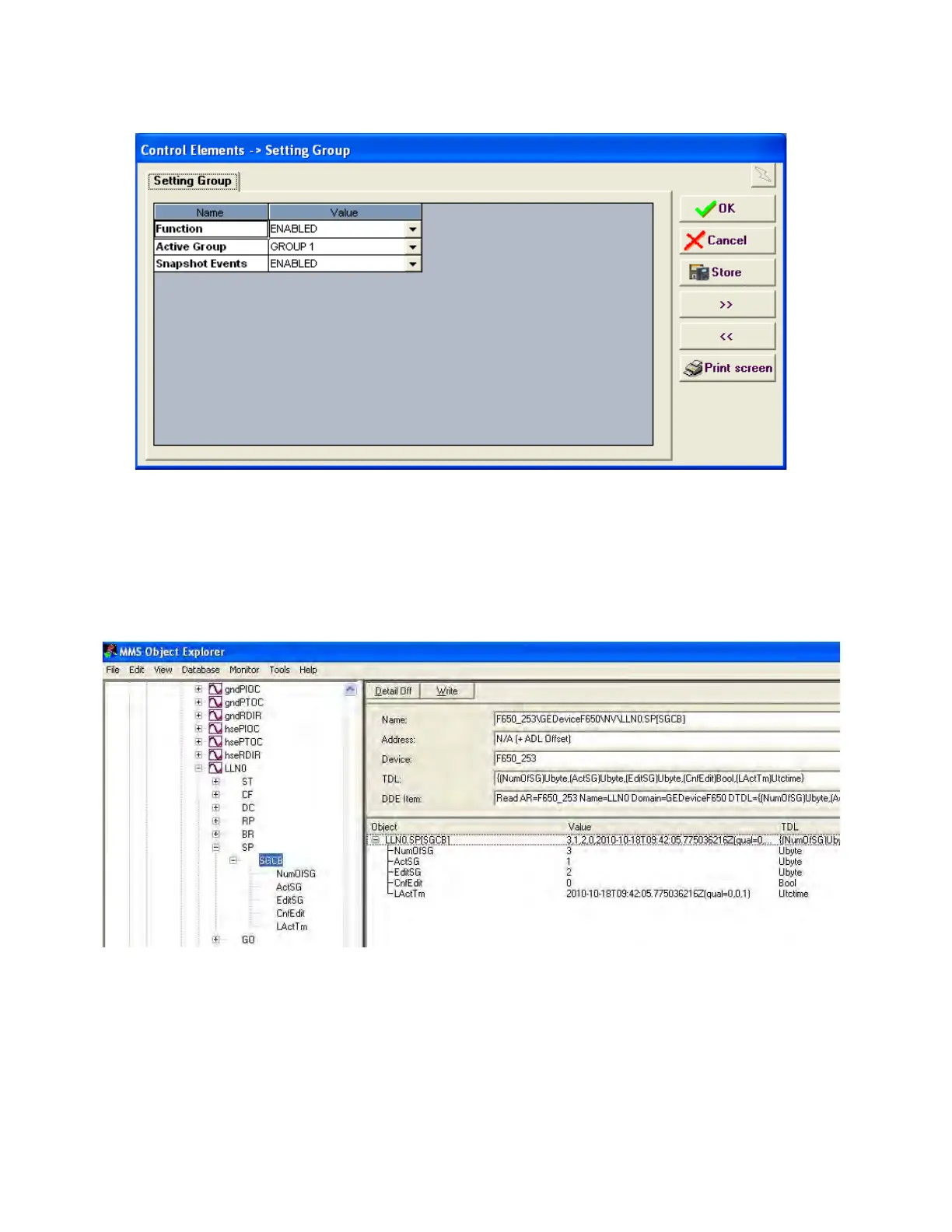

Figure 7-25: Control elements - setting group
The next figure is a capture of an MMS browser where SGCB class attributes are shown and configured, setting ActSG with
the value 1 that corresponds with the first setting group in the F650 relay and EditSG with the value 2 that corresponds
with the second setting group.
Figure 7-26: MMS object explorer
