Click Next to create the structure for the report. You can now add DataSet elements.

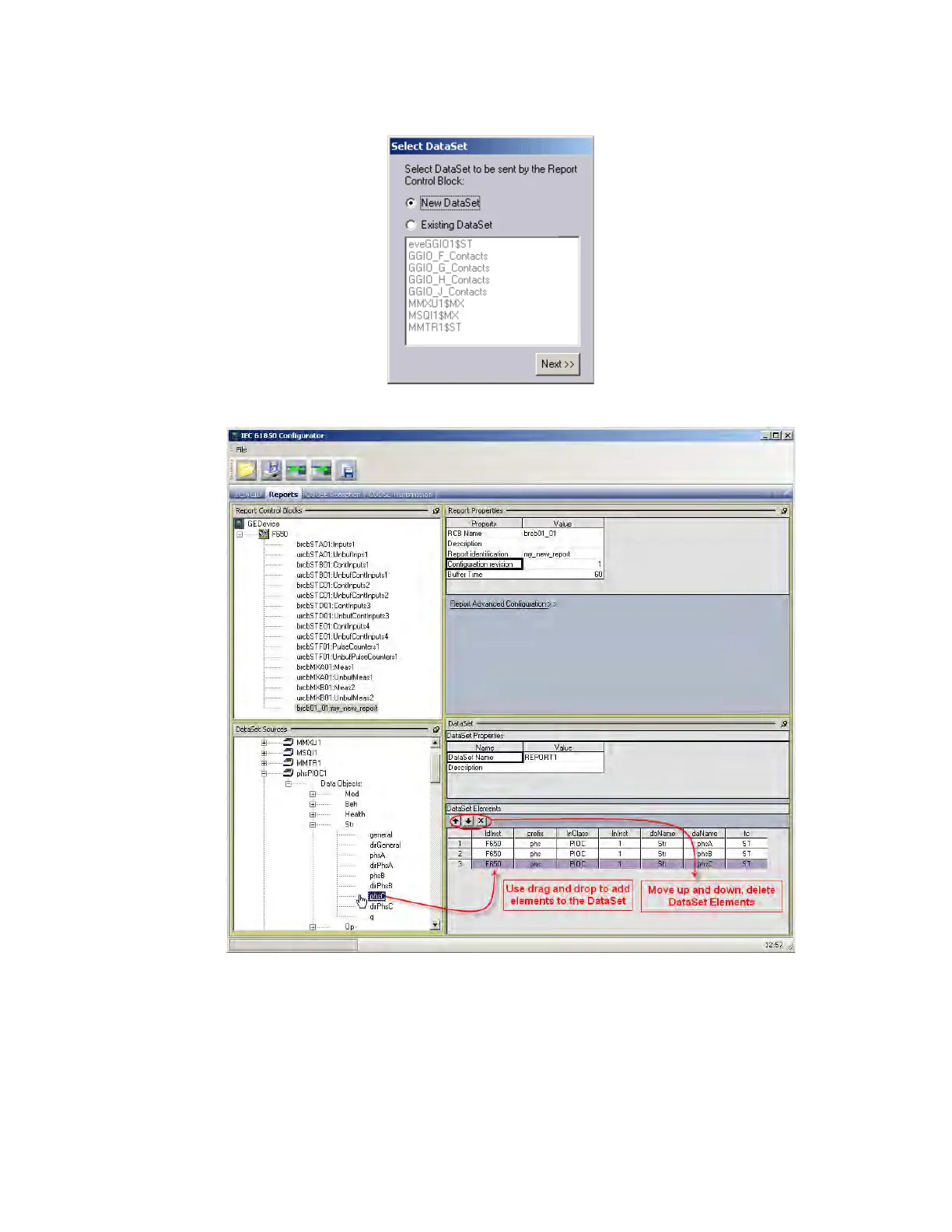

Figure 7-28: Configuration of data set and of report control block
Drag and drop to add elements to the Data Set. In the DataSet Sources panel, browse the complete data model of the IED
and drag and drop the desired element to the Data Set Elements on the right. In the F650 relay, Data Sets for Reports can
contain both Data Attributes (FCDA - Functionally Constrained Data Attributes) and Data Objects (FCD - Functionally
Constrained Data).
