9-6 F650 DIGITAL BAY CONTROLLER GEK-106310-AF
9.1 FIRMWARE UPGRADE VERSIONS BELOW 7.00. CHAPTER 9: BOOTCODE AND FIRMWARE UPGRADE

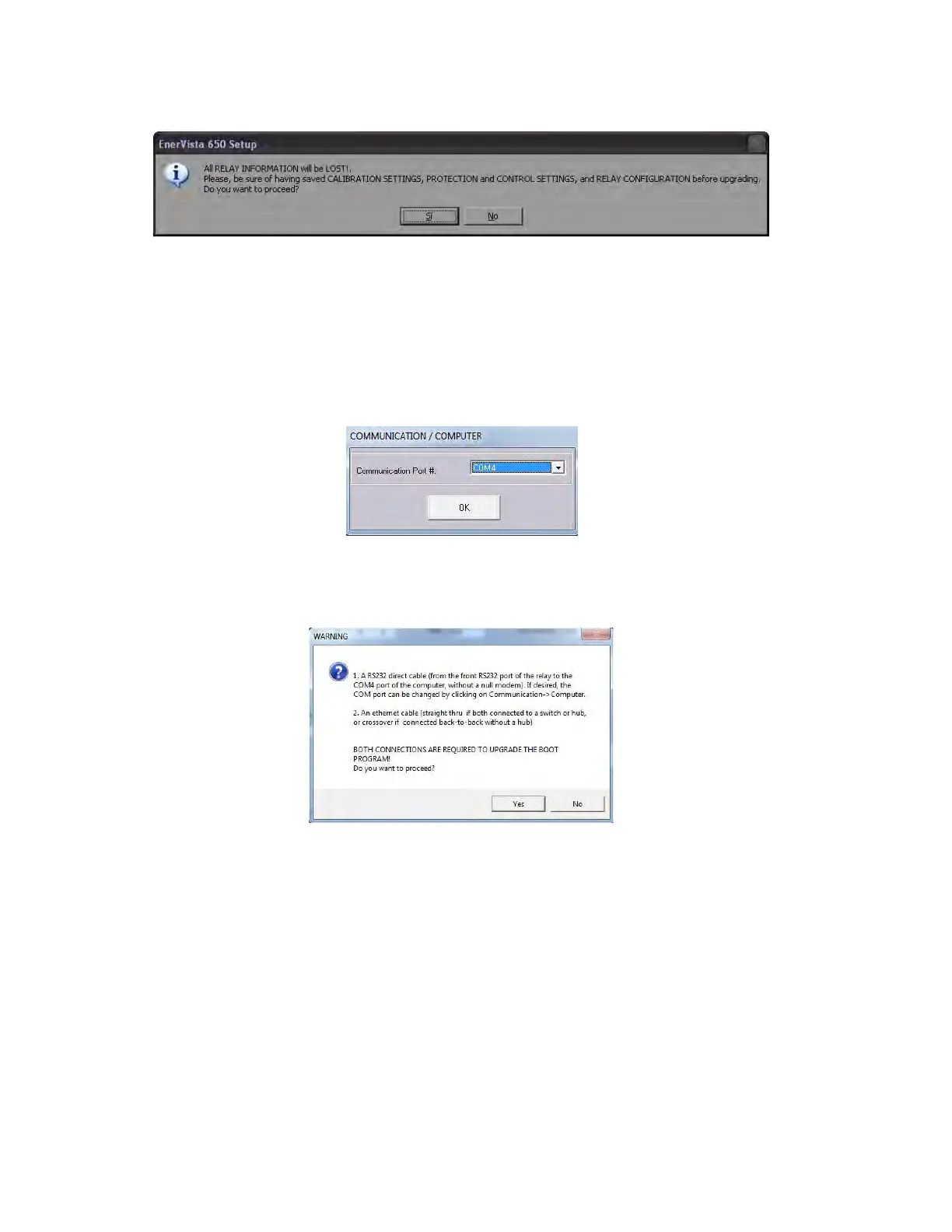

Figure 9-4: Warning message to save setting and configuration files
10. Parameters already set in step 5 are operative during serial comm
unications. If they have not been previously set a
pop up window prompts for the serial COM port to be used during upgrading.
11. During the upgrade, the system shows the following message indicating the procedure to be followed.
If you click Yes, the next window allows you to choose the Network adapter for your Ethernet connection to the relay.
