CHAPTER 9: BOOTCODE AND FIRMWARE UPGRADE 9.1 FIRMWARE UPGRADE VERSIONS BELOW 7.00.
GEK-106310-AF F650 DIGITAL BAY CONTROLLER 9-7

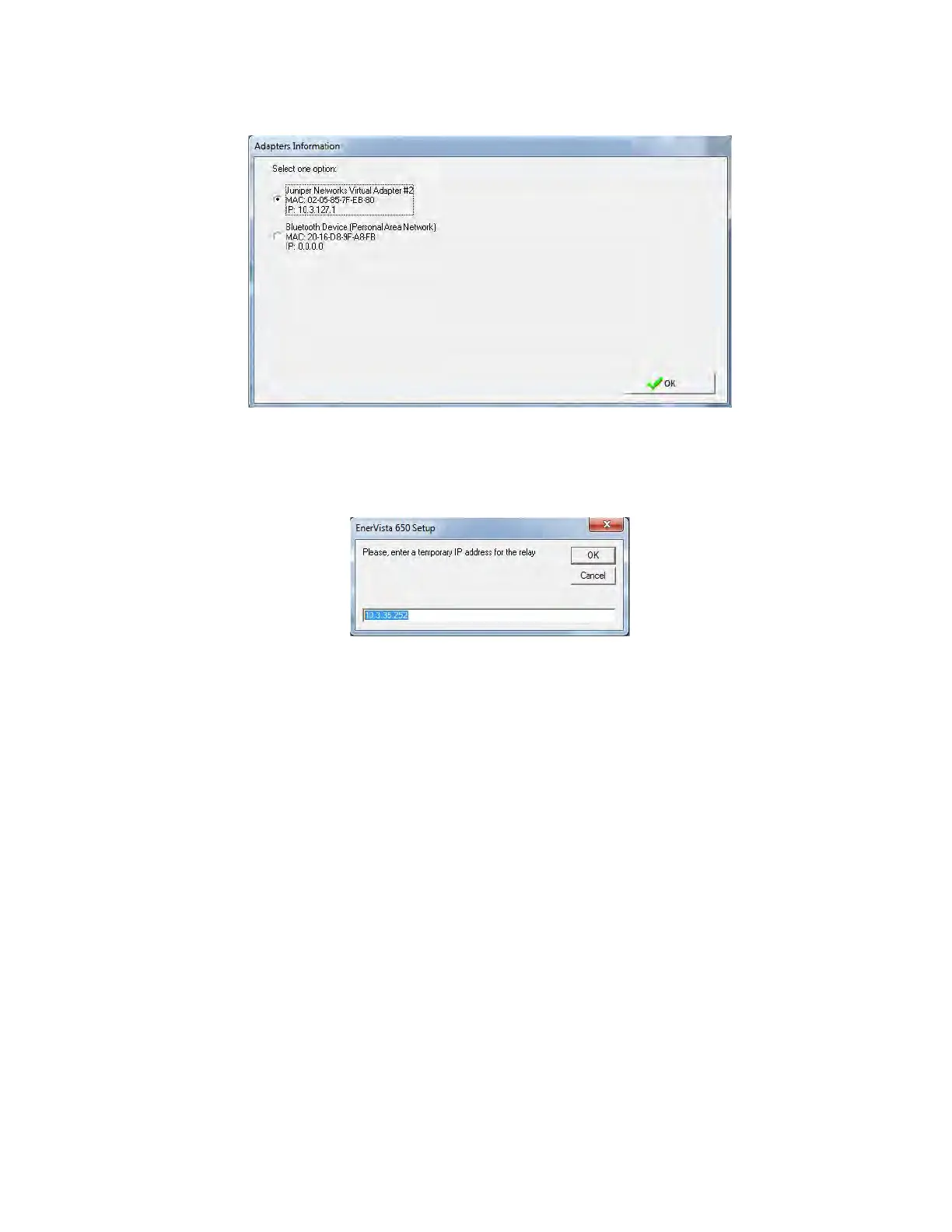

12. After selecting the Network adapter, a window to choose a temporary IP address is shown. It is advisable to set the
same IP address that is going to be used later in the relay for Ethernet connection.
Figure 9-5: setting address
13. After entering the temporary IP Address, the next new window r
equires the bootware file retrieved from
http://www.gegridsolutions.com/index.htm and
previously stored someplace in the PC.
