9-8 F650 DIGITAL BAY CONTROLLER GEK-106310-AF
9.1 FIRMWARE UPGRADE VERSIONS BELOW 7.00. CHAPTER 9: BOOTCODE AND FIRMWARE UPGRADE

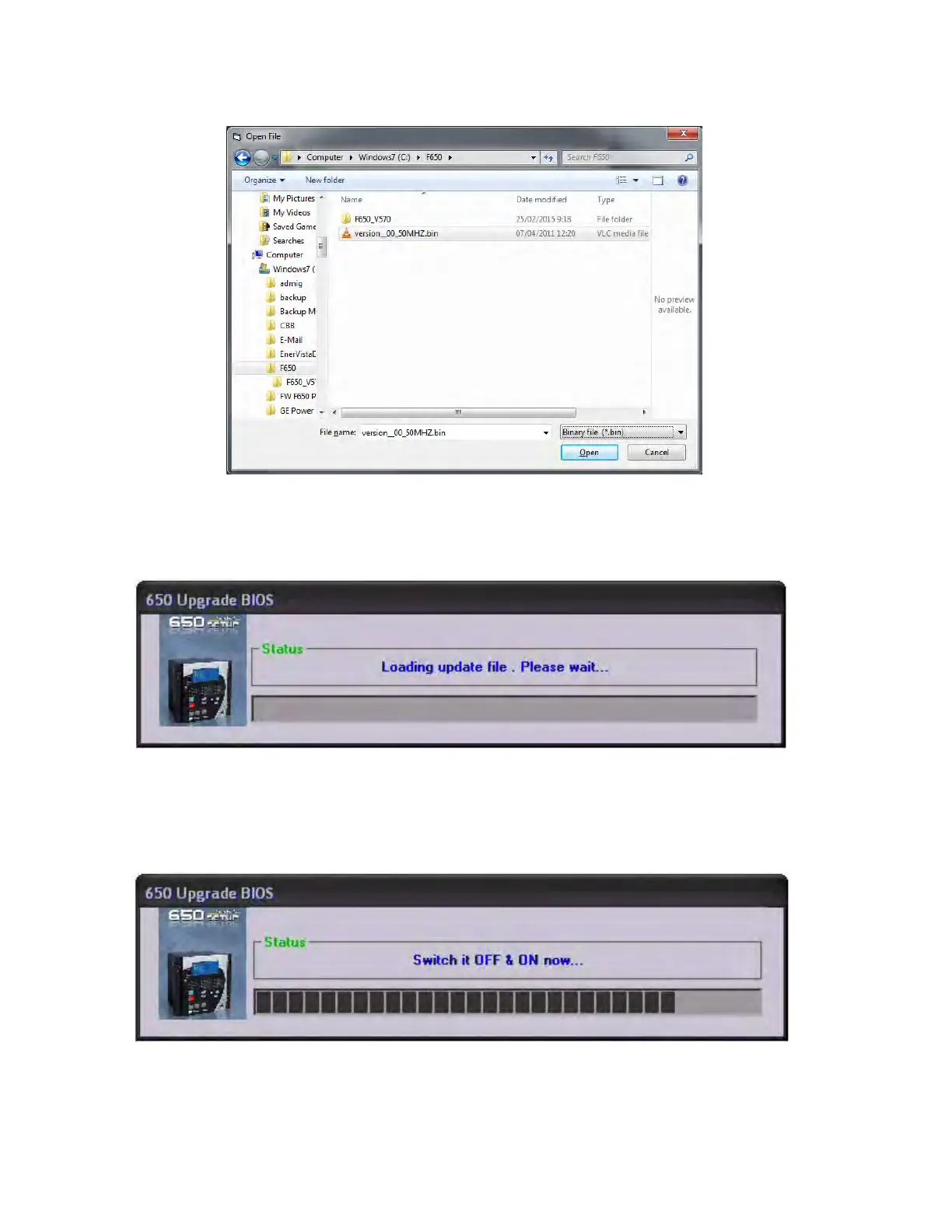

Figure 9-6: Boot code file selection
14. Choose the bootware file and click Open butt
on.
Figure 9-7: Loading boot code file
15. Then the program shows a message requiring switch OFF and ON the relay while the progress bar is in course, to start
t
he upgrading process.
Figure 9-8: Relay switch off-on message
