9-24 F650 DIGITAL BAY CONTROLLER GEK-106310-AF
9.2 FIRMWARE UPGRADE VERSION 7.00 OR ABOVE CHAPTER 9: BOOTCODE AND FIRMWARE UPGRADE

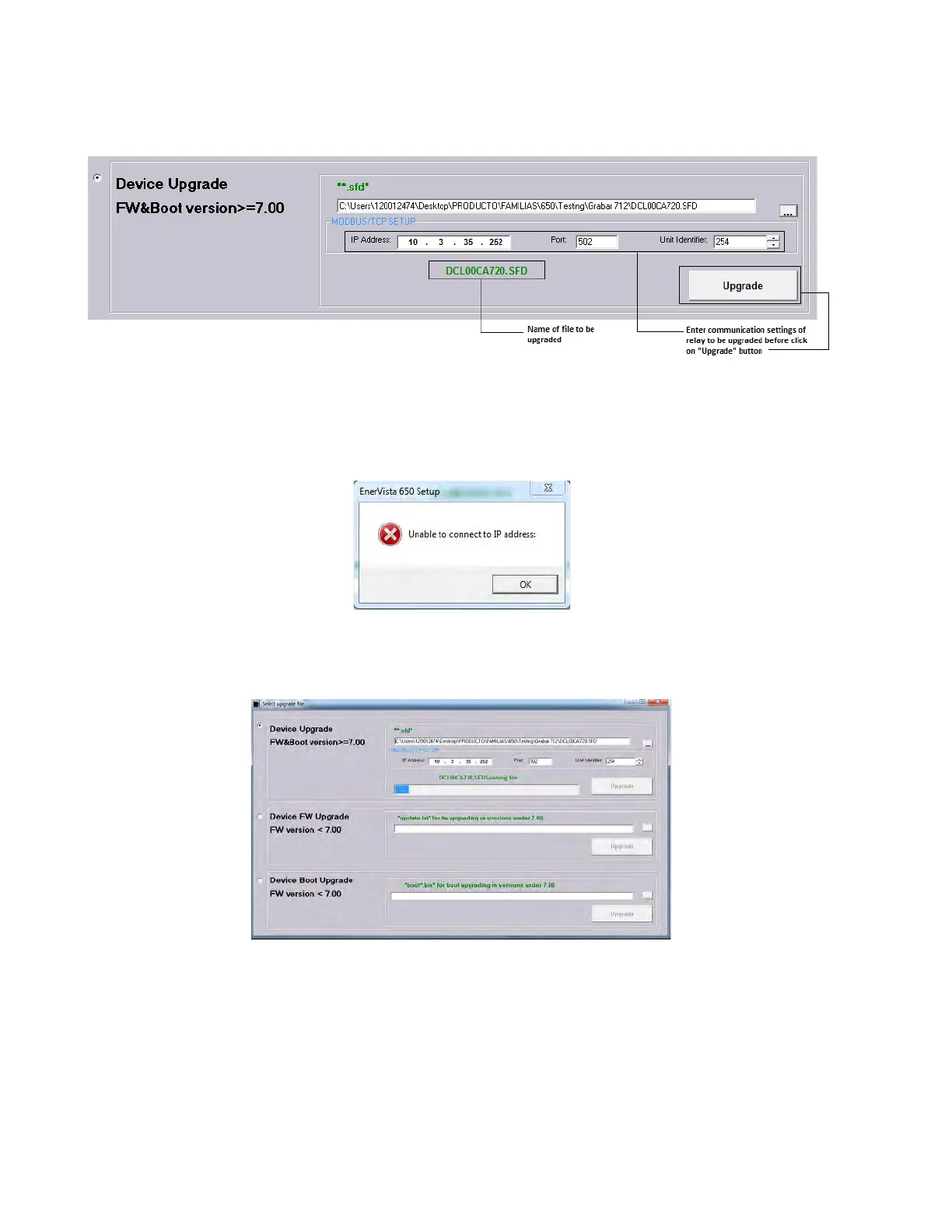

3. Enter communication parameters for the relay being upgraded and click Upgrade.
Figure 9-1: Relay communication parameters
If the IP address is incorrect one, the following message is shown:
4. If the IP address is correctly set, then the message "*.SFD Sending file" is displayed. A sending file status bar shows the
progress of the upgrade.
5. If the file is not sent successfully, the following message box is displayed.
